| Technical Data | ||
|---|---|---|
| Brand | AchieVe | |

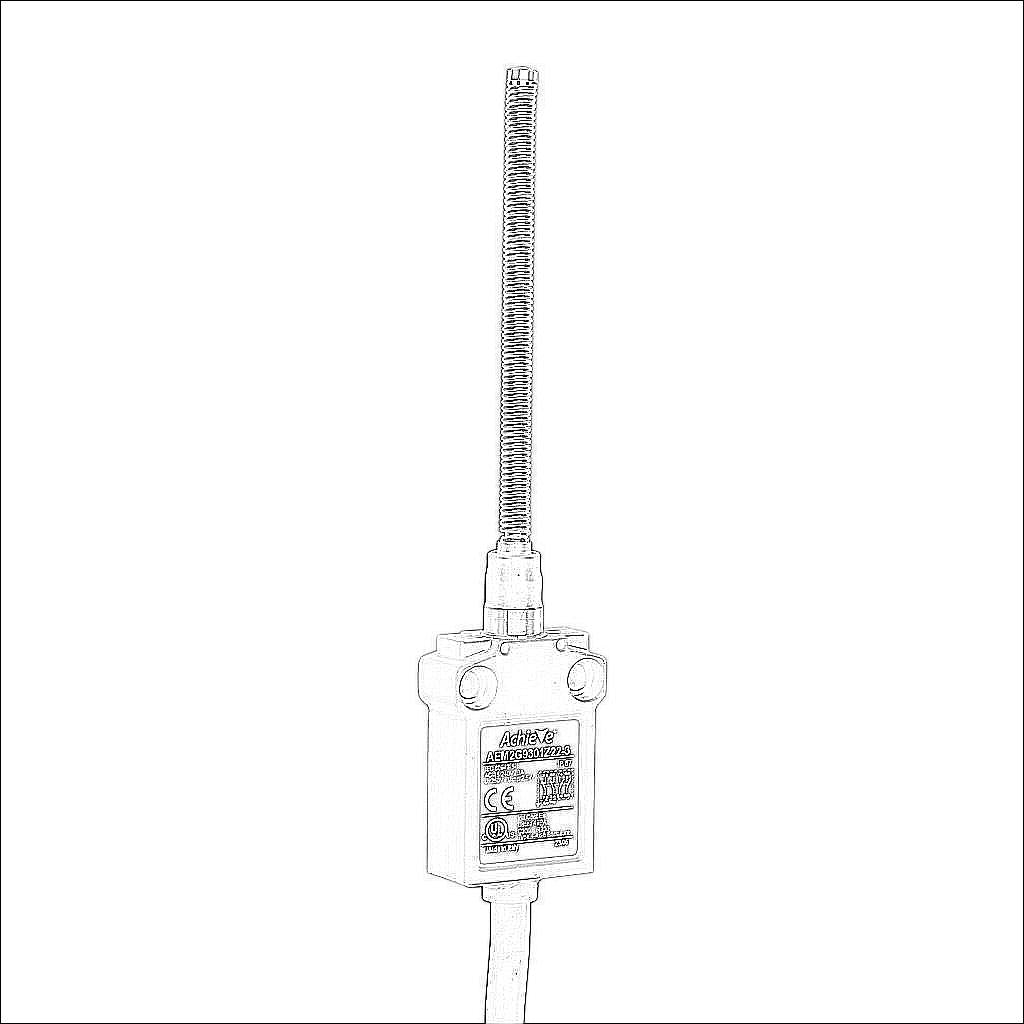

| Item | Limit switch | |
| Switch Type | Compact | |
| Actuator Type | 360 degree stainless steel spring | |
| Contact Type | (2) N.O./(2) N.C. | |
| Action | Snap action | |
| Reset | No | |
| Body Width | 35mm | |
| Mounting Hole Spacing | 25mm | |
| Material | Zinc alloy | |
| IP Rating | IP67 | |
| Operating Temperature | -25 to 70 deg C | |
| Connection | Pigtail | |
| Conductor Size | 20 AWG | |
| Jacket Material | PVC | |
| Halogen Free | No | |
| Cable Length | 9.8ft/3m | |
| Cable Exit | Bottom | |
