AM58S-1314-MTP9-M12

AM58S-1314-MTP9-M12

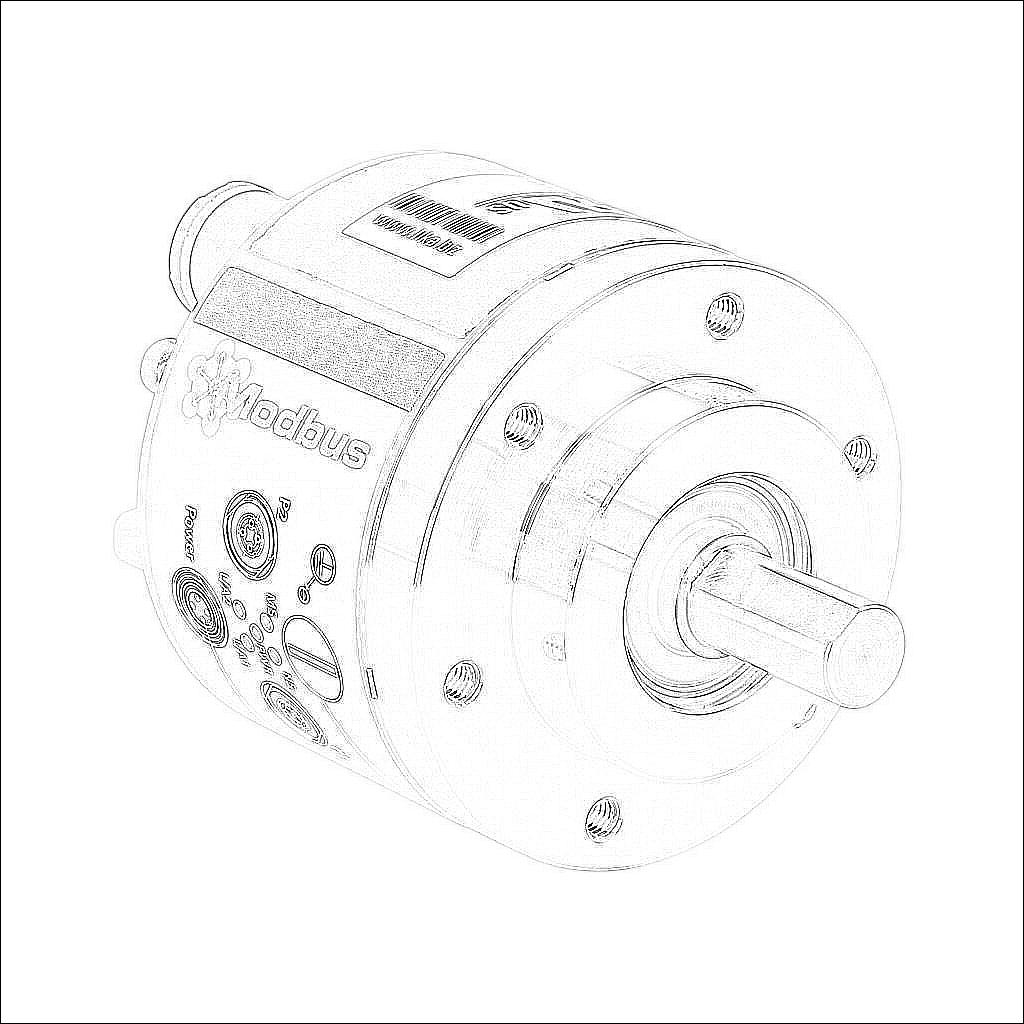

Lika Electronic AM58 series multi-turn absolute rotary encoder, 5-30 VDC, Modbus TCP output, medium duty, up to 13-bit (8192 ppr)/up to 14-bit turns, 3/8in solid shaft, 58mm diameter body, IP65, axial exit, M12 male.

$452.50
/
Technical Data
BrandLika Electronic
ItemEncoder
SeriesAM58
Feedback TypeMulti-turn absolute
Encoder TypeRotary
Voltage Rating5-30 VDC
Encoder Output TypeModbus TCP
Duty RatingMedium duty
Communication Port and Connection Type(s)
  • (2) Ethernet 10/100Base-T (M12)
Port Protocol(s)
  • Modbus TCP Server
Port Speed(s)
  • 10/100 Mbps
Programmable Encoder ResolutionYes
Encoder ResolutionUp to 13-bit (8192 ppr)/up to 14-bit turns
Shaft TypeSolid
Shaft Diameter3/8in
Radial Shaft Load40N
Axial Shaft Load40N
Speed Rating6000rpm
Flange MountNo
Encoder Body Diameter58mm
Housing MaterialAluminum alloy
IP RatingIP65
Protection Type(s)
  • short circuit
  • reverse polarity
Exit OrientationAxial
Connector TypeM12 male
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
