AM59H-1314-MB15-M12

AM59H-1314-MB15-M12

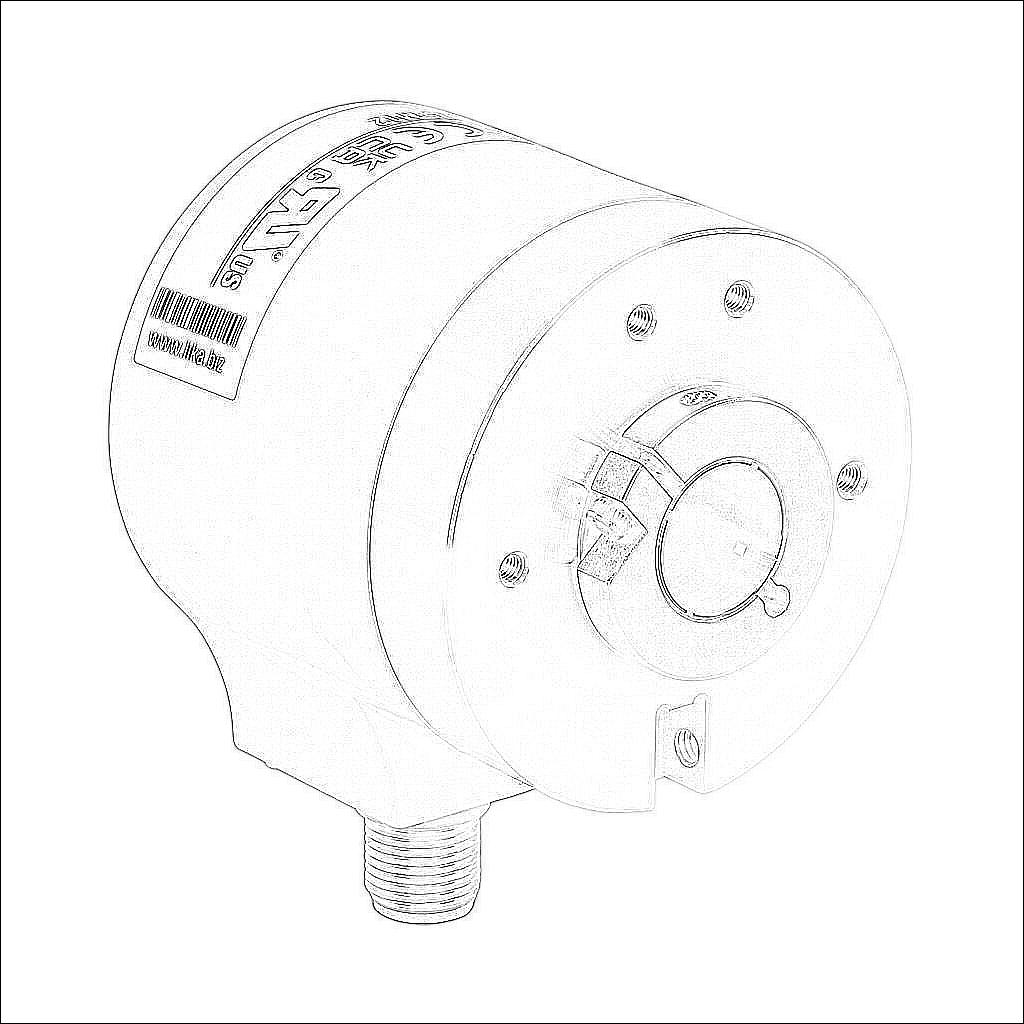

Lika Electronic AM59 series multi-turn absolute rotary encoder, 10-30 VDC, Modbus RTU output, medium duty, up to 13-bit (8192 ppr)/up to 14-bit turns, multiple hollow shafts (6mm - 15mm), 58mm diameter body, IP65, radial exit, M12 male.

$332.50
/
Technical Data
BrandLika Electronic
ItemEncoder
SeriesAM59
Feedback TypeMulti-turn absolute
Encoder TypeRotary
Voltage Rating10-30 VDC
Encoder Output TypeModbus RTU
Duty RatingMedium duty
Communication Port and Connection Type(s)
  • (1) RS-485 (5-pin M12 A-coded)
Port Protocol(s)
  • Modbus RTU Slave
Port Speed(s)
  • up to 115.2k baud
Programmable Encoder ResolutionYes
Encoder ResolutionUp to 13-bit (8192 ppr)/up to 14-bit turns
Shaft TypeHollow
Shaft Diameter6mm, 1/4in, 8mm, 3/8in, 10mm, 11mm, 12mm, 1/2in and 15mm
Radial Shaft Load40N
Axial Shaft Load40N
Speed Rating9000rpm
Flange MountNo
Encoder Body Diameter58mm
Housing MaterialAluminum alloy
IP RatingIP65
Protection Type(s)
  • short circuit
  • reverse polarity
Exit OrientationRadial
Connector TypeM12 male
RequiresLika Electronic EC-M12FC-LK-CB-Lxxx encoder cable and BR1-xx reducer bushing (15mm shaft does not require reducer)
Additional InformationOptional LIKA-MODBUS-RTU software available for custom configuration
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
