| Technical Data | ||
|---|---|---|
| Brand | Same Sky | |

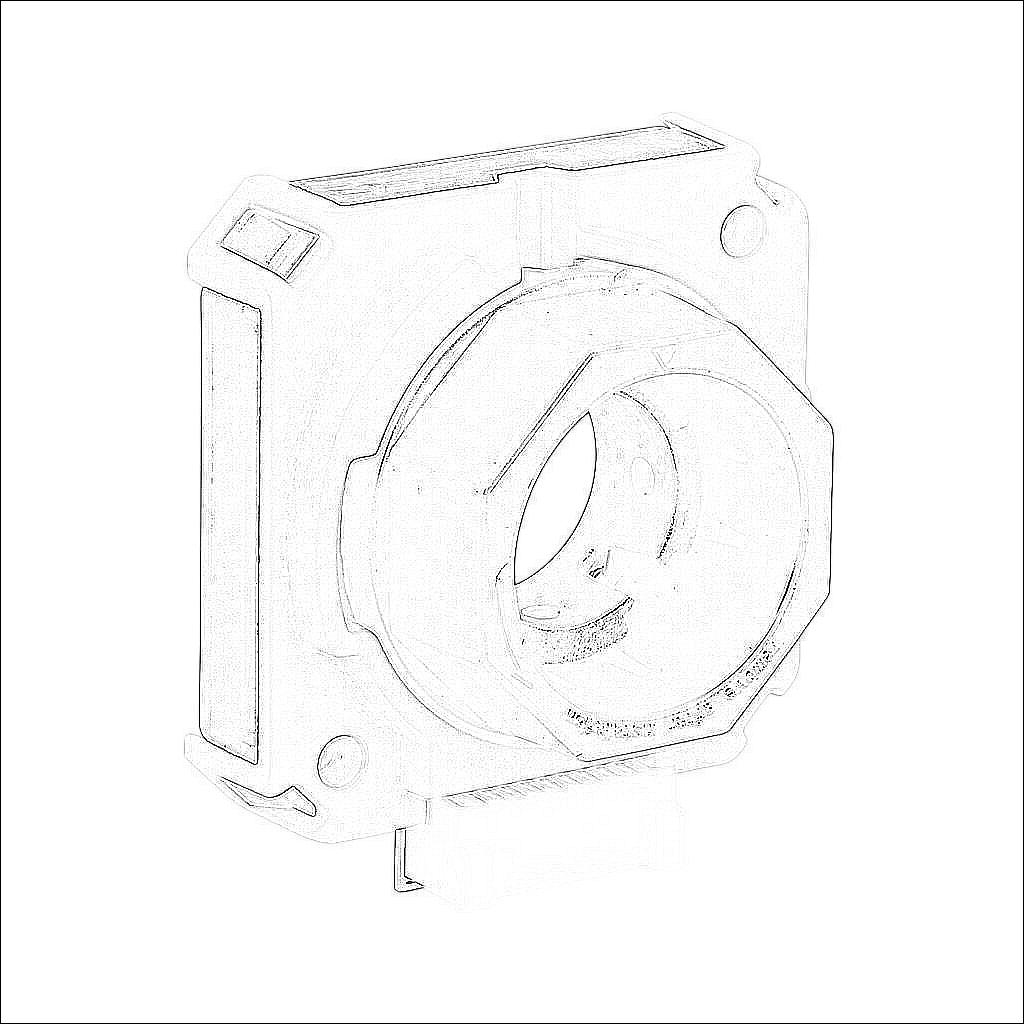

| Item | Modular kit encoder | |
| Series | AMT13 | |
| Feedback Type | Incremental (quadrature) | |
| Encoder Type | Rotary | |
| Replacement | No | |
| Duty Rating | Light duty | |
| Voltage Rating | 5 VDC | |
| Exit Orientation | Radial | |
| Encoder Output Type | Line driver (differential) | |
| Programmable Encoder Resolution | Yes | |
| Encoder Resolution | Up to 4096 ppr | |
| Configuration | Software | |
| Shaft Type | Hollow | |
| Shaft Diameter | 9mm, 3/8in, 10mm, 11mm, 12mm, 1/2in, 13mm, 14mm and 5/8in | |
| Frequency Response | Greater than 100 kHz | |
| Speed Rating | 2500/4000/8000rpm | |
| Flange Mount | No | |
| Encoder Body Diameter | 42mm | |
| Housing Material | Plastic | |
| IP Rating | IP20 | |
| Connector Type | 18-pin male | |
| For Use With | NEMA 34 dual shaft motors | |
| Kit Includes | (1) encoder module, (1) alignment tool, (1) Allen wrench, (1) placement tool, (1) shaft adapter and (8) shaft sleeves (9, 10, 11, 12, 13 and 14mm, 3/8 and 1/2in) | |
| Requires | AMT-18C-3-xxx encoder cable and AMT-PGRM-18C programming cable | |
| Additional Information | Default resolution is 2048ppr. 5/8in shaft application does not require sleeve. Can be used with NEMA 42 dual shaft motor with STP-MTRA-42ENC encoder mounting plate | |
