| Technical Data | ||
|---|---|---|
| Brand | Same Sky | |

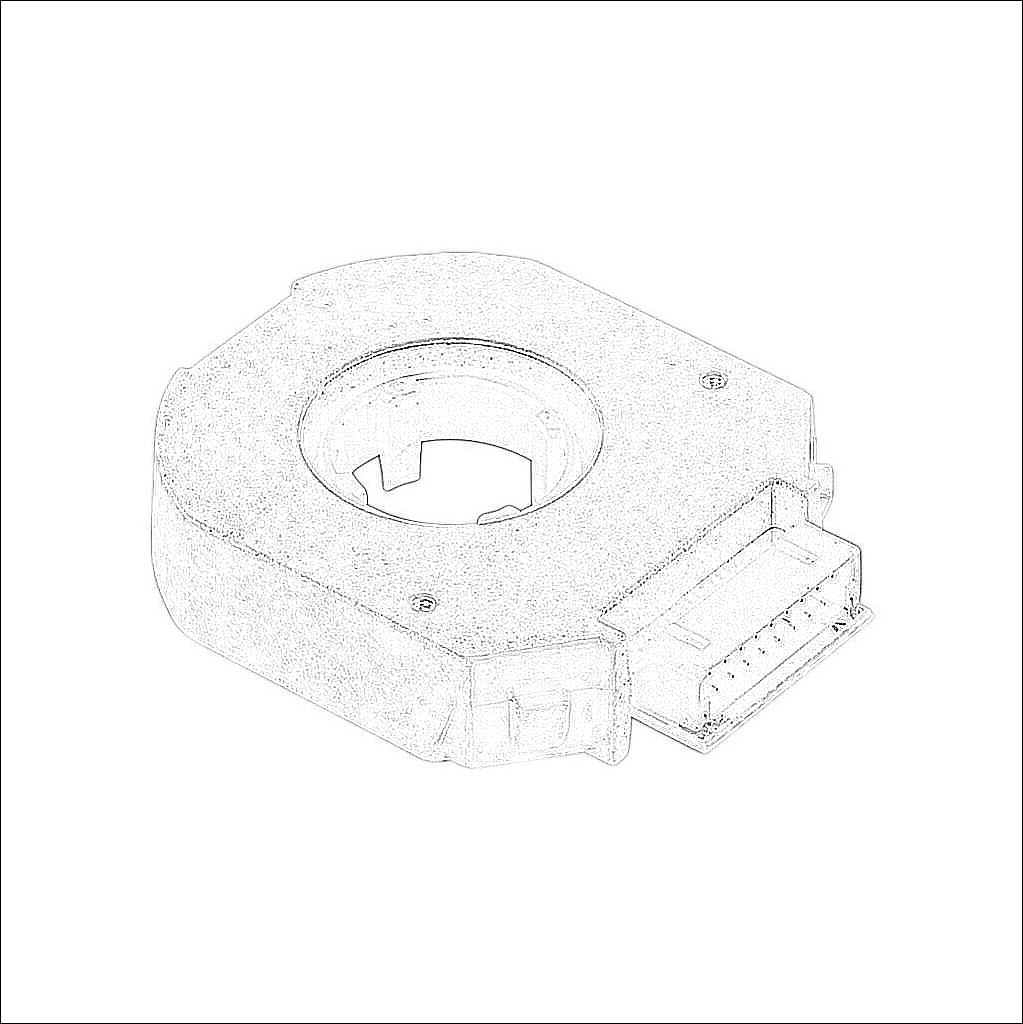

| Item | Modular kit encoder | |
| Series | AMT31 | |
| Feedback Type | Incremental (quadrature)/commutation | |
| Encoder Type | Rotary | |
| Replacement | No | |
| Duty Rating | Light duty | |
| Voltage Rating | 5 VDC | |
| Exit Orientation | Radial | |
| Encoder Output Type | Push-pull (totem) | |
| Programmable Encoder Resolution | Yes | |
| Encoder Resolution | Up to 4096 ppr | |
| Configuration | Software | |
| Commutation Output Type | Push-pull (totem) | |
| Commutation Resolution | Up to 20 motor poles | |
| Shaft Type | Hollow | |
| Shaft Diameter | 2mm, 3mm, 1/8in, 4mm, 3/16in, 5mm, 6mm, 1/4in and 8mm | |
| Frequency Response | Greater than 100 kHz | |
| Speed Rating | 2500/4000/8000rpm | |
| Flange Mount | No | |
| Encoder Body Diameter | 29mm | |
| Housing Material | Metal | |
| IP Rating | IP20 | |
| Connector Type | 17-pin male | |
| For Use With | NEMA 14, 17 and 23 dual shaft motors | |
| Kit Includes | (1) encoder module, (1) centering tool, (1) spacer tool, (1) shaft adapter and (9) shaft sleeves (2, 3, 4, 5, 6 and 8mm, 1/8, 3/16 and 1/4in) | |
| Requires | AMT-17C-1-xxx encoder cable and AMT-PGRM-17C programming cable | |
| Additional Information | Default resolution is 2048ppr | |
