| Technical Data | ||
|---|---|---|
| Brand | Penn-Union | |

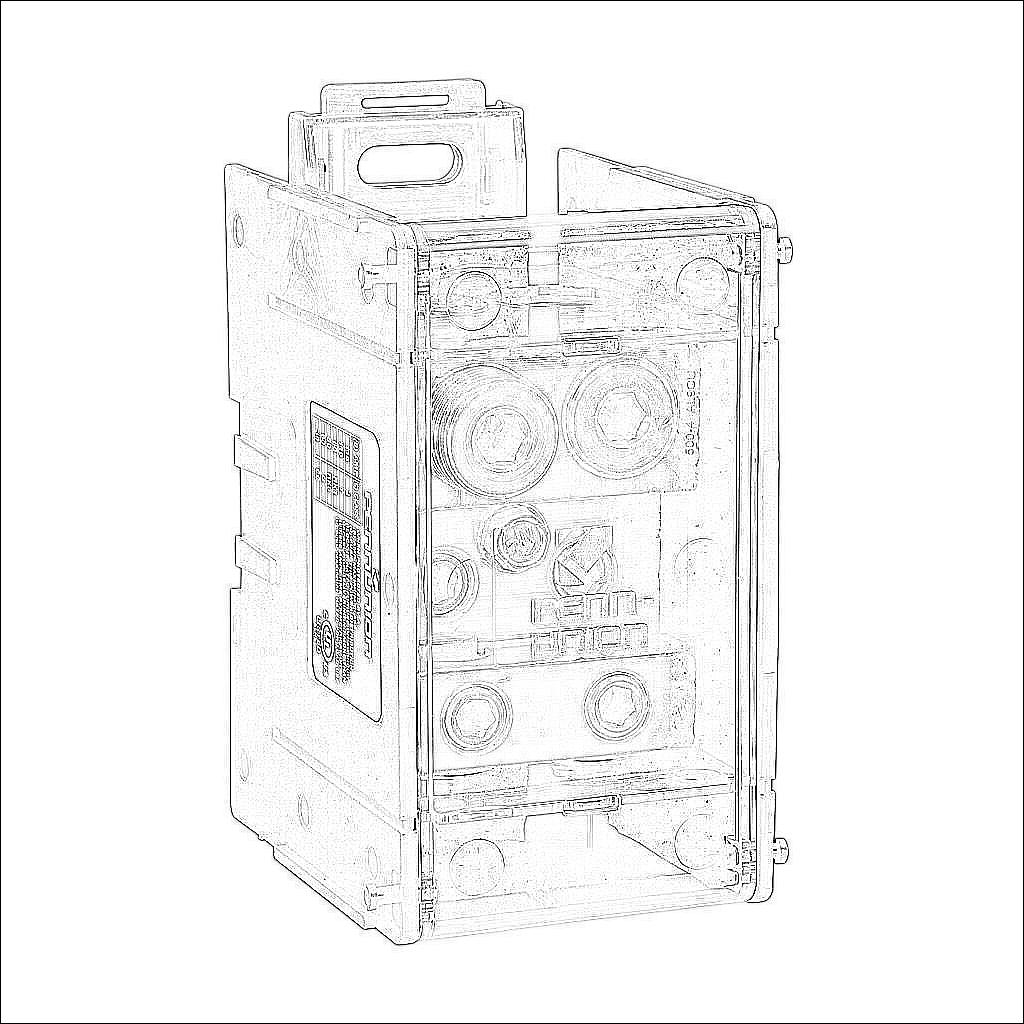

| Item | Power distribution block | |
| Terminal Block Type | Open | |
| Modular | Yes | |
| Finger-safe | Yes | |
| Amperage Rating | 760A | |
| Number of Poles | 1 | |
| Line Side Openings | 2 openings accept 500 MCM to 4 AWG Cu/AL | |
| Load Side Openings | 4 openings accept 4/0 AWG to 6 AWG Cu/AL | |
| Mounting | DIN rail or panel | |
| SCCR Rating | 100kA SCCR | |
| UL Rating | UL 1953 listed | |
| IP Rating | IP20 | |
| Additional Information | Suitable for branch and feeder circuits | |
