| Technical Data | ||
|---|---|---|
| Brand | LS Electric | |

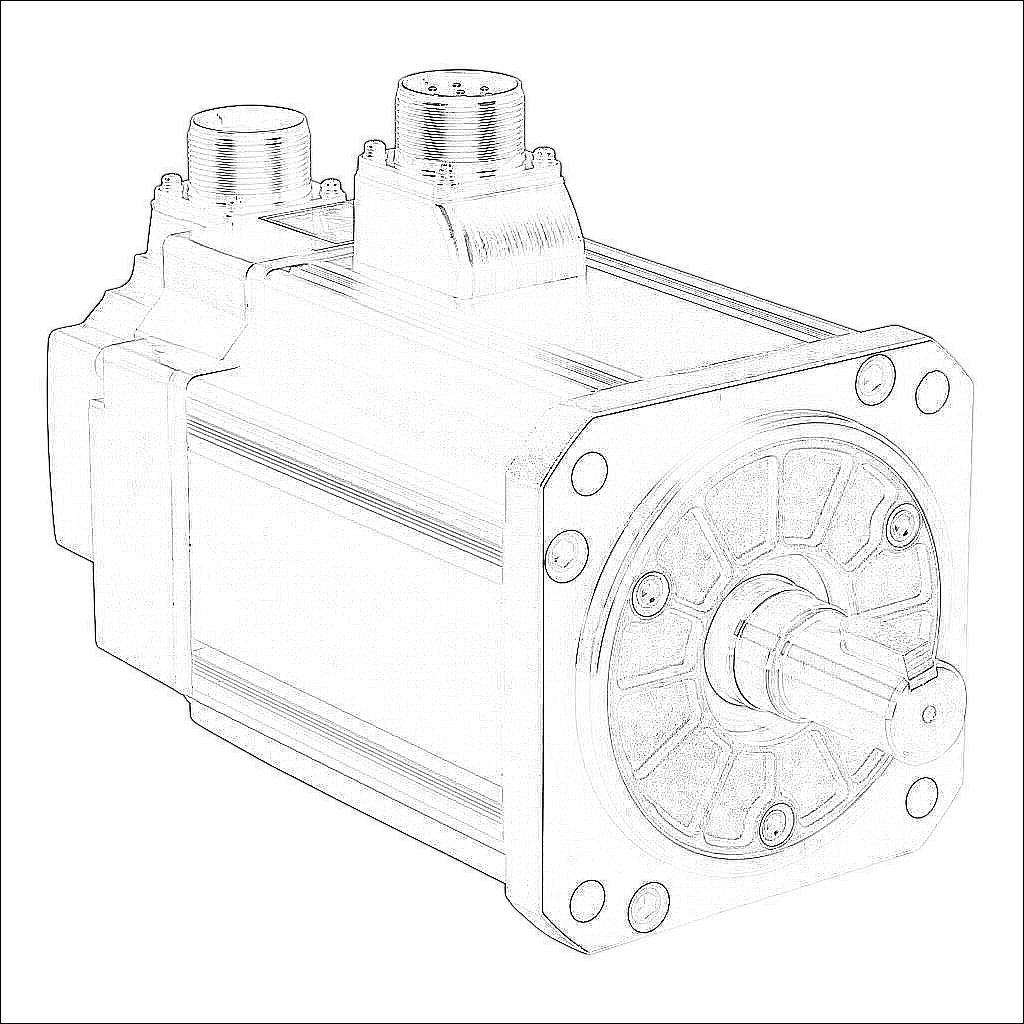

| Item | Servo motor | |
| Performance Level | Medium inertia | |
| Voltage Type | AC | |
| Motor Type | Brushless | |
| Power Rating | 2.2 kW | |
| Number of Input Phases | 3 | |
| Rated Speed | 2000rpm | |
| Maximum Speed | 3000rpm | |
| Amperage Rating | 12.97A | |
| Holding Torque Rating | 92.9 lb-in | |
| Encoder Resolution | 19-bit (524288 ppr) | |
| Integrated Brake | Yes | |
| Motor Frame | 130mm | |
| IP Rating | IP65 | |
| Shaft Type | Single | |
| Shaft Diameter | 24mm | |
| Steps per Revolution | Up to 19-bit (524288 ppr) | |
| For Use With | LS Electric L7PA020U-AD and iX7NHA020U-AD with 3-phase input and L7PA035U-AD and iX7NHA035U-AD with 1-phase input | |
| Includes | Motor shaft key | |
| Requires | LS Electric APCS-PxxxxNB-AD power cables and APCS-ExxxxDS1-AD encoder cables | |
| Additional Information | For 1-phase supply: Use L7PA035U-AD 3.5 kW drive | |
