| Technical Data | ||
|---|---|---|
| Brand | LS Electric | |

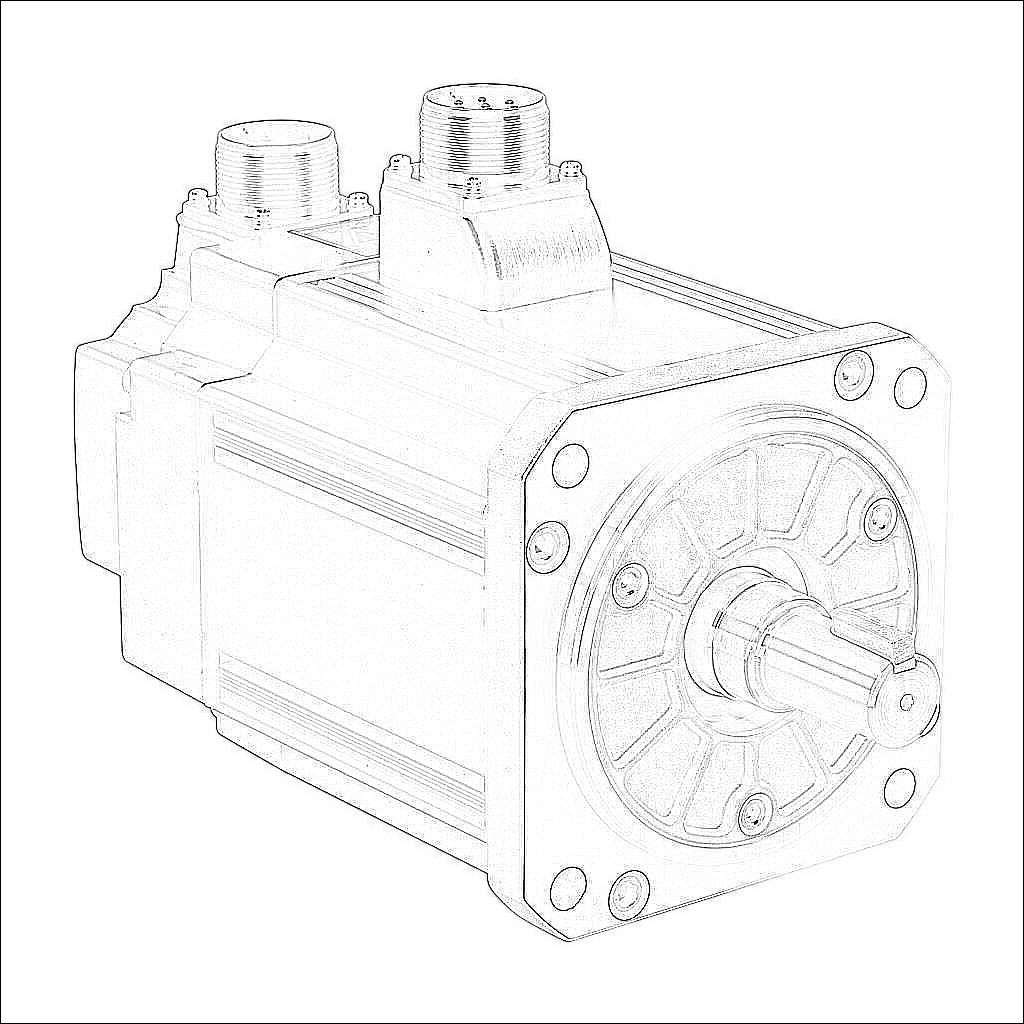

| Item | Servo motor | |
| Performance Level | Medium inertia | |
| Voltage Type | AC | |
| Motor Type | Brushless | |
| Power Rating | 1.6 kW | |
| Number of Input Phases | 3 | |
| Rated Speed | 2000rpm | |
| Maximum Speed | 3000rpm | |
| Amperage Rating | 4.97A | |
| Holding Torque Rating | 67.5 lb-in | |
| Encoder Resolution | 19-bit (524288 ppr) | |
| Integrated Brake | Yes | |
| Motor Frame | 130mm | |
| IP Rating | IP65 | |
| Shaft Type | Single | |
| Shaft Diameter | 22mm | |
| Steps per Revolution | Up to 19-bit (524288 ppr) | |
| For Use With | LS Electric L7PB020U-AD 2 kW drive | |
| Includes | Motor shaft key | |
| Requires | LS Electric APCS-PxxxxNB-AD power cables and APCS-ExxxxDS1-AD encoder cables | |
