| Technical Data | ||
|---|---|---|
| Brand | LS Electric | |

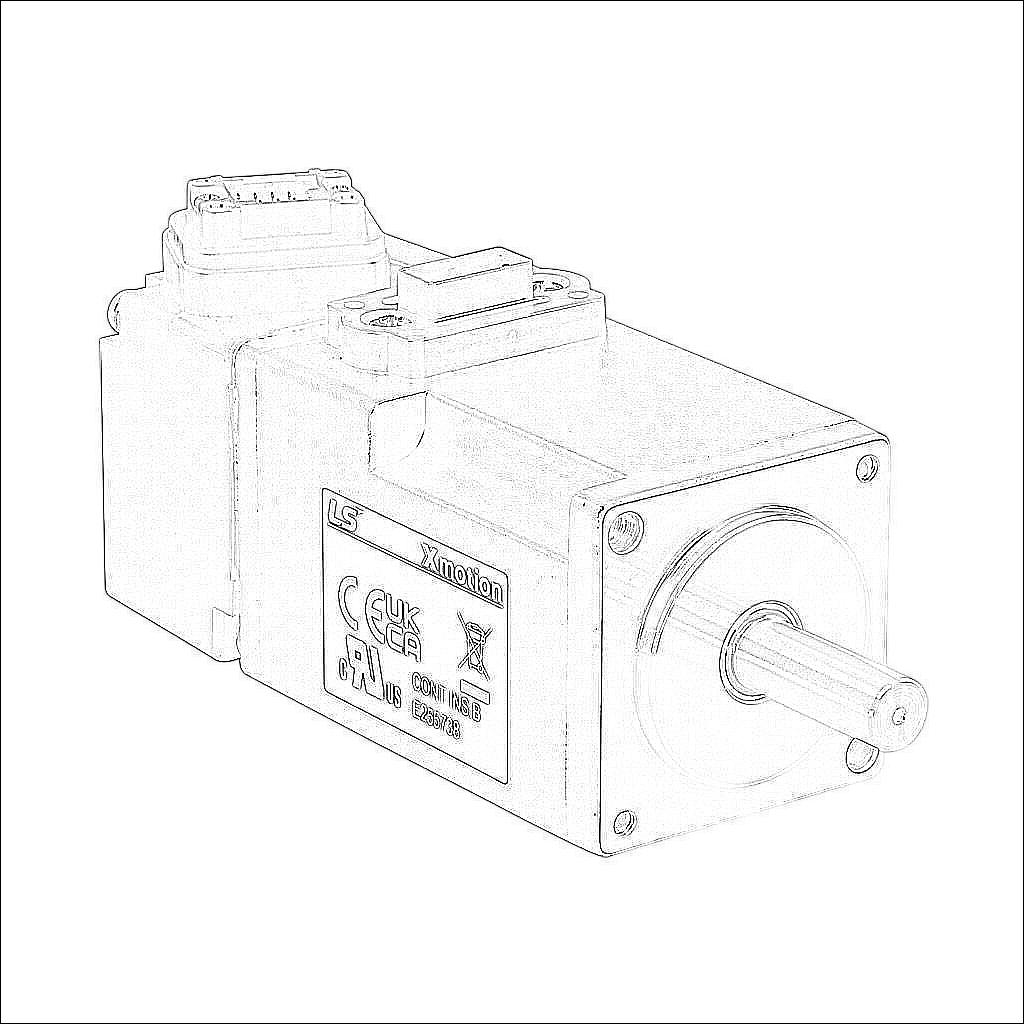

| Item | Servo motor | |
| Performance Level | Low inertia | |
| Voltage Type | DC | |
| Motor Type | Brushless | |
| Power Rating | 100W | |
| Number of Input Phases | 3 | |
| Rated Speed | 3000rpm | |
| Maximum Speed | 3300rpm | |
| Amperage Rating | 2.71A | |
| Holding Torque Rating | 2.8 lb-in | |
| Encoder Resolution | 18-bit (262144 ppr) | |
| Integrated Brake | No | |
| Motor Frame | 40mm | |
| IP Rating | IP67 | |
| Shaft Type | Single | |
| Shaft Diameter | 8mm | |
| Steps per Revolution | Up to 18-bit (262144 ppr) | |
| For Use With | LS Electric PHOX-03-080NS-AD 3A drive | |
| Requires | LS Electric APCV-PxxxLS-AD power cables and APCV-ExxxES1-AD encoder cables | |
