| Technical Data | ||
|---|---|---|
| Brand | LS Electric | |

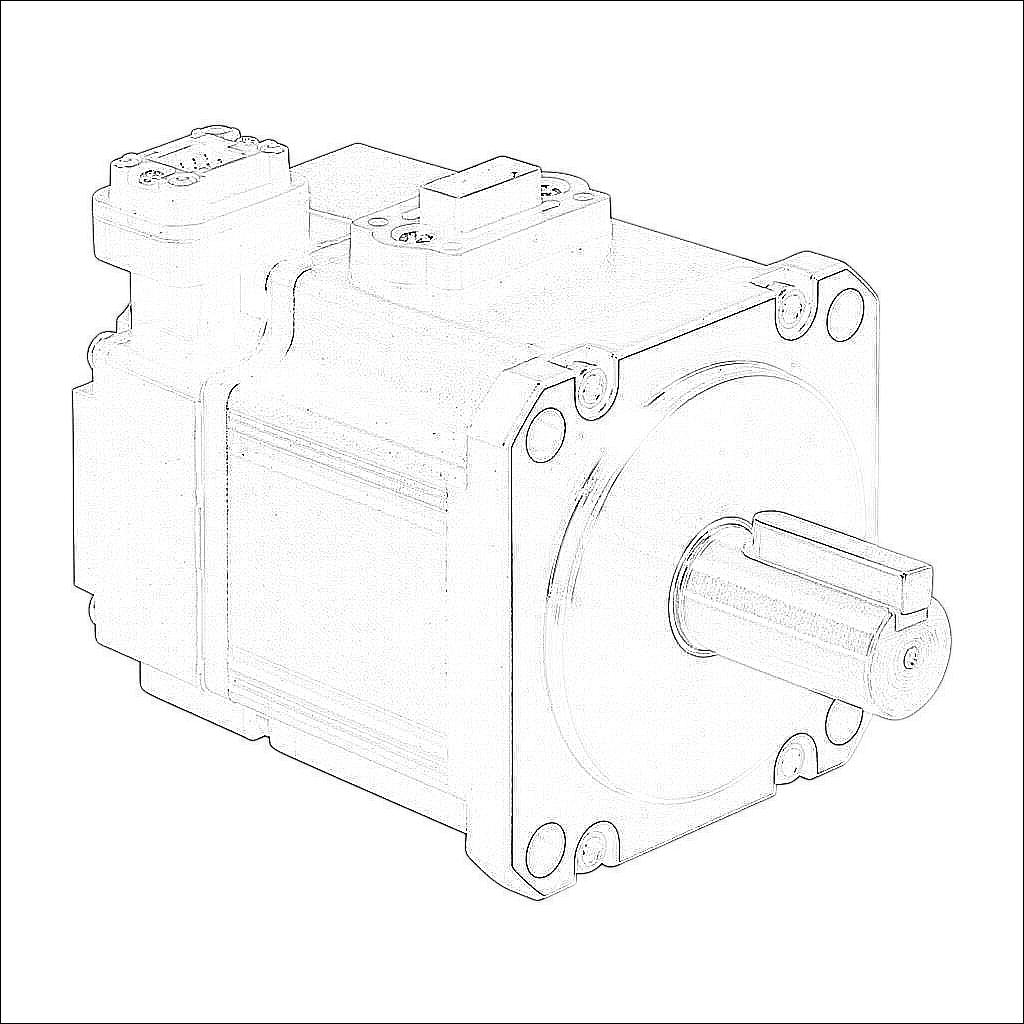

| Item | Servo motor | |
| Performance Level | Low inertia | |
| Voltage Type | AC | |
| Motor Type | Brushless | |
| Power Rating | 100W | |
| Number of Input Phases | 3 | |
| Rated Speed | 3000rpm | |
| Maximum Speed | 5000rpm | |
| Amperage Rating | 0.95A | |
| Holding Torque Rating | 2.8 lb-in | |
| Encoder Resolution | 17-bit (131072 ppr) | |
| Integrated Brake | No | |
| Motor Frame | 60mm | |
| IP Rating | IP67 | |
| Shaft Type | Single | |
| Shaft Diameter | 14mm | |
| Steps per Revolution | Up to 17-bit (131072 ppr) | |
| For Use With | LS Electric L7C L7CA004U-AD 400W drive | |
| Includes | Motor shaft key | |
| Requires | LS Electric APCS-PxxxxLSC-AD power cables and APCS-ExxxxES-AD encoder cables | |
