| Technical Data | ||
|---|---|---|
| Brand | LS Electric | |

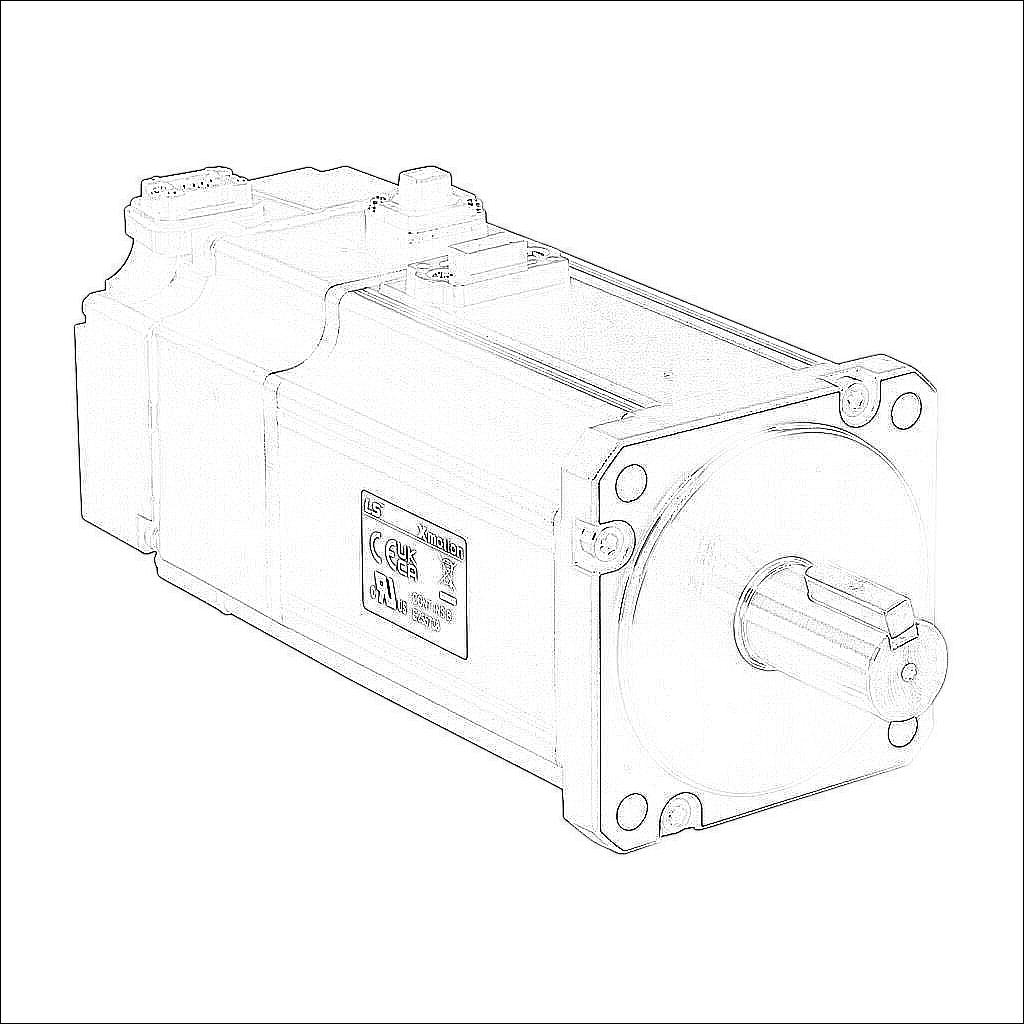

| Item | Servo motor | |
| Performance Level | Low inertia | |
| Voltage Type | AC | |
| Motor Type | Brushless | |
| Power Rating | 750W | |
| Number of Input Phases | 3 | |
| Rated Speed | 3000rpm | |
| Maximum Speed | 5000rpm | |
| Amperage Rating | 5.02A | |
| Holding Torque Rating | 21.2 lb-in | |
| Encoder Resolution | 19-bit (524288 ppr) | |
| Integrated Brake | Yes | |
| Motor Frame | 80mm | |
| IP Rating | IP67 | |
| Shaft Type | Single | |
| Shaft Diameter | 19mm | |
| Steps per Revolution | Up to 19-bit (524288 ppr) | |
| For Use With | LS Electric L7PA010U-AD 1 kW drive and iX7NHA008U-AD 750W drives | |
| Includes | Motor shaft key | |
| Requires | LS Electric APCS-PxxxxLS-AD power cables, APCS-ExxxxES1-AD encoder cables and APCS-BxxxQS-AD brake cables | |
