| Technical Data | ||
|---|---|---|
| Brand | LS Electric | |

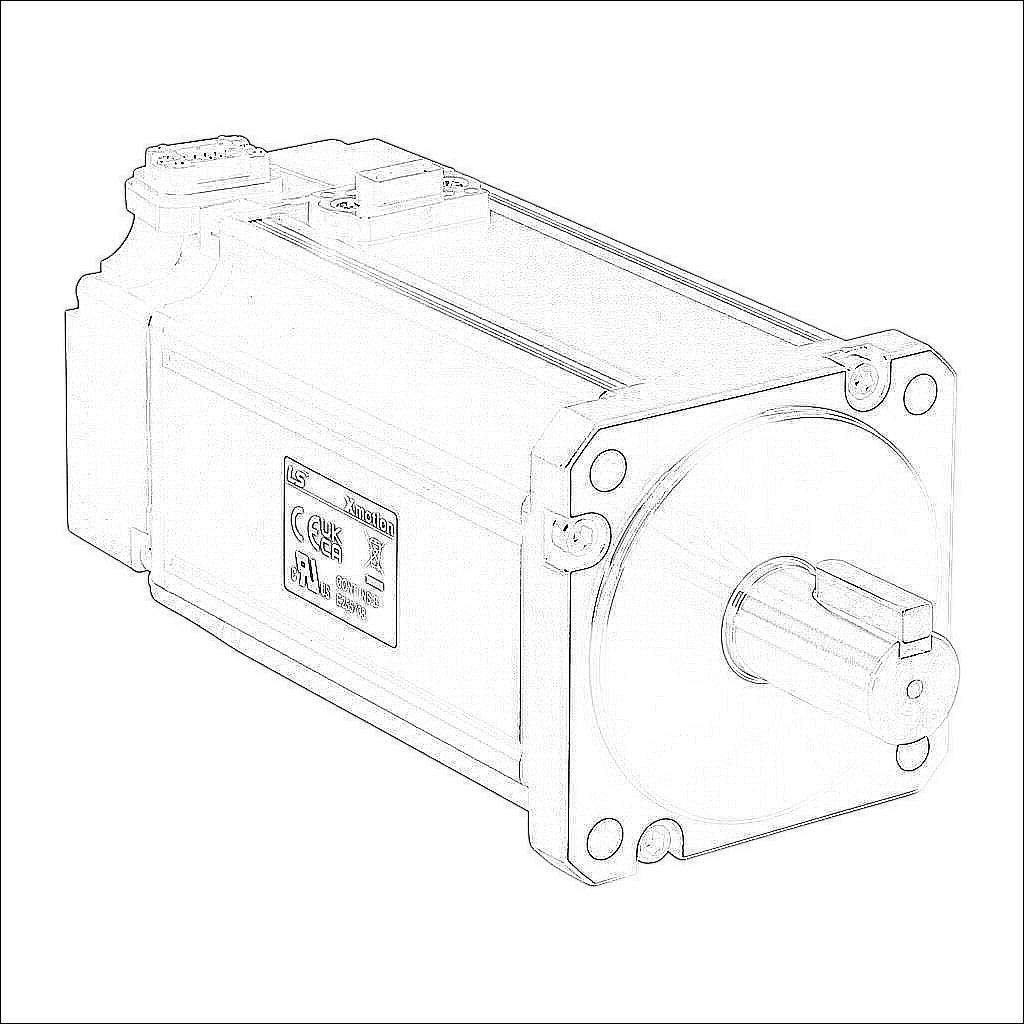

| Item | Servo motor | |
| Performance Level | Low inertia | |
| Voltage Type | AC | |
| Motor Type | Brushless | |
| Power Rating | 1 kW | |
| Number of Input Phases | 3 | |
| Rated Speed | 3000rpm | |
| Maximum Speed | 5000rpm | |
| Amperage Rating | 5.83A | |
| Holding Torque Rating | 28.1 lb-in | |
| Encoder Resolution | 19-bit (524288 ppr) | |
| Integrated Brake | No | |
| Motor Frame | 80mm | |
| IP Rating | IP67 | |
| Shaft Type | Single | |
| Shaft Diameter | 19mm | |
| Steps per Revolution | Up to 19-bit (524288 ppr) | |
| For Use With | LS Electric L7PA010U-AD and iX7NHA010U-AD 1 kW drives and L7PA020U-AD and iX7NHA020U-AD 2 kW drives with 1-phase input | |
| Includes | Motor shaft key | |
| Requires | LS Electric APCS-PxxxxLS-AD power cables and APCS-ExxxxES1-AD encoder cables | |
| Additional Information | For 1-phase supply: L7PA010U-AD will derate this motor to 200% max motor torque. Use L7PA020U-AD for standard 300% max motor torque | |
