| Technical Data | ||
|---|---|---|
| Brand | Lika Electronic | |

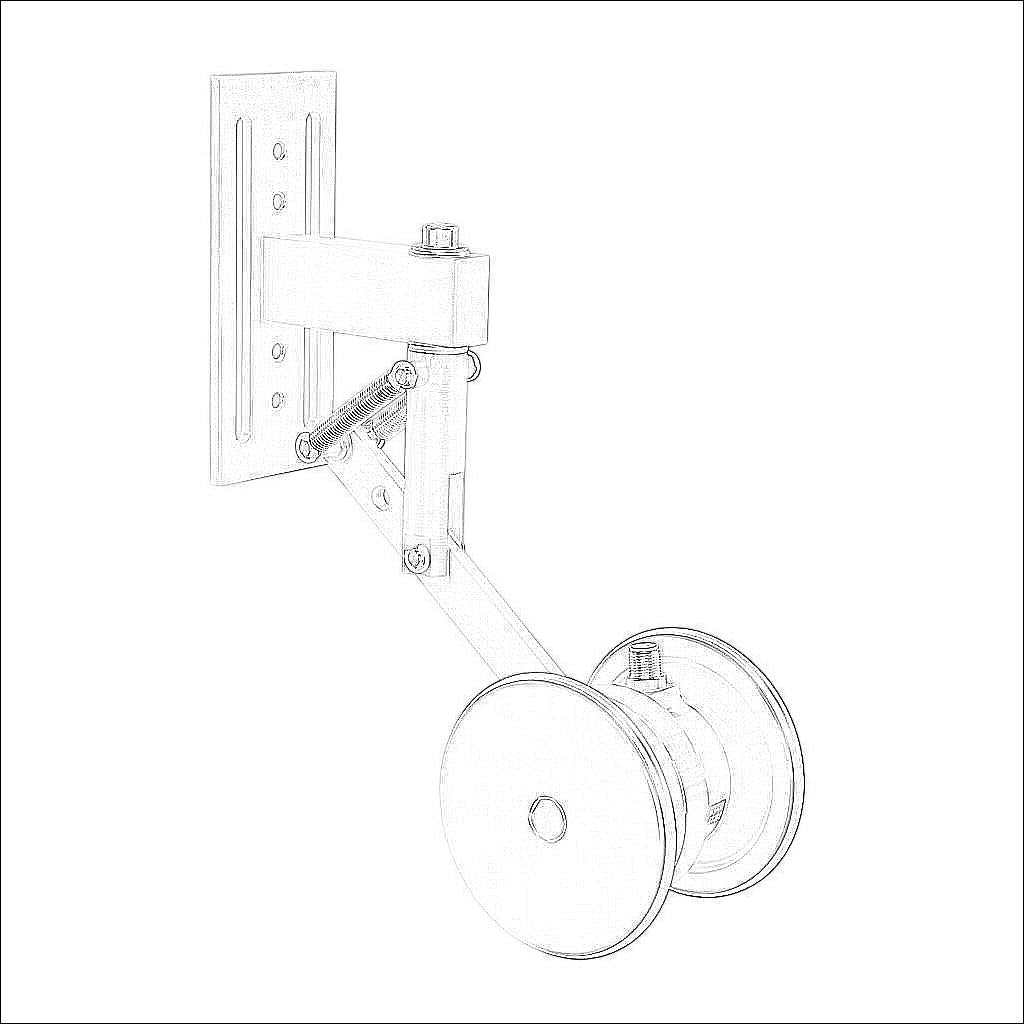

| Item | Measuring wheel encoder assembly | |
| Series | AR01 | |
| Feedback Type | Incremental (quadrature) | |
| Encoder Type | Rotary | |
| Replacement | No | |
| Duty Rating | Light duty | |
| Voltage Rating | 5-30 VDC | |
| Exit Orientation | Radial | |
| Encoder Output Type | Universal (line driver or NPN/PNP open collector) | |
| Programmable Encoder Resolution | No | |
| Encoder Resolution | 250 ppr | |
| Frequency Response | 50 kHz | |
| Speed Rating | 2000rpm | |
| Flange Mount | No | |
| Encoder Body Diameter | 58mm | |
| Housing Material | Aluminum | |
| IP Rating | IP65 | |
| Connector Type | M12 male | |
| Includes | (1) encoder, (2) measuring wheels, (1) spring-loaded arm and (1) mounting bracket | |
| Requires | Lika Electronic EC-M12F8-LKM8-xx encoder cable | |
