| Technical Data | ||
|---|---|---|

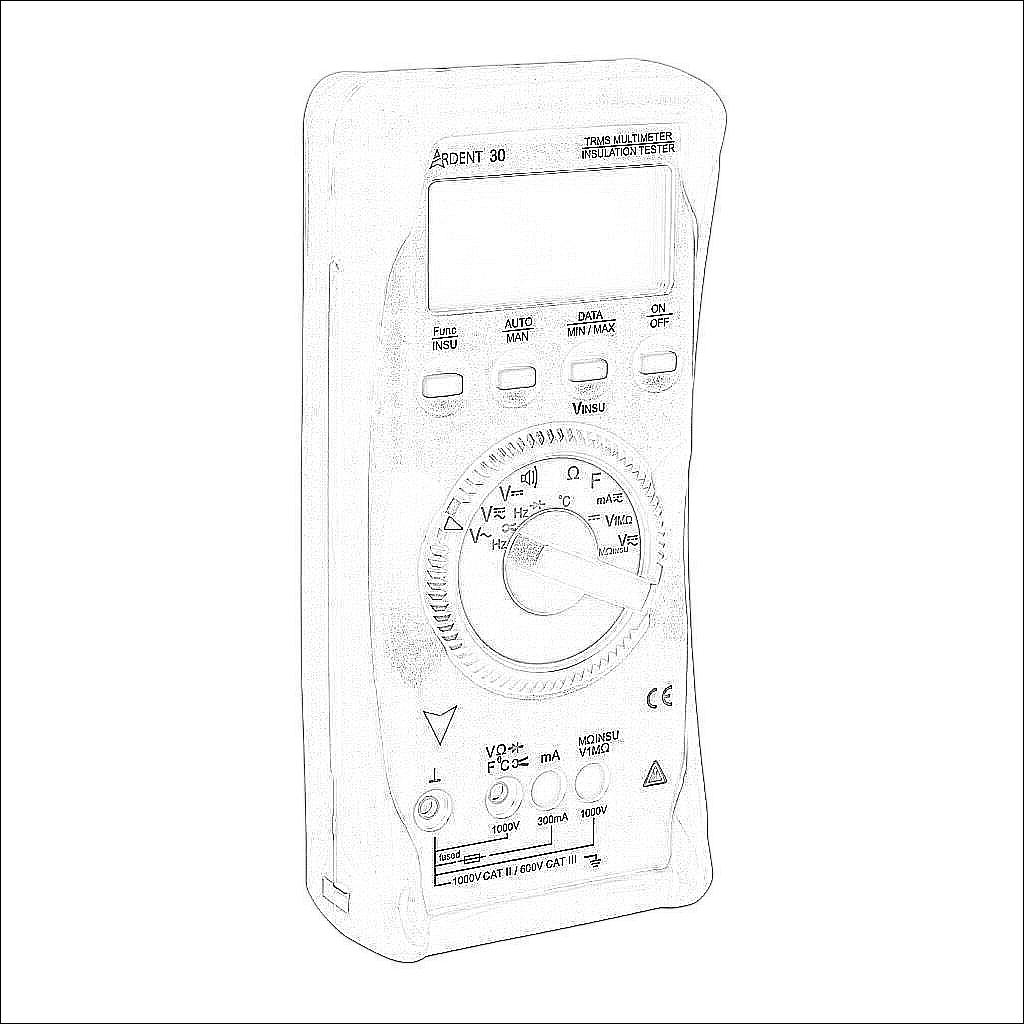

| Brand | ARDENT | |
| Item | Insulation tester | |
| Multimeter Type | Autoranging | |
| Safety Rating | CAT III 600V/CAT II 1000V | |
| AC Voltage Range | 0-3.000 VAC, 0-30.00 VAC, 0-300.0 VAC and 0-1000 VAC | |
| DC Voltage Range | 0-30.00 mVDC, 0-300.0 mVDC, 0-3.000 VDC, 0-30.00 VDC, 0-300.0 VDC and 0-1000 VDC | |
| AC Current Range | 0-30.00A with amp probe and 0-300.0A with amp probe | |
| DC Current Range | 0-300.0 ��A, 0-3.000 mA, 0-30.00 mA and 0-300.0 mA | |
| Resistance Range | 0-30.00 ohm, 0-300.0 ohm, 0-3.000 kohm, 0-30.00 kohm, 0-300.0 kohm, 0-3.000 Mohm and 0-30.00 Mohm | |
| Insulation Resistance Range | 50V Test Voltage = 100 kohm to 1.0 Mohm, 1.0 Mohm to 16.0 Mohm, 14.0 Mohm to 155.0 Mohm, 100V Test Voltage = 100 kohm to 3.0 Mohm, 2.8 Mohm to 31.0 Mohm, 28.0 Mohm to 310.0 Mohm, 250V Test Voltage = 100 kohm to 800 Kohm, 700 kohm to 8.0 Mohm, 7.0 Mohm to 80.0 Mohm, 70 Mohm to 800 Mohmn, 500V Test Voltage = 100 kohm to 1.6 Mohm, 1.4 Mohm to 16.0 Mohm, 14.0 Mohm to 160.0 Mohm, 140 Mohm to 1600 Mohm and 1000V Test Voltage = 100 kohm to 3.1 Mohm, 2.8 Mohm to 31.0 Mohm, 28.0 Mohm to 310.0 Mohm, 280 Mohm to 3100 Mohm | |
| Capacitance Range | 0-30.00 nF, 0-300.0 nF, 0-3.000 ��F and 0-30.00 ��F | |
| Frequency Range | 0-300.0 Hz, 0-3.000 kHz, 0-30.00 kHz and 0-100.0 kHz | |
| Non-Contact AC Voltage Detection | No | |
| True RMS | Yes | |
| Diode Tester | Yes | |
| Duty Cycle | 2.0-98.0% | |
| Temperature Range | -328 deg F to 1562 deg F and -200 deg C to 850 deg C | |
| Includes | Fuse (1.6A), rubber holster, normal tip probe set, alligator clip set, temperature adaptor, instruction manual and test certificate | |
| Applicable Standards | CE, IEC 61557, IEC 61326: Class B, IEC 61000-4-2, IEC 61000-4-3, IEC 61010-1-2001 and IEC 60529 | |
| IP Rating | IP20 | |
| Application | Electrical testing and insulation testing | |
