| Technical Data | ||
|---|---|---|

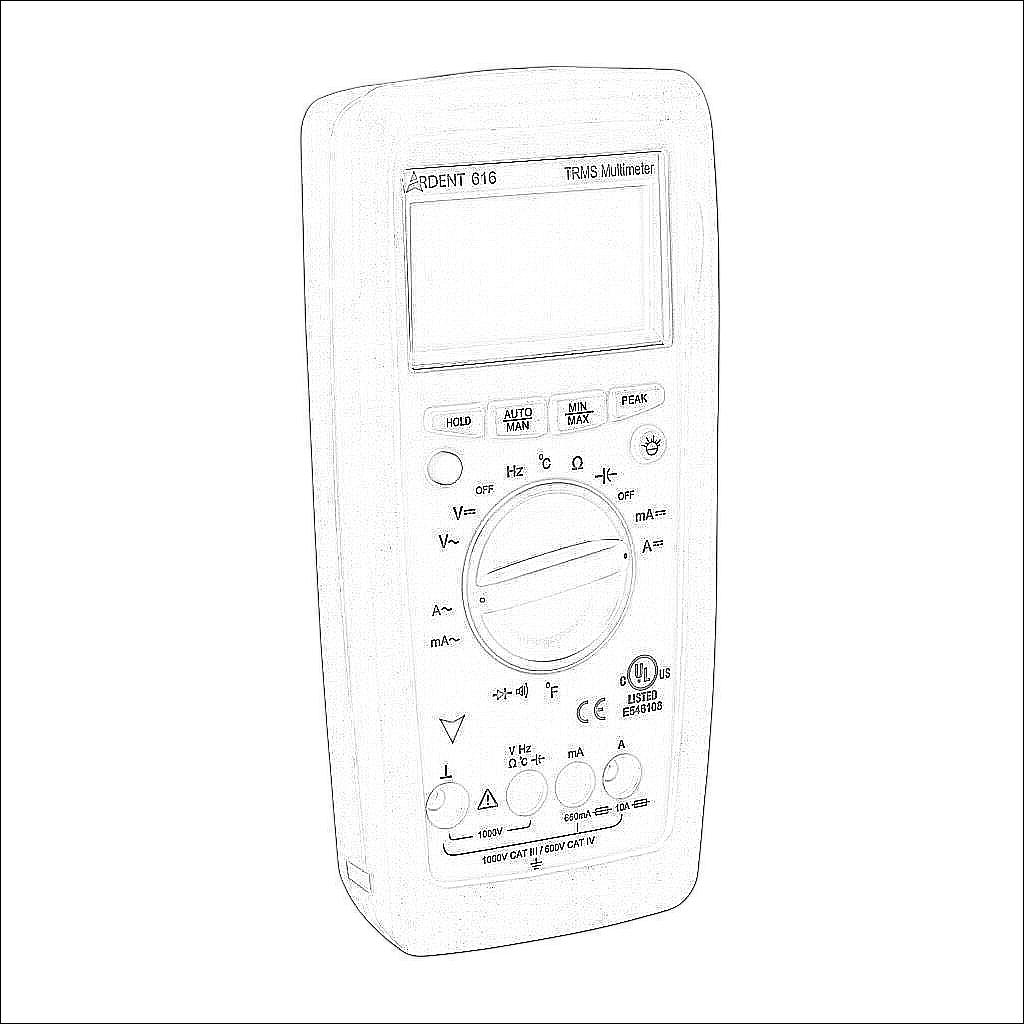

| Brand | ARDENT | |
| Item | Multimeter | |
| Multimeter Type | Autoranging | |
| Safety Rating | CAT IV 600V/CAT lll 1000V | |
| AC Voltage Range | 0-660.0 mVAC, 0-6.600 VAC, 0-66.00 VAC, 0-660.0 VAC and 0-1000 VAC | |
| DC Voltage Range | 0-660.0 mVDC, 0-6.600 VDC, 0-66.00 VDC, 0-660.0 VDC and 0-1000 VDC | |
| AC Current Range | 0-66.00 mA, 0-660.0 mA and 0-10.00A | |
| DC Current Range | 0-66.00 mA, 0-660.0 mA and 0-10.00A | |
| Resistance Range | 0-660.0 ohm, 0-6.600 Kohm, 0-66.00 kohm, 0-660.0 kohm, 0-6.600 Mohm and 0-66.00 Mohm | |
| Capacitance Range | 0-6.600 nF, 0-66.00 nF, 0-660.0 nF, 0-6.600 ��F, 0-66.00 ��F, 0-660.0 ��F, 0-6.600 mF and 0-40.00 mF | |
| Frequency Range | 0-66.00 Hz, 0-660.0 Hz, 0-6.600 kHz, 0-66.00 kHz, 0-660.0 kHz, 0-6.600 MHz and 0-10.00 Mhz | |
| Non-Contact AC Voltage Detection | No | |
| True RMS | Yes | |
| Diode Tester | Yes | |
| Duty Cycle | 1.0-98.90% | |
| Temperature Range | 32 deg F to 2372 deg F and 0 deg C to 1300 deg C | |
| Continuity | <30 ohm | |
| Includes | (2) fuses (1.6A and 16A ), rubber holster, fine tip probe set, temperature adaptor, instruction manual, test certificate and battery (2 X 1.5V AA) | |
| Applicable Standards | CE, cULus, IEC 61326-1:2012, IEC 61000-4-2, IEC 61000-4-3, IEC 61010-1-2010 and IEC 60529 | |
| IP Rating | IP20 | |
| Application | Electrical testing and continuity testing | |
