| Technical Data | ||
|---|---|---|
| Brand | Toshiba | |

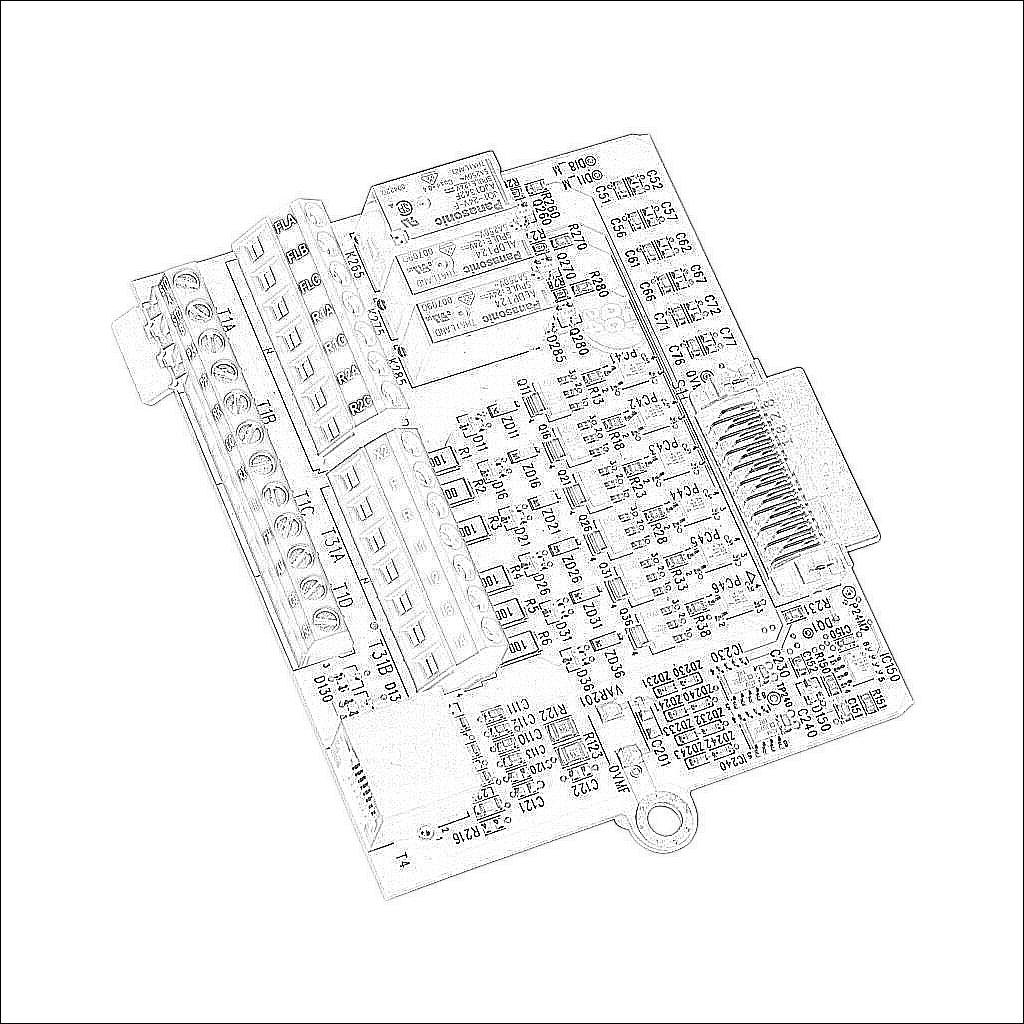

| Item | Combo module | |
| I/O Module Type | Relay/analog | |
| Series | AS3 | |
| Number of Analog Input Channels | 3 | |
| Analog Input Signal Type | Current/voltage | |
| Analog Input Type | Sinking and sourcing | |
| Number of Non-Isolated Analog Input Commons | 1 | |
| Number of Points per Analog Input Common | 3 | |
| Input Resolution | 11-bit | |
| Input Current Signal Range | 0-20 mA and 4-20 mA | |
| Input Voltage Signal Range | 0-10 VDC and +/- 10 VDC | |
| Number of Analog Output Channels | 2 | |
| Analog Output Signal Type | Current/voltage | |
| Number of Non-Isolated Analog Output Commons | 1 | |
| Number of Points per Analog Output Common | 2 | |
| Output Resolution | 10-bit | |
| Output Current Signal Range | 0-20 mA and 4-20 mA | |
| Output Voltage Signal Range | 0-10 VDC | |
| Number of Discrete Input Points | 6 | |
| Nominal Input Voltage | 120 VAC | |
| Number of Non-Isolated Discrete Input Commons | 1 | |
| Number of Points per Discrete Input Common | 6 | |
| Number of Discrete Output Points | 3 | |
| Nominal Output Voltage | 250 VAC/30 VDC | |
| Discrete Output Type | Relay | |
| Relay Configuration | (1) Form C (SPDT) relay, (2) Form A (SPST) relays | |
| Number of Isolated Discrete Output Commons | 3 | |
| Number of Points per Discrete Output Common | 1 | |
| Load Current | 2A/point relay | |
| Communication Port and Connection Type(s) | (1) RS-485 (RJ45) port(s) | |
| Port Protocol(s) | Modbus RTU Slave | |
| Port Speed(s) | Up to 38.4k baud | |
| Fuse Type | User-supplied external fuse | |
| External Power Requirement | 120 VAC | |
| For Use With | Toshiba AS3 series AC drives | |
| Additional Information | 120 VAC replacement I/O board for 460 VAC Toshiba drives | |
