| Technical Data | ||
|---|---|---|
| Brand | Penn-Union | |

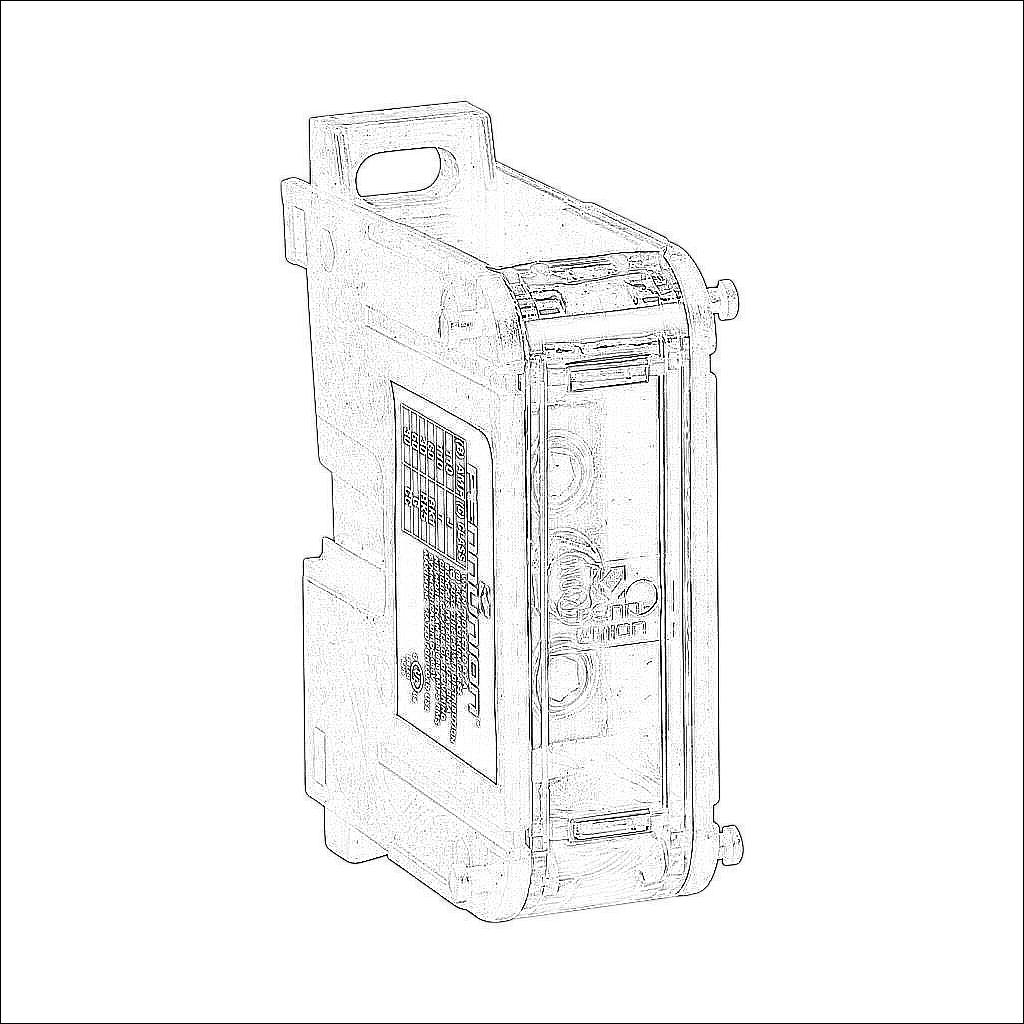

| Item | Splicer/reducer block | |
| Terminal Block Type | Open | |
| Modular | Yes | |
| Finger-safe | Yes | |
| Amperage Rating | 175A | |
| Number of Poles | 1 | |
| Line Side Openings | 1 openings accept 2/0 AWG to 14 AWG Cu/AL | |
| Load Side Openings | 1 openings accept 2/0 AWG to 14 AWG Cu/AL | |
| Mounting | DIN rail or panel | |
| SCCR Rating | 100kA SCCR | |
| UL Rating | UL 1953 listed | |
| IP Rating | IP20 | |
| Additional Information | Suitable for branch and feeder circuits | |
