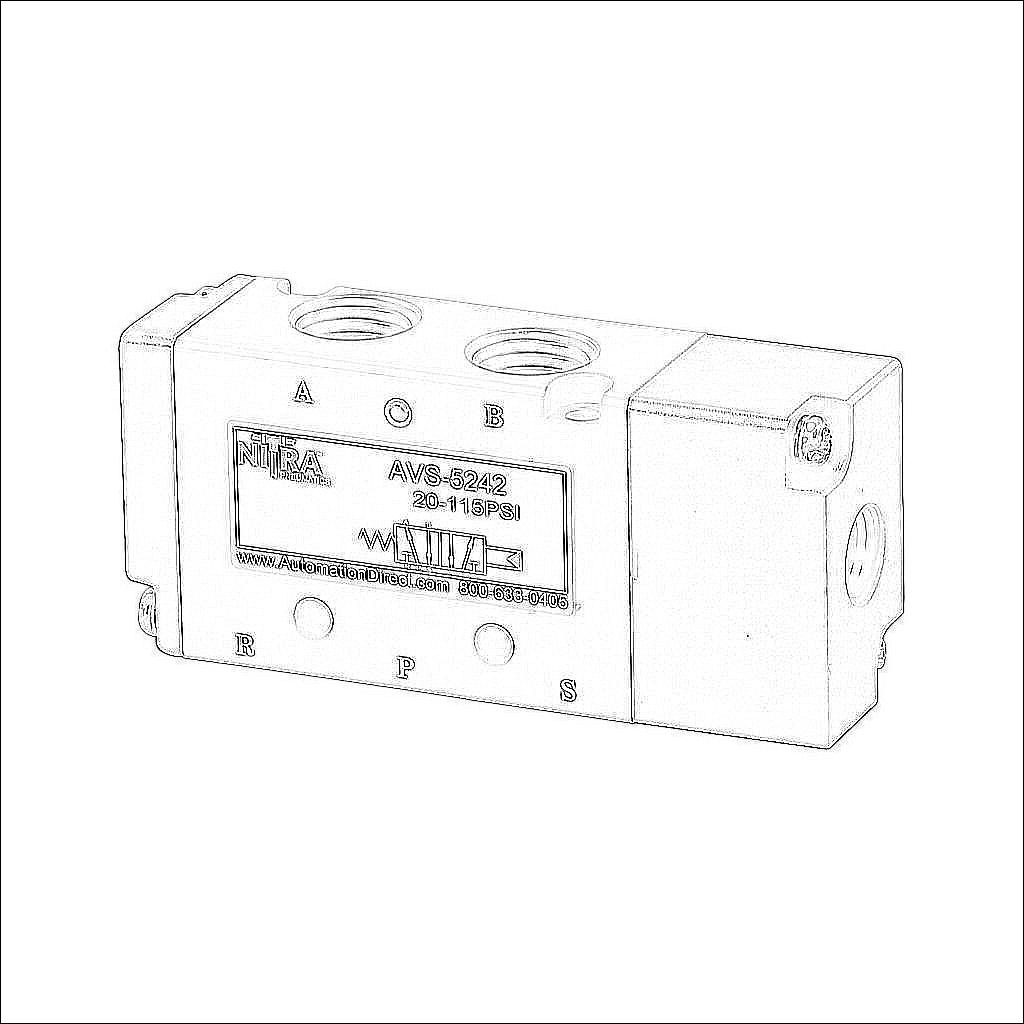

AVS-5242

AVS-5242

NITRA pilot valve, 5-port (4-way), 2-position, single air pilot spring return, (1) 1/4in female NPT inlet(s), (2) 1/4in female NPT outlet(s), (2) 1/8in female NPT exhaust(s), (1) 1/8in female NPT pilot(s), Cv=0.89.

$39.38
/
Technical Data
BrandNITRA
ItemValve
Working FluidPneumatic
Valve TypePilot directional control
Port Quantity5-port (4-way)
Number Of Positions2
ActionSingle air pilot spring return
MountingOptional manifold
Inlet Port(1) 1/4in female NPT
Outlet Port(2) 1/4in female NPT
Exhaust Port(2) 1/8in female NPT
Pilot Port(1) 1/8in female NPT
Flow Coefficient0.89
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
