AVS-5251

AVS-5251

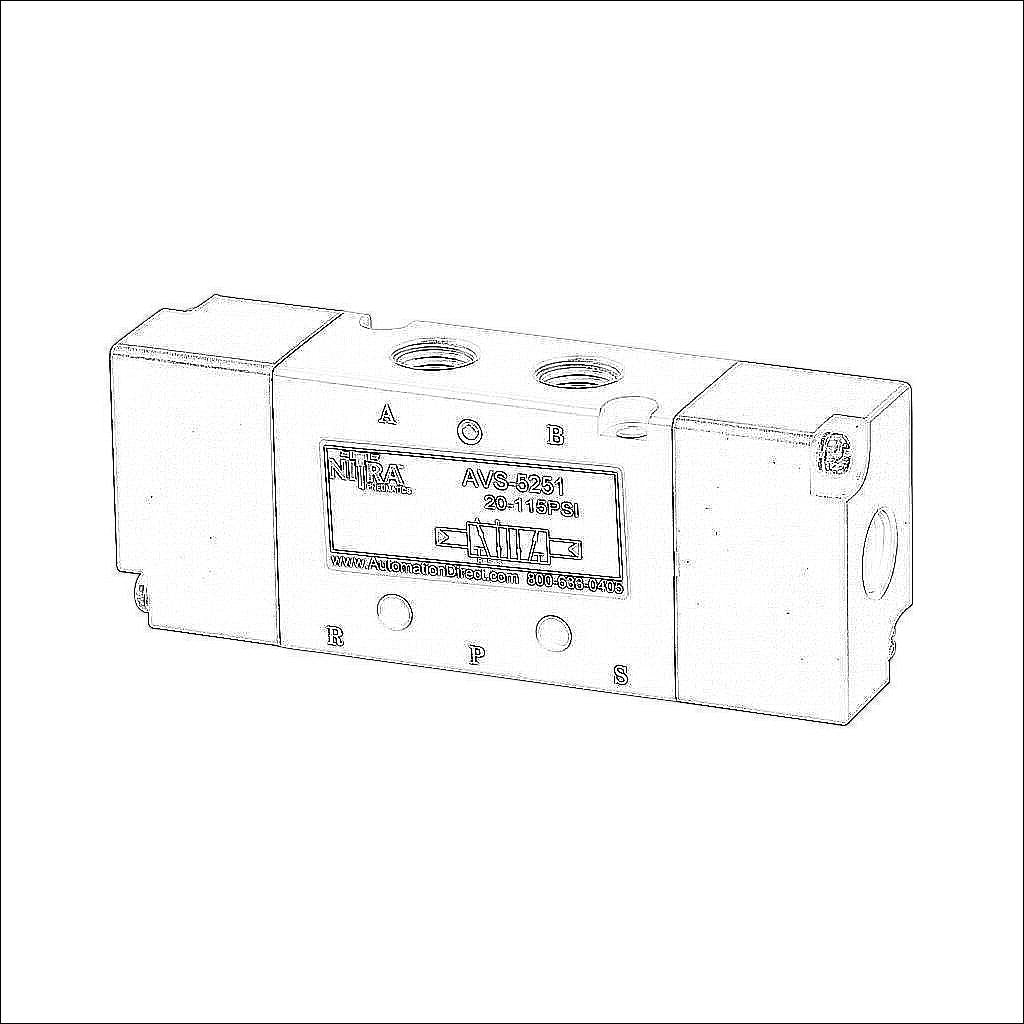

NITRA pilot valve, 5-port (4-way), 2-position, double air pilot, (1) 1/8in female NPT inlet(s), (2) 1/8in female NPT outlet(s), (2) 1/8in female NPT exhaust(s), (2) 1/8in female NPT pilot(s), Cv=0.78.

$48.75
/
Technical Data
BrandNITRA
ItemValve
Working FluidPneumatic
Valve TypePilot directional control
Port Quantity5-port (4-way)
Number Of Positions2
ActionDouble air pilot
MountingOptional manifold
Inlet Port(1) 1/8in female NPT
Outlet Port(2) 1/8in female NPT
Exhaust Port(2) 1/8in female NPT
Pilot Port(2) 1/8in female NPT
Flow Coefficient0.78
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
