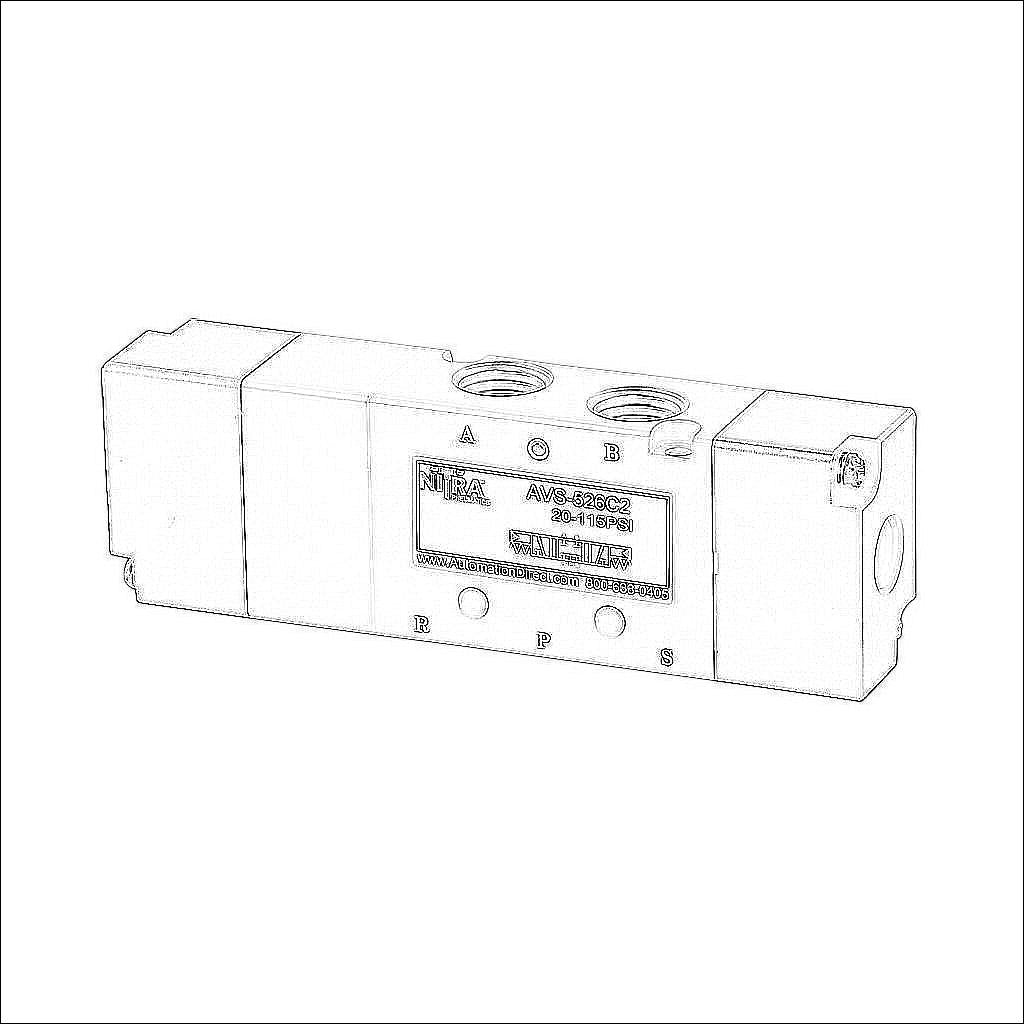

AVS-526C2

AVS-526C2

NITRA pilot valve, 5-port (4-way), 3-position, center closed, double air pilot, (1) 1/4in female NPT inlet(s), (2) 1/4in female NPT outlet(s), (2) 1/8in female NPT exhaust(s), (2) 1/8in female NPT pilot(s), Cv=0.67.

$80
/
Technical Data
BrandNITRA
ItemValve
Working FluidPneumatic
Valve TypePilot directional control
Port Quantity5-port (4-way)
Number Of Positions3
Valve ConfigurationCenter closed
ActionDouble air pilot
MountingOptional manifold
Inlet Port(1) 1/4in female NPT
Outlet Port(2) 1/4in female NPT
Exhaust Port(2) 1/8in female NPT
Pilot Port(2) 1/8in female NPT
Flow Coefficient0.67
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
