AVS-533E3-24D

AVS-533E3-24D

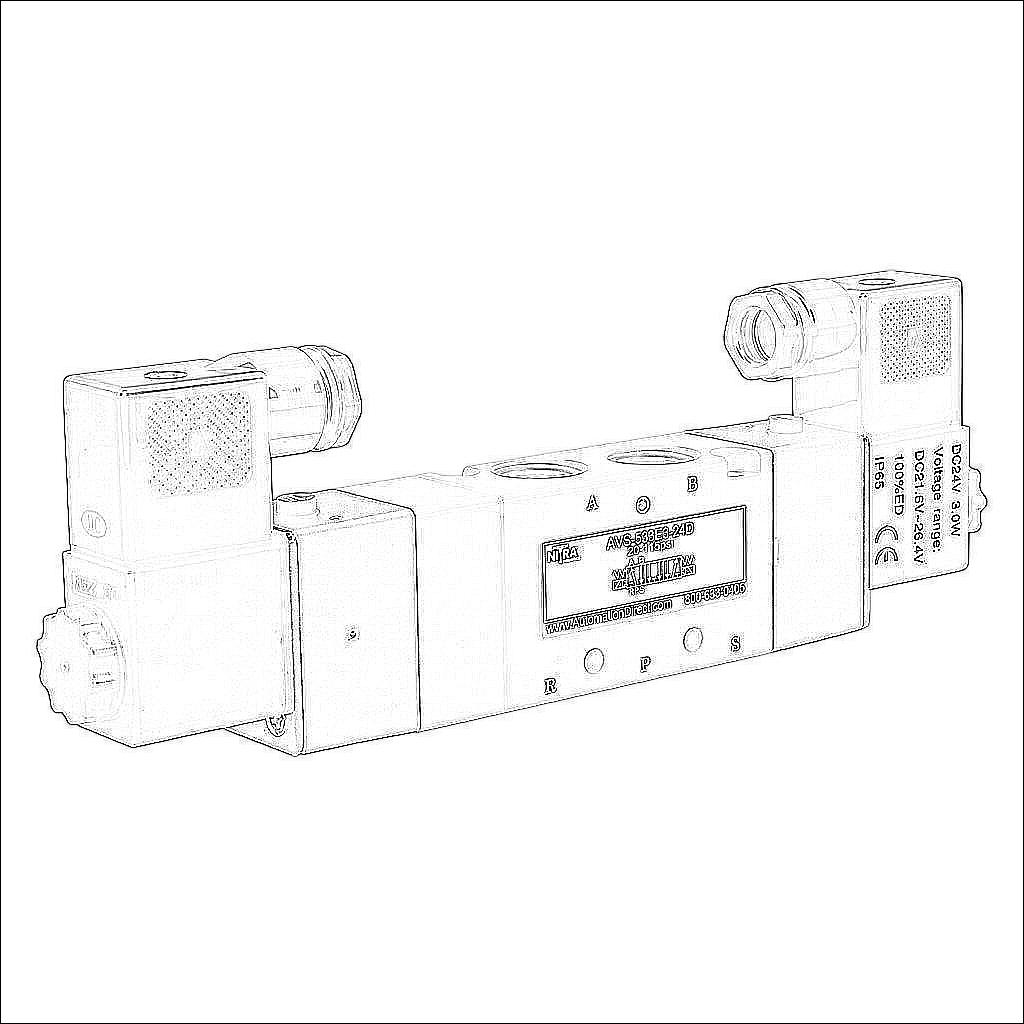

NITRA pneumatic solenoid valve, 5-port (4-way), 3-position, center exhaust, double solenoid, (1) 3/8in female NPT inlet(s), (2) 3/8in female NPT outlet(s), (2) 1/4in female NPT exhaust(s), Cv=1, 24 VDC, 3.0W, 11mm DIN style wiring plug.

$175
/
Technical Data
BrandNITRA
ItemValve
Working FluidPneumatic
Valve TypeSolenoid directional control
Port Quantity5-port (4-way)
Number Of Positions3
Valve ConfigurationCenter exhaust
ActionDouble solenoid
Body MaterialAluminum
MountingOptional manifold
Inlet Port(1) 3/8in female NPT
Outlet Port(2) 3/8in female NPT
Exhaust Port(2) 1/4in female NPT
Manual Override TypeLocking
Flow Coefficient1
Operating Voltage24 VDC
Power Rating3.0W
Electrical Connection11mm DIN style wiring plug
Indicating TypeLED indication
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
