AVS-5343

AVS-5343

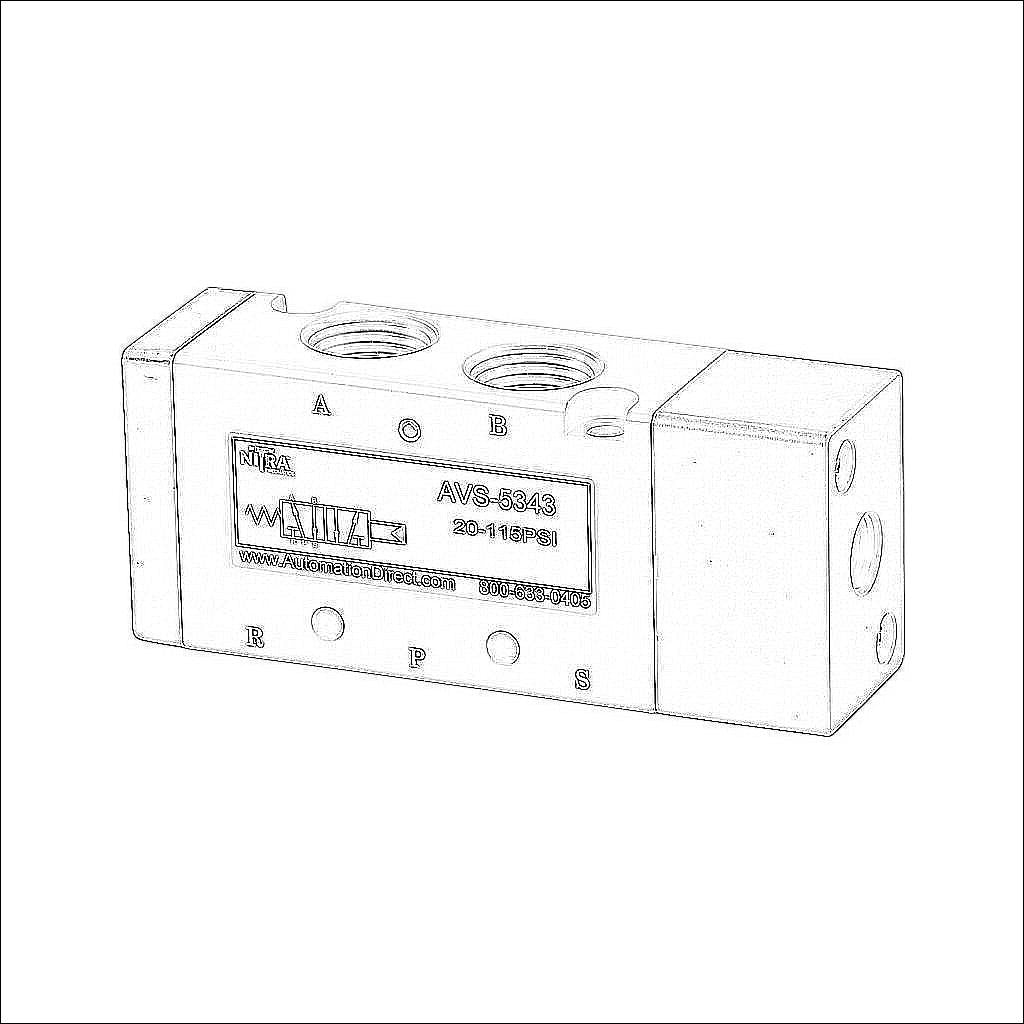

NITRA pilot valve, 5-port (4-way), 2-position, single air pilot spring return, (1) 3/8in female NPT inlet(s), (2) 3/8in female NPT outlet(s), (2) 1/4in female NPT exhaust(s), (1) 1/8in female NPT pilot(s), Cv=1.67.

$55.63
/
Technical Data
BrandNITRA
ItemValve
Working FluidPneumatic
Valve TypePilot directional control
Port Quantity5-port (4-way)
Number Of Positions2
ActionSingle air pilot spring return
MountingOptional manifold
Inlet Port(1) 3/8in female NPT
Outlet Port(2) 3/8in female NPT
Exhaust Port(2) 1/4in female NPT
Pilot Port(1) 1/8in female NPT
Flow Coefficient1.67
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
