AVS-538E1-HL

AVS-538E1-HL

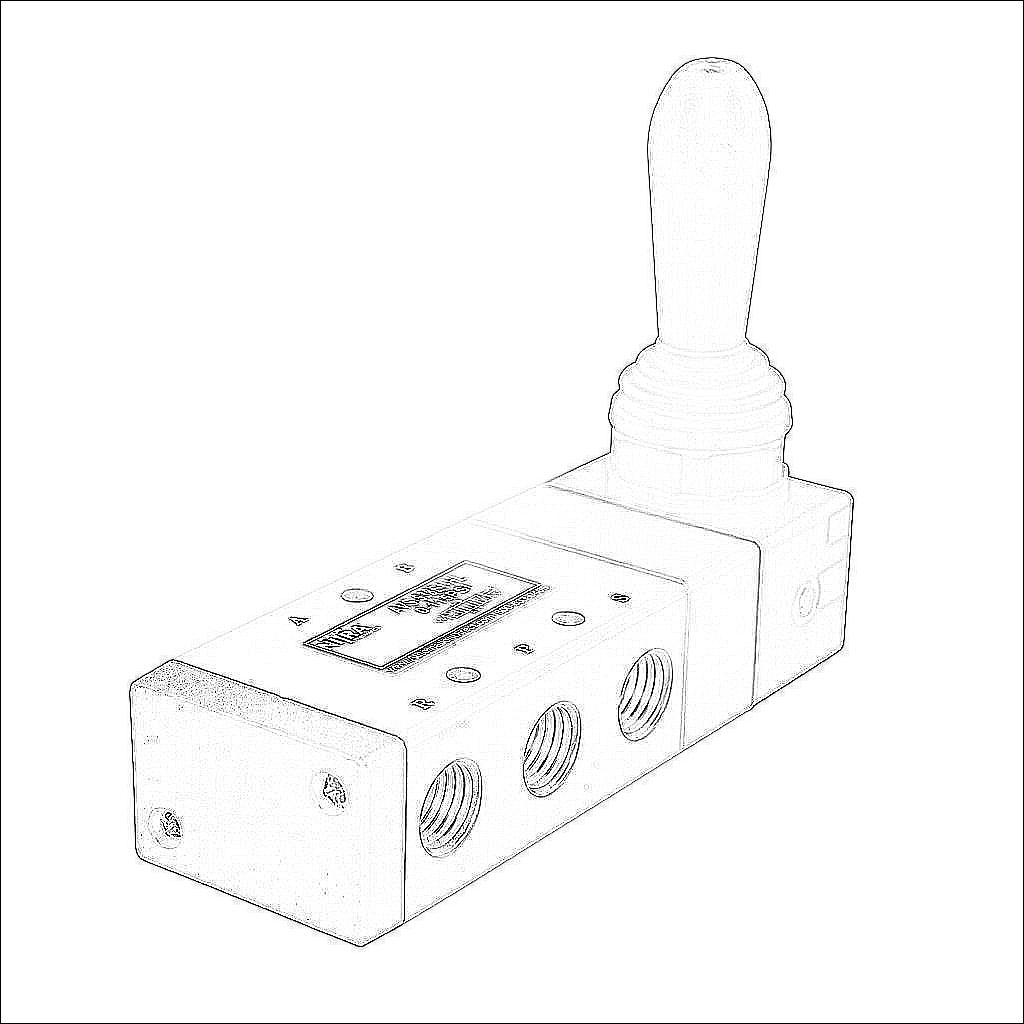

NITRA pneumatic manual valve, 5-port (4-way), 3-position, center exhaust, 90 deg hand lever, spring return, 1/4in female NPT inlet(s), 1/4in female NPT outlet(s), 1/4in female NPT exhaust(s), Cv=1, panel or surface mount.

$100
/
Technical Data
BrandNITRA
ItemValve
Working FluidAir
Valve TypeManual directional control
Port Quantity5-port (4-way)
Number Of Positions3
Valve ConfigurationCenter exhaust
Operator Type90 deg hand lever
ActionSpring return
Body MaterialAluminum alloy
MountingPanel or surface
Inlet Port1/4in female NPT
Outlet Port1/4in female NPT
Exhaust Port1/4in female NPT
StackableNo
Flow Coefficient1
Maximum Operating Pressure115 psi
Minimum Operating Pressure0 psi
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
