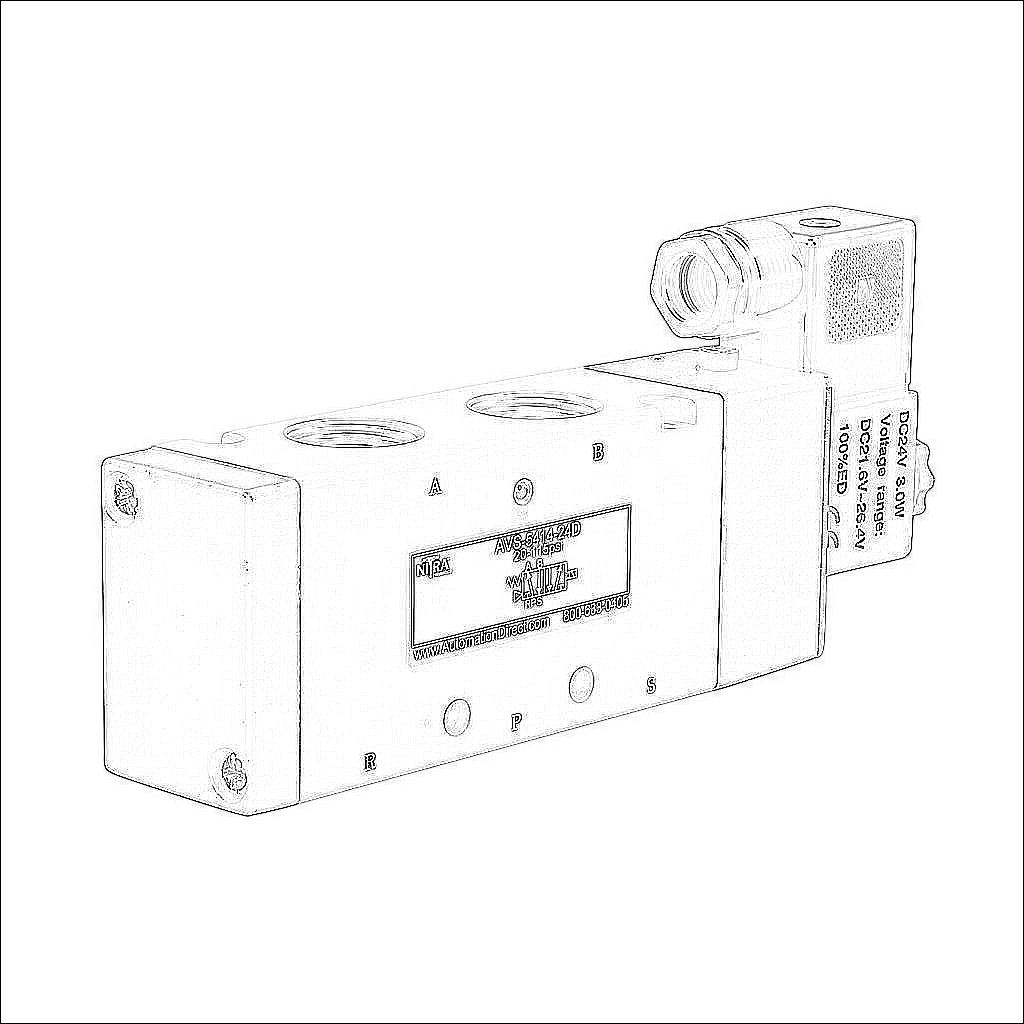

AVS-5414-24D

AVS-5414-24D

NITRA pneumatic solenoid valve, 5-port (4-way), 2-position, single solenoid spring return, (1) 1/2in female NPT inlet(s), (2) 1/2in female NPT outlet(s), (2) 1/2in female NPT exhaust(s), Cv=2.79, 24 VDC, 3.0W, 11mm DIN style wiring plug.

$86.25
/
Technical Data
BrandNITRA
ItemValve
Working FluidPneumatic
Valve TypeSolenoid directional control
Port Quantity5-port (4-way)
Number Of Positions2
ActionSingle solenoid spring return
Body MaterialAluminum
MountingOptional manifold
Inlet Port(1) 1/2in female NPT
Outlet Port(2) 1/2in female NPT
Exhaust Port(2) 1/2in female NPT
Manual Override TypeLocking
Flow Coefficient2.79
Operating Voltage24 VDC
Power Rating3.0W
Electrical Connection11mm DIN style wiring plug
Indicating TypeLED indication
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
