| Technical Data | ||
|---|---|---|
| Brand | Balluff | |

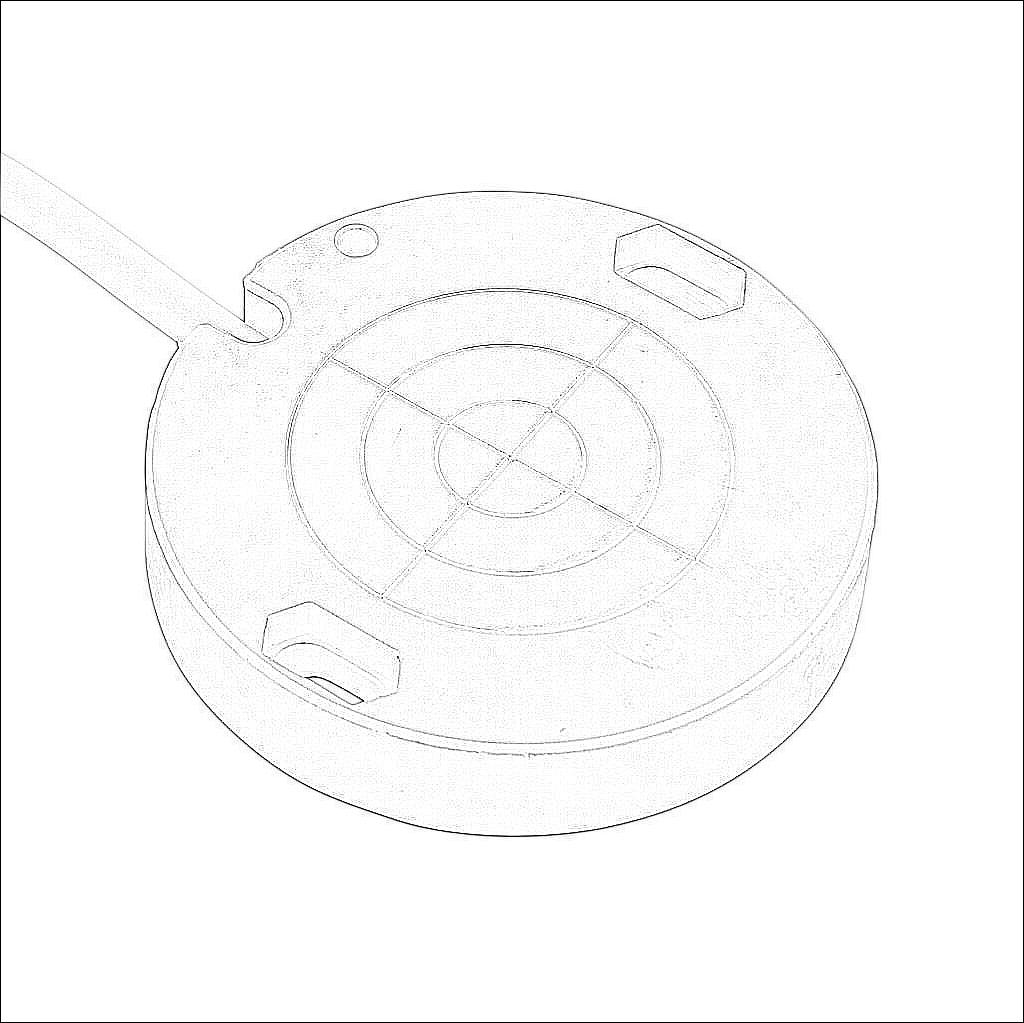

| Item | Proximity sensor | |
| Sensor Type | Capacitive | |
| Application | Standard duty | |
| Shape | Round | |
| Housing Size | 50mm diameter x 10mm body | |
| Housing Material | Polyoxymethylene (POM) | |
| Barrel Type | Smooth | |
| Sensing Face | Top sensing | |
| Adjustable | Yes | |
| Number of Wires | 3 | |
| Switching Output | NPN/PNP | |
| Operation Mode | N.O./N.C. selectable | |
| Sensing Distance | 25mm | |
| Mounting Type | Flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 50 Hz | |
| Operating Voltage | 10-30 VDC | |
| Operating Temperature | -30 to 60 deg C | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP67 | |
| Connection | Pigtail | |
| Cable Length | 6.5ft/2m | |
| Jacket Material | PVC | |
| Includes | Adjustment tool | |
