| Technical Data | ||
|---|---|---|
| Brand | Balluff | |

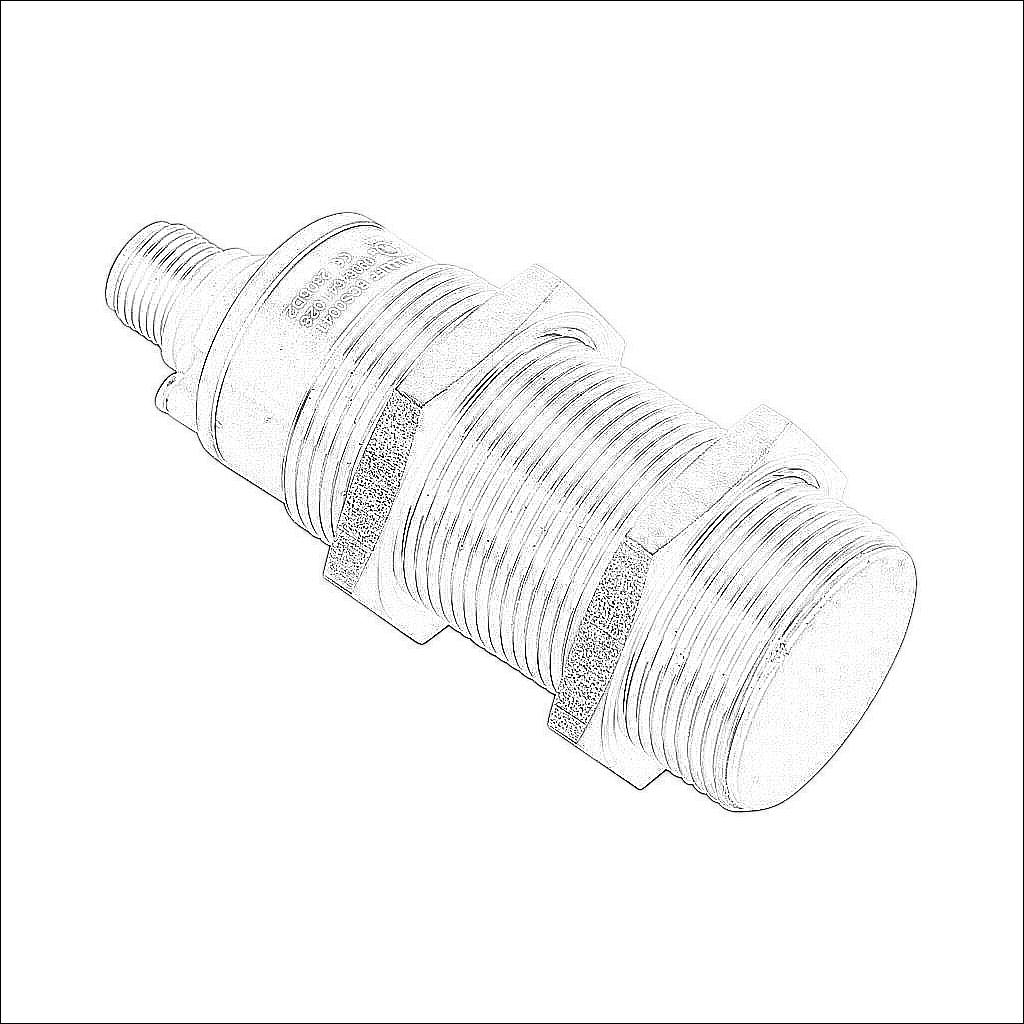

| Item | Proximity sensor | |
| Sensor Type | Capacitive | |
| Application | Standard duty | |
| Shape | Tubular | |
| Housing Size | 30mm diameter x 87mm body | |
| Housing Material | Stainless steel | |
| Barrel Type | Threaded | |
| Adjustable | Yes | |
| Number of Wires | 3 | |
| Switching Output | PNP | |
| Operation Mode | N.O./N.C. selectable | |
| Sensing Distance | 20mm | |
| Mounting Type | Flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 100 Hz | |
| Operating Voltage | 10-35 VDC | |
| Operating Temperature | -30 to 70 deg C | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP66 | |
| Connection | 4-pin M12 quick-disconnect | |
| Includes | Mounting hardware and adjustment tool | |
| Additional Information | Purchase cable separately | |
