| Technical Data | ||
|---|---|---|
| Brand | Balluff | |

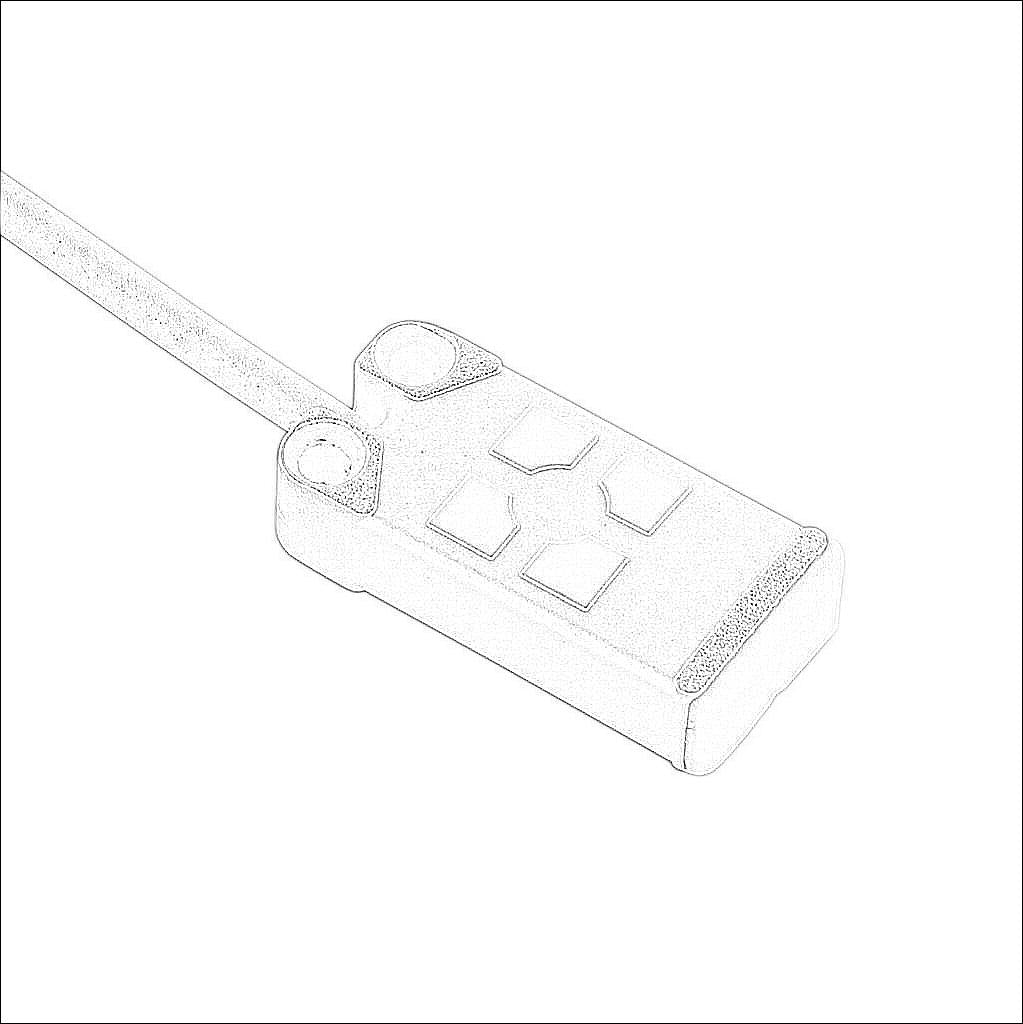

| Item | Proximity sensor | |
| Sensor Type | Capacitive | |
| Application | Standard duty | |
| Shape | Rectangular | |
| Housing Size | 34 x 16 x 8mm body | |
| Housing Material | Polypropylene (PP) | |
| Sensing Face | Top sensing | |
| Adjustable | Yes | |
| Number of Wires | 4 | |
| Switching Output | PNP | |
| Operation Mode | N.O. | |
| Sensing Distance | 8mm | |
| Mounting Type | Flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 100 Hz | |
| Operating Voltage | 12-30 VDC | |
| Operating Temperature | -30 to 70 deg C | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP67 | |
| Connection | 4-pin M8 quick-disconnect | |
| Standard I/O Mode Supported | No | |
| Cable Length | 0.9ft/0.3m | |
| Jacket Material | 316L stainless steel | |
| Includes | Mounting hardware and adjustment tool | |
| Additional Information | Purchase cable separately | |
