| Technical Data | ||
|---|---|---|
| Brand | Balluff | |

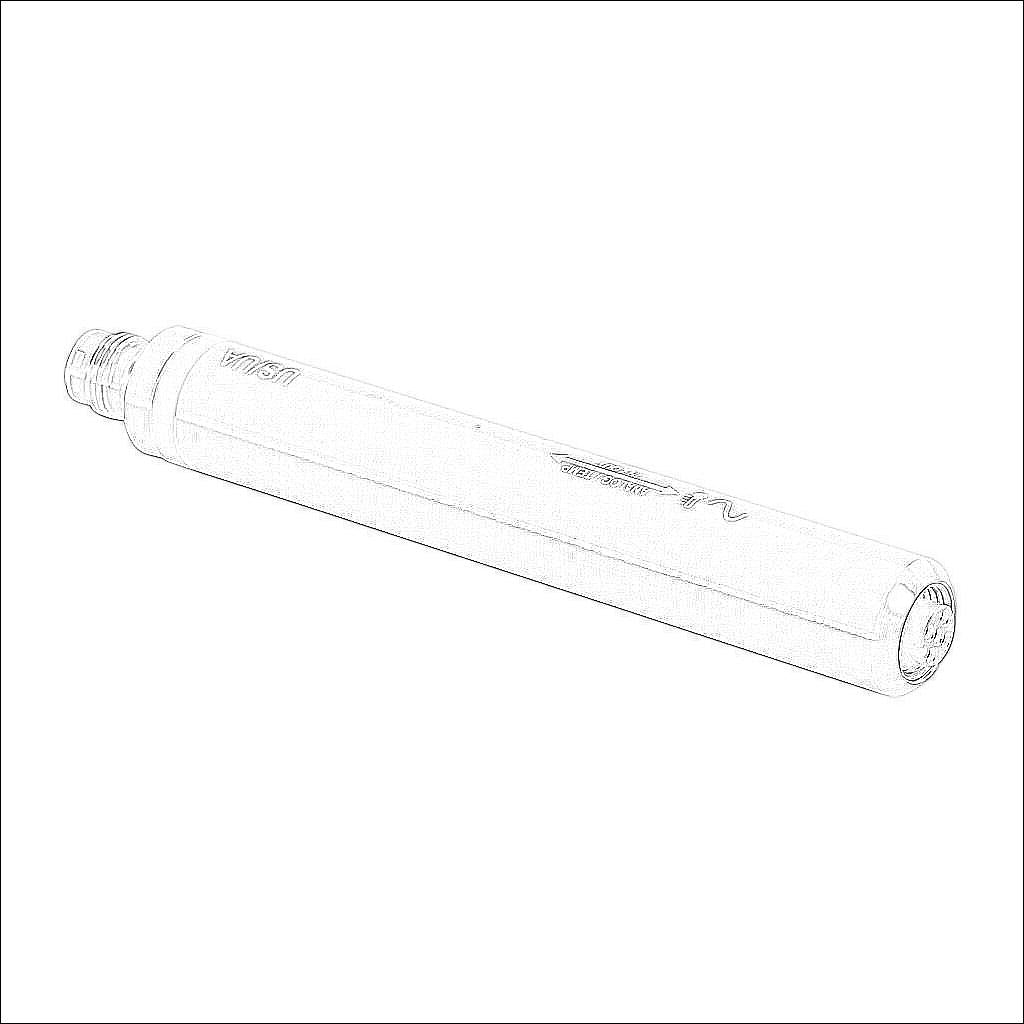

| Item | Combo converter | |
| I/O Module Type | Temperature/analog | |
| Number Of Channels | 1 | |
| Number Of Input Channels | 1 | |
| Input Signal Type(s) | Current/voltage/RTD/thermocouple | |
| Analog Input Signal Type | Current, voltage, RTD and thermocouple | |
| Input RTD Signal Types | Pt100 and Pt1000 | |
| Input Thermocouple Signal Type | J, K | |
| Number of Non-Isolated Analog Input Commons | 1 | |
| Number of Points per Analog Input Common | 1 | |
| Resolution | 16-bit | |
| Input Resolution | 16-bit | |
| Input Current Signal Range | 0-20 mA and 4-20 mA | |
| Input Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC | |
| Output Signal Type | Current/voltage | |
| Analog Output Signal Type | Current/voltage | |
| Number of Non-Isolated Analog Output Commons | 1 | |
| Number Of Output Channels | 1 | |
| Number of Points per Analog Output Common | 1 | |
| Output Current Signal Range | 0-20 mA and 4-20 mA | |
| Output Resolution | 16-bit | |
| Output Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC | |
| Analog I/O Port Type(s) | (1) 5-pin M12 A-coded | |
| Communication Port and Connection Type(s) |
| |
| Port Protocol(s) |
| |
| Port Speed(s) |
| |
| IO-Link Version | IO-Link v1.1 | |
| External Power Requirement | 24 VDC | |
| Housing Material | Stainless steel | |
| IP Rating | IP65 and IP67 | |
| Requires | IO-Link master | |
| Programming Software | None, configure via IO-Link master | |
