| Technical Data | ||
|---|---|---|
| Brand | Balluff | |

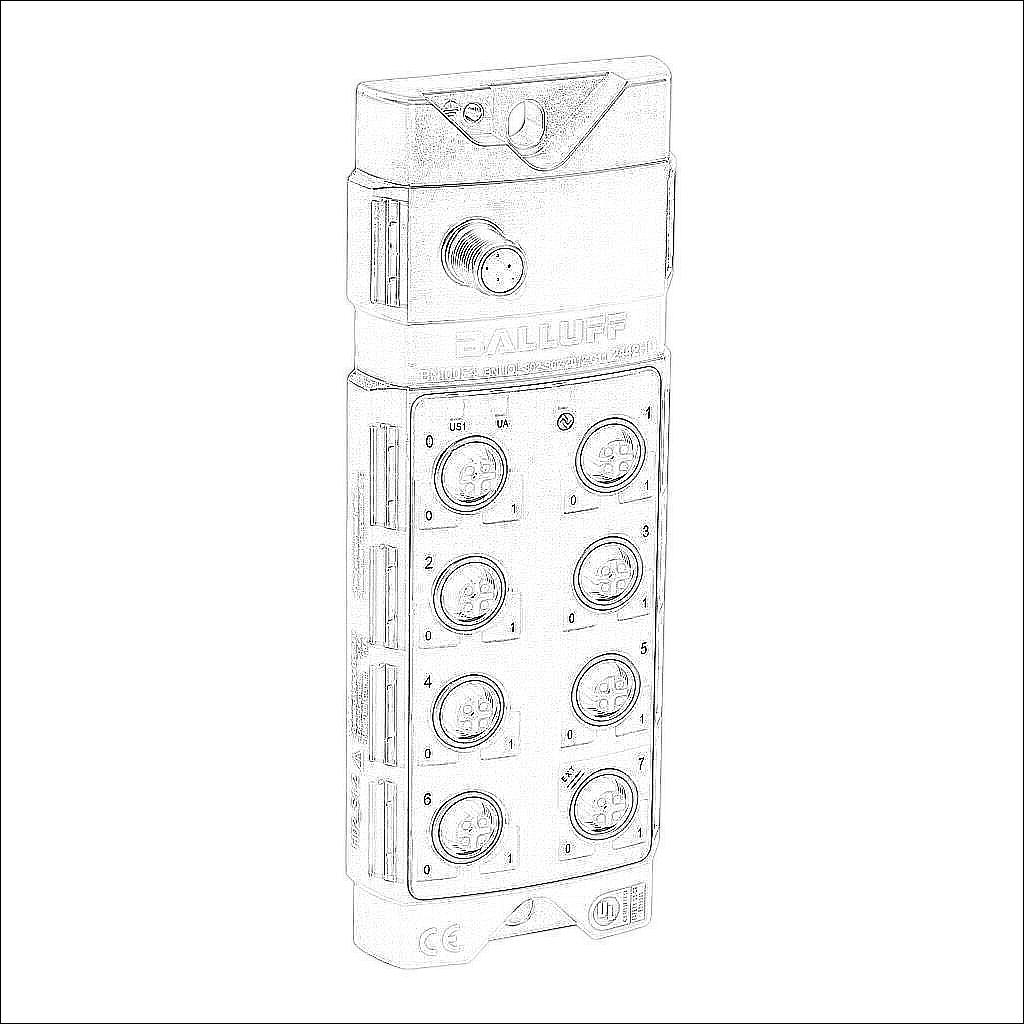

| Item | IO-Link hub | |
| Number of Discrete I/O Points | Up to (16) | |
| Number of Discrete Input Points | Up to (16) | |
| Discrete I/O Port Type(s) | (8) 5-pin M12 A-coded | |
| Nominal Input Voltage | 24 VDC | |
| Discrete Input Type | Sinking | |
| Number of Non-Isolated Discrete Input Commons | 1 | |
| Number of Points per Discrete Input Common | 16 | |
| Nominal Output Voltage | 24 VDC | |
| Discrete Output Type | Sourcing | |
| Number of Non-Isolated Discrete Output Commons | 1 | |
| Number of Points per Discrete Output Common | 16 | |
| IO-Link Version | IO-Link v1.1 | |
| Communication Port and Connection Type(s) |
| |
| Port Protocol(s) |
| |
| Port Speed(s) |
| |
| External Power Requirement | 24 VDC | |
| Amperage Rating | 4A | |
| Load Current | 0.2A/port | |
| Indicator | LED | |
| Housing Material | Die-cast zinc nickel-plated | |
| IP Rating | IP67 | |
| Temperature Rating | -5 to 55 deg C | |
| Includes | Marking tags | |
| Requires | IO-Link master | |
| Programming Software | None, configure via IO-Link master | |
