| Technical Data | ||
|---|---|---|
| Brand | Bryant | |

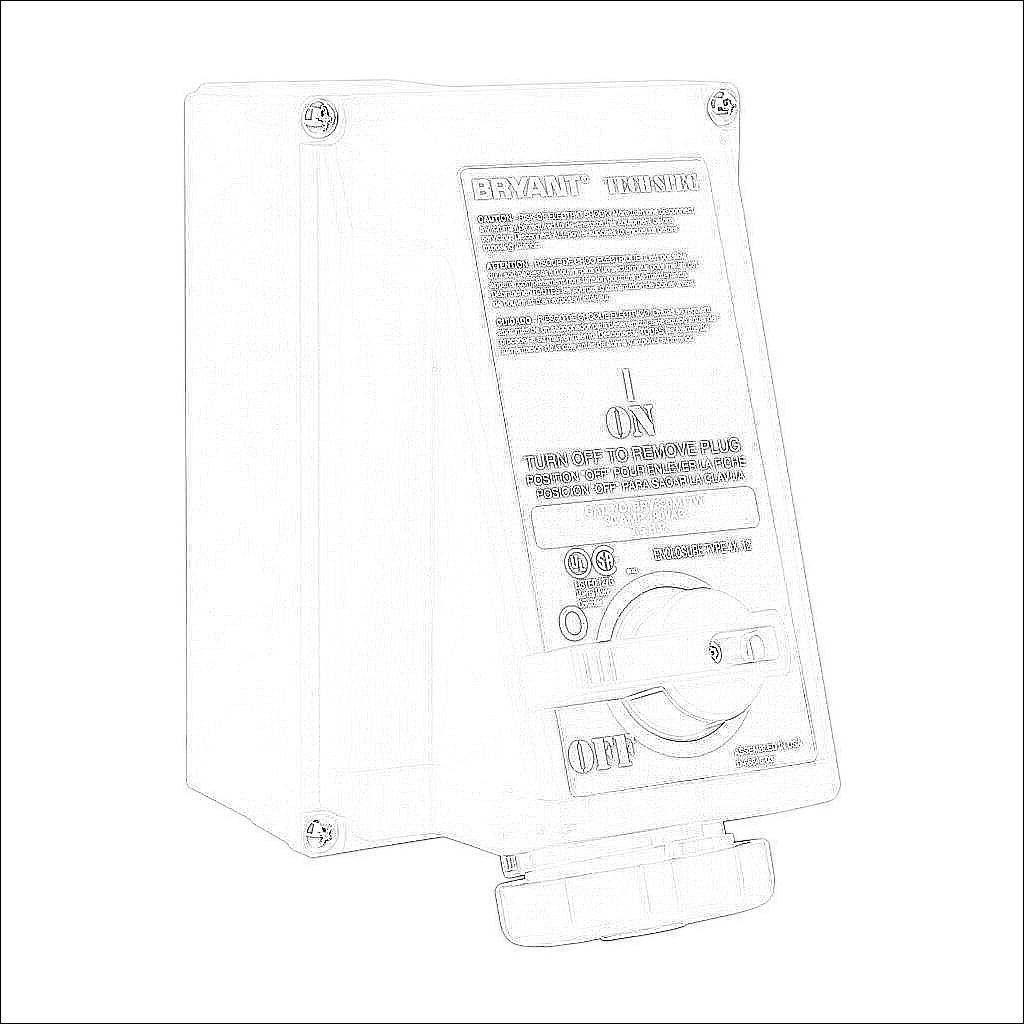

| Item | Pin and sleeve mechanical interlock | |
| Handle Type | Rotary | |
| Body Type | Enclosed | |
| Fusible | No | |
| Load Break Capable | Yes | |
| Number of Poles | 3 | |
| Voltage Rating | 600 VAC | |
| Amperage Rating | 30A | |
| SCCR Rating | 10kA SCCR | |
| Connection | 1-phase, 2-pole, 3-wire, 7 hour pin and sleeve receptacle | |
| Mounting | Wall | |
| UL Rating | UL 508 rated | |
| Housing Size | 10.1in x6.9in x7.8in | |
| Includes | Watertight conduit hub and grounding plate | |
| Additional Information | Lockout/tagout capable. Suitable as motor disconnect | |
