| Technical Data | ||
|---|---|---|
| Brand | Autonics | |

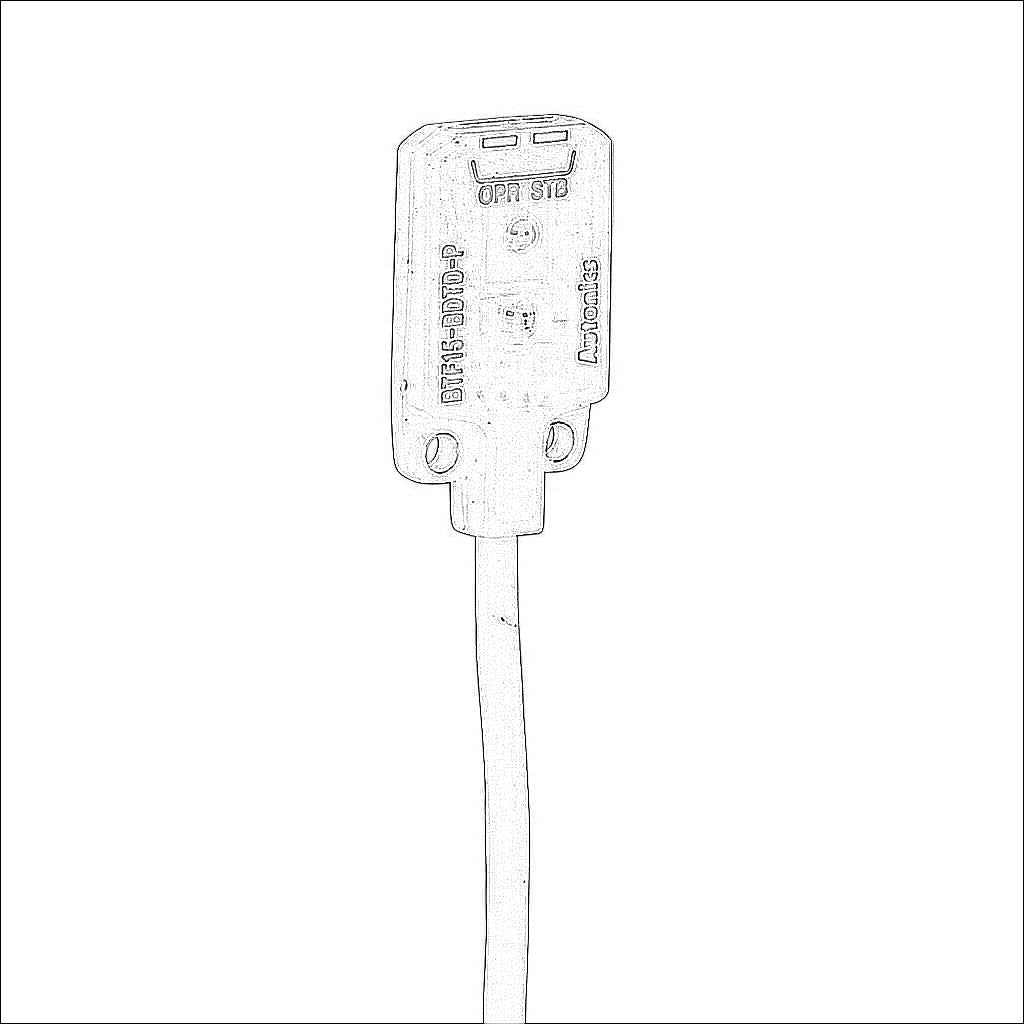

| Item | Photoelectric sensor | |
| Shape | Rectangular | |
| Housing Size | 20.8 x 13 x 3.7mm | |
| IP Rating | IP67 | |
| Application | Small space and standard duty | |
| Housing Material | Polybutylene terephthalate | |
| Sensing Method | Diffuse with background suppression | |
| Operating Voltage | 10.8-26.4 VDC | |
| Number of Wires | 3 | |
| Switching Output | PNP | |
| Sensing Distance | 1-15mm | |
| Operation Mode | Dark-on | |
| Switching Frequency | 1 kHz | |
| Light Emission | Visible red | |
| IO-Link Compatible | No | |
| Cable Length | 6.5ft/2m | |
| Jacket Material | PVC | |
| Connection | Pigtail | |
| Conductor Size | 28 AWG | |
| Includes | Mounting hardware | |
