| Technical Data | ||
|---|---|---|

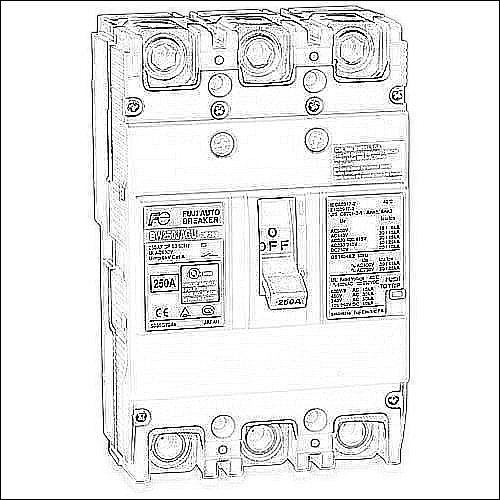

| Brand | Fuji Electric | |
| Item | Circuit breaker | |
| Circuit Breaker Type | Molded case | |
| Circuit Type | Feeder and branch | |
| Current-Limiting | No | |
| Frame Size | 250A | |
| Amperage Rating | 250A | |
| Voltage Rating | 600 VAC/250 VDC | |
| Number of Poles | 3 | |
| Trip Curve | Characteristics | |
| Trip Type | Thermal magnetic | |
| Interrupting Rating | 30kA @ 480 VAC | |
| UL Rating | UL 489 listed | |
| Mounting | Panel | |
| HACR Rated | No | |
| Reverse Feed Capable | Yes | |
| Includes | Line and load lug terminals and terminal covers | |
| Manufacturer Part Number | BW250JAGU-3P250SB-ADC | |
