| Technical Data | ||
|---|---|---|
| Brand | BRX | |

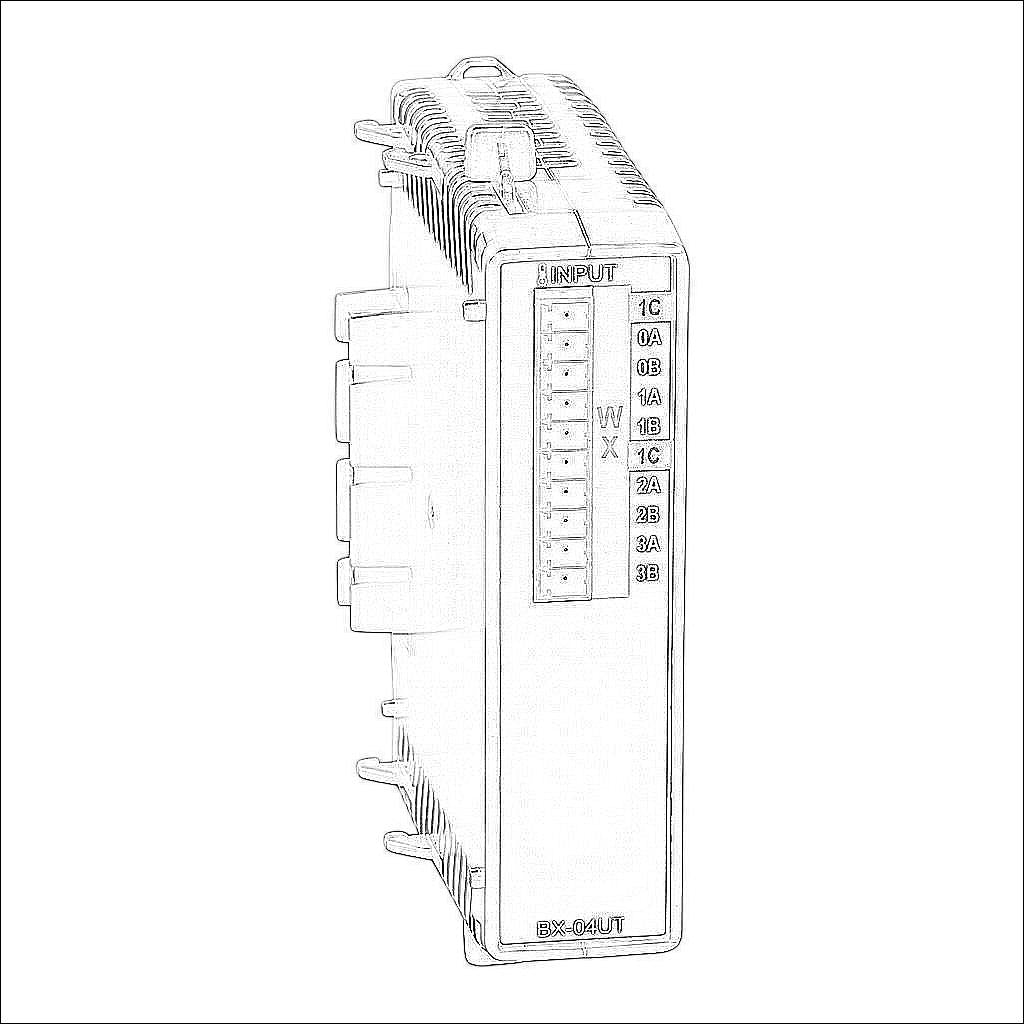

| Item | Input module | |
| I/O Module Type | Universal temperature | |
| Input Signal Type(s) | RTD/thermocouple/thermistor | |
| Number Of Channels | 4 | |
| Input Resolution | 24-bit | |
| Input RTD Signal Types | Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000 and Ni120 | |
| Input Thermistor Signal Types | 2252, 10K-AN Type 3, 5K, 3K and 30K | |
| Input Thermocouple Signal Type | J, E, K, R, S, T, B, N | |
| Input Voltage Signal Range | +/- 31.25 mVDC, +/- 62.5 mVDC, +/- 125 mVDC and +/- 1 VDC | |
| Number of Non-Isolated Input Commons | 1 | |
| Includes | (1) BX-RTB05 screw terminal block kit | |
| Programming Software | Do-more Designer programming software v2.7 or later | |
| Additional Information | Optional BX-RTB10-1 or BX-RTB10-2 terminal block kits sold separately. Pre-wired ZIPLinks not available for temperature modules | |
