| Technical Data | ||
|---|---|---|
| Brand | BRX | |

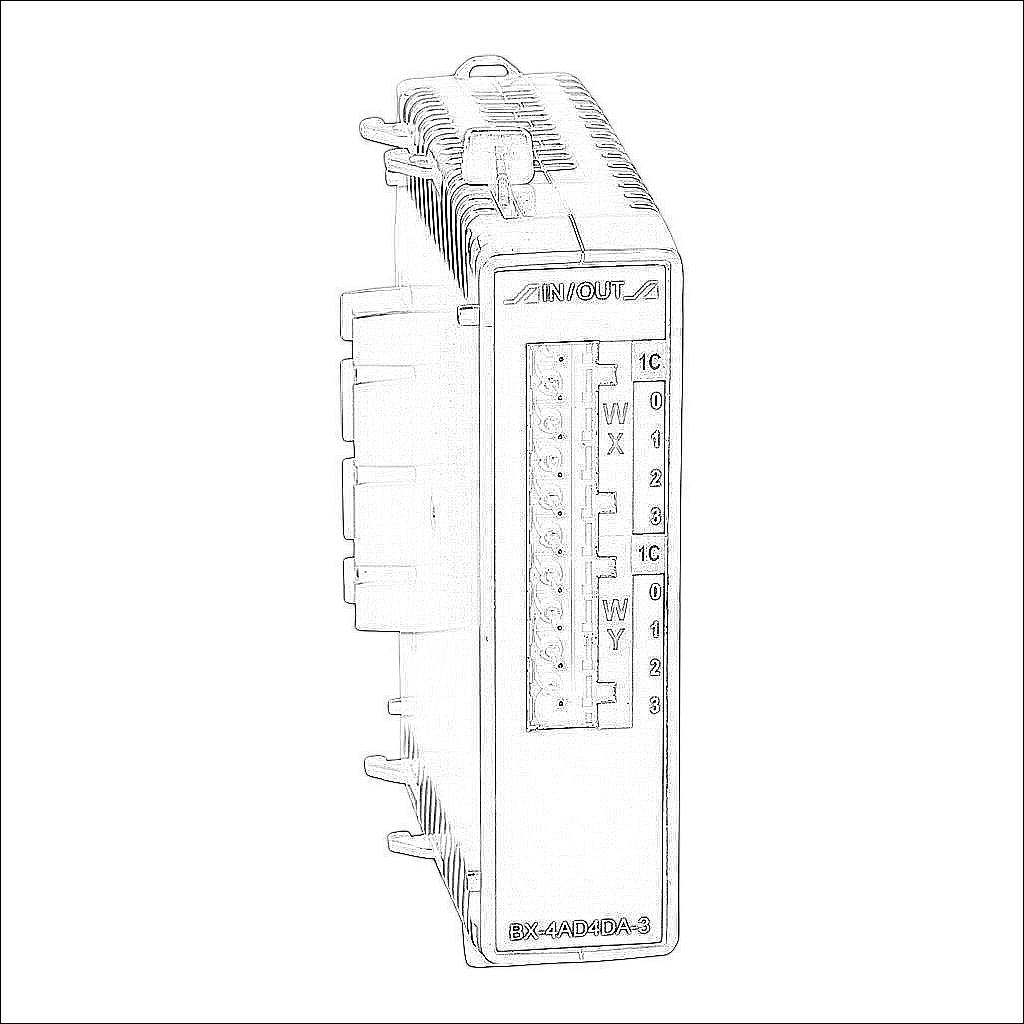

| Item | Combo module | |
| I/O Module Type | Analog | |
| Number of Input Channels | 4 | |
| Input Signal Type(s) | Current/voltage | |
| Analog Input Type | Sinking | |
| Number of Non-Isolated Input Commons | 1 | |
| Input Resolution | 15-bit and 16-bit | |
| Input Current Signal Range | 0-20 mA, +/- 20 mA and 4-20 mA | |
| Input Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC | |
| Number of Output Channels | 4 | |
| Output Signal Type | Current/voltage | |
| Analog Output Type | Sinking/sourcing | |
| Number of Non-Isolated Output Commons | 1 | |
| Output Resolution | 15-bit and 16-bit | |
| Output Current Signal Range | 0-20 mA, +/- 20 mA and 4-20 mA | |
| Output Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC | |
| Requires | BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables | |
| Programming Software | Do-more Designer programming software v2.7 or later | |
