| Technical Data | ||
|---|---|---|
| Brand | BRX | |

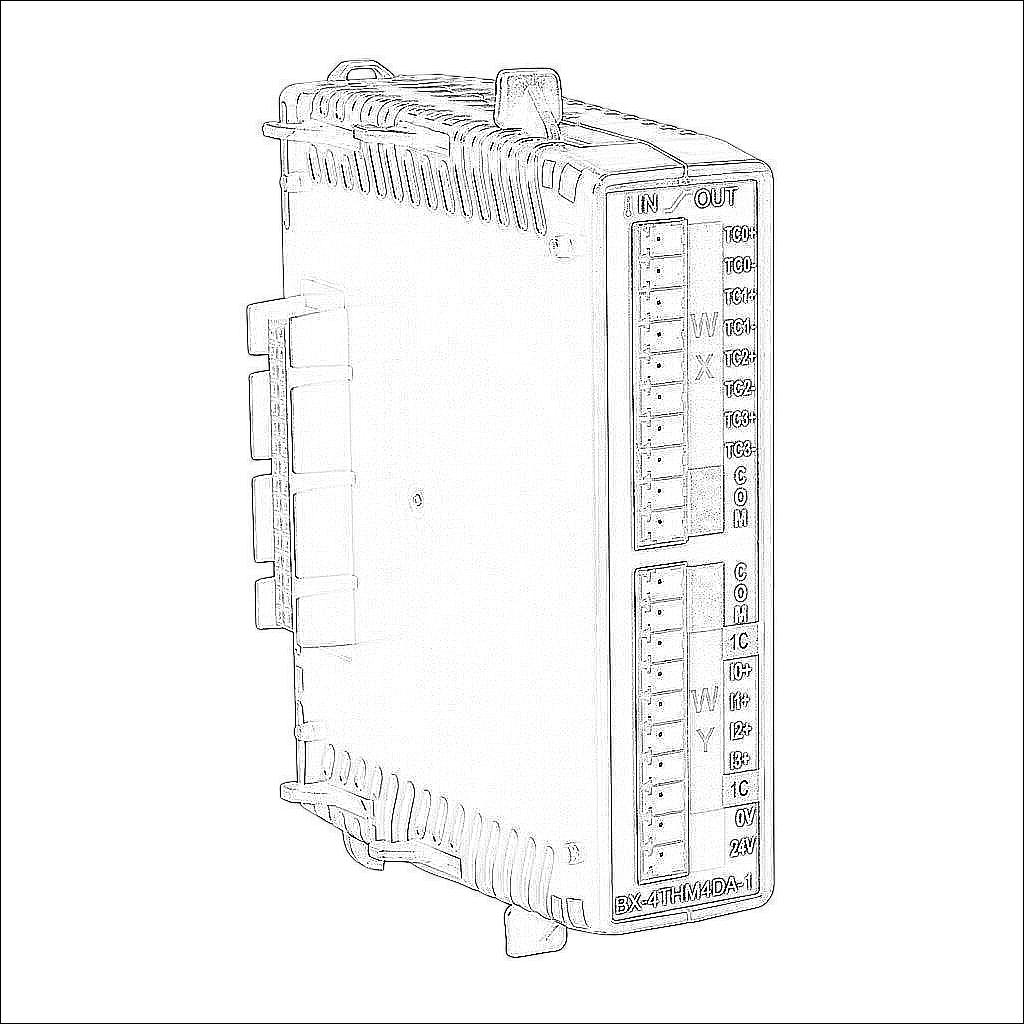

| Item | Combo module | |
| I/O Module Type | Temperature | |
| Input Signal Type(s) | Thermocouple | |
| Number Of Input Channels | 4 | |
| Input Thermocouple Signal Type | J, E, K, R, S, T, B, N, C | |
| Input Voltage Signal Range | 0-1.25 VDC, 0-39.0625 mVDC, +/- 39.0625 mVDC, +/- 78.125 mVDC, 0-156 mVDC and +/- 156 mVDC | |
| Number of Non-Isolated Input Commons | 1 | |
| Isolated Channels | No | |
| Input Resolution | 16-bit | |
| Number Of Output Channels | 4 | |
| Output Signal Type | Current | |
| Analog Output Type | Sourcing | |
| Number of Non-Isolated Output Commons | 1 | |
| Output Resolution | 16-bit | |
| Output Current Signal Range | 0-20 mA and 4-20 mA | |
| External Power Requirement | 24 VDC | |
| Includes | (1) BX-RTB10 screw terminal block kit | |
| Programming Software | Do-more Designer programming software v2.6 or later | |
