| Technical Data | ||
|---|---|---|
| Brand | BRX | |

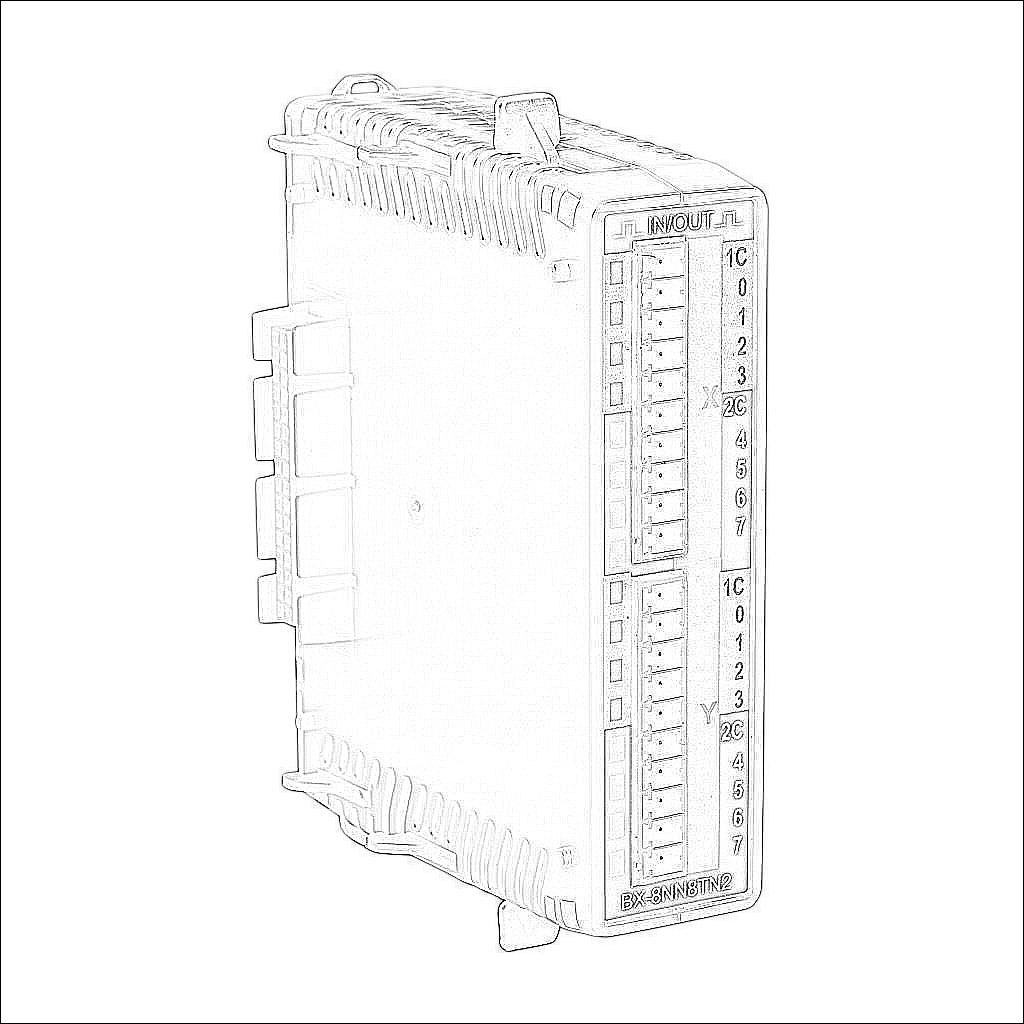

| Item | Combo module | |
| I/O Module Type | Discrete | |
| Number of Input Points | 8 | |
| Nominal Input Voltage | 48 VDC | |
| Discrete Input Type | Sinking/sourcing | |
| Number of Non-Isolated Discrete Input Commons | 2 | |
| Number of Points per Discrete Input Common | 4 | |
| Number of Output Points | 8 | |
| Nominal Output Voltage | 48 VDC | |
| Discrete Output Type | Sourcing | |
| Number of Non-Isolated Discrete Output Commons | 2 | |
| Number of Points per Discrete Output Common | 4 | |
| Load Current | 1A/point | |
| Fuse Type | User-supplied external fuse | |
| External Power Requirement | 48 VDC | |
| Requires | BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables | |
| Programming Software | Do-more Designer programming software v2.11 or later | |
