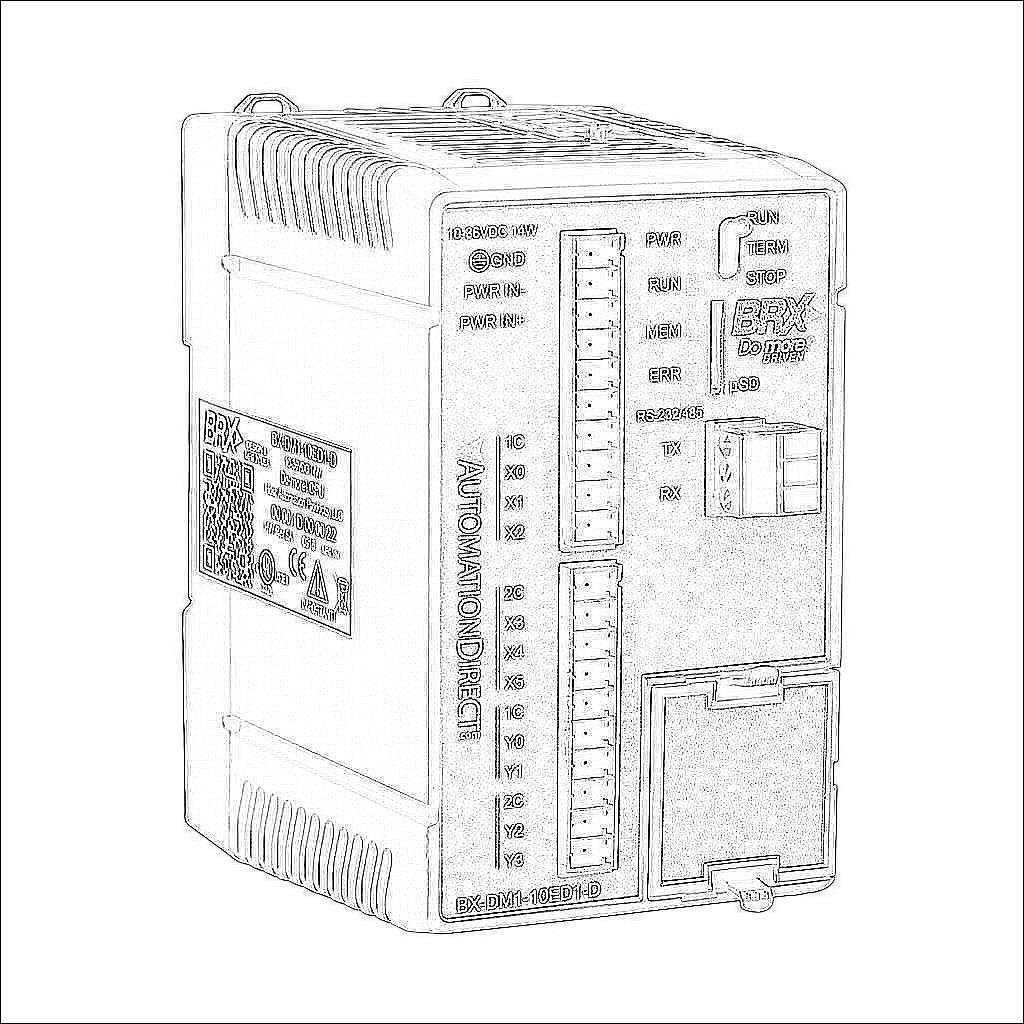

BX-DM1-10ED1-D

BX-DM1-10ED1-D

BRX Do-more PLC, 12-24 VDC required, serial port, battery backup, microSD card slot, Discrete Input: 6-point, AC/DC, Discrete Output: 4-point, sinking.

$415
/
Technical Data
BrandBRX Do-more
ItemPLC
Total Memory192k words
Ladder Memory64k words
User Data Memory128k words
Removable Media TypeMicroSD card slot
Programming LanguageLadder
Programming SoftwareDo-more Designer programming software v2.0 or later
Communication Port and Connection Type(s)
  • (1) RS-232/RS-485 (3-pin terminal)
Port Protocol(s)
  • Do-more protocol
  • Modbus RTU Master/Slave
  • ASCII In/out
  • K-sequence Slave
  • webserver (non-secure HTTP)
  • programming and monitoring
Port Speed(s)
  • up to 115.2k baud
Real Time Clock/CalendarYes
Retentive MemoryYes
Battery BackupYes
Maximum Expansion Modules Allowed8
External Power Requirement12-24 VDC
Number of Discrete Input Points6
Nominal Input Voltage12-24 VAC/VDC
Voltage TypeAC/DC
Discrete Input TypeSinking/sourcing
Number of Isolated Discrete Input Commons2
Number of Points per Discrete Input Common3
Frequency Response250 kHz
Number of Discrete Output Points4
Nominal Output Voltage12-24 VDC
Discrete Output TypeSinking
Load Current0.5A/point
Number of Isolated Discrete Output Commons2
Number of Points per Discrete Output Common2
Maximum Switching Frequency250 kHz
Maximum Number of PID Loops100+ (configurable to memory limit)
Number of High-Speed Capable Input Points6
High-Speed Counter(s)
  • up to (3) up counters
  • up to (3) down counters
  • up to (3) up/down counters
  • up to (3) pulse/direction (bi-directional) counters
  • up to (3) quadrature (A and B) counters
  • up to (3) quadrature (A and B with Z) counters
Position Scaling
  • up to (3) up counters
  • up to (3) down counters
  • up to (3) up/down counters
  • up to (3) pulse/direction (bi-directional) counters
  • up to (3) quadrature (A and B) counters
  • up to (3) quadrature (A and B with Z) counters
Interval Measurement
  • up to (3) single input (edge) timers
  • up to (3) dual input (dual edge) timers
Duration Measurement
  • up to (3) single input (edge) timers
Frequency Measurement
  • up to (3) single input up counters
  • up to (3) single input down counters
  • up to (3) pulse/direction (bi-directional) counters
  • up to (3) quadrature input (A and B) counters
  • up to (3) quadrature (A and B with Z) counters
  • up to (3) edge timers interval scaling
  • up to (3) dual edge timers interval scaling
Interrupt(s)
  • up to (4) input interrupts
  • up to (4) timer interrupts
  • up to (4) match register interrupts
Table-Driven Input(s)
  • up to (4) programmable limit switches
  • up to (4) preset tables
Number of High-Speed Capable Output Points2
Output Pulse Mode(s)
  • up to (4) virtual axes
  • up to (2) PTO linear step/direction outputs
  • up to (1) PTO rotary clockwise/counter-clockwise (CW/CCW) output
  • up to (1) PTO quadrature (A and B) output
  • up to (2) PWM pulse width modulation outputs
Axis Profile(s)
  • relative/absolute positioning
  • velocity mode
  • trapezoid
  • S-curve
  • electronic gearing
  • camming
  • following
  • homing
  • jogging
  • linear interpolation
  • online edit
  • x-y trend view
IncludesBX-RTB03S terminal block and D0-MC-BAT battery
RequiresBX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables
Dangerous Goods
  • Battery Installed: Yes
  • Packaging Instructions: 970
  • UN Number: UN3091
  • Hazard Type: Lithium Batteries
  • Battery Type: Button
  • Lithium Content: 0.07
  • Replacement Battery: D0-MC-BAT
  • Generic Battery: CR2032
