BX-DM1-36ER

BX-DM1-36ER

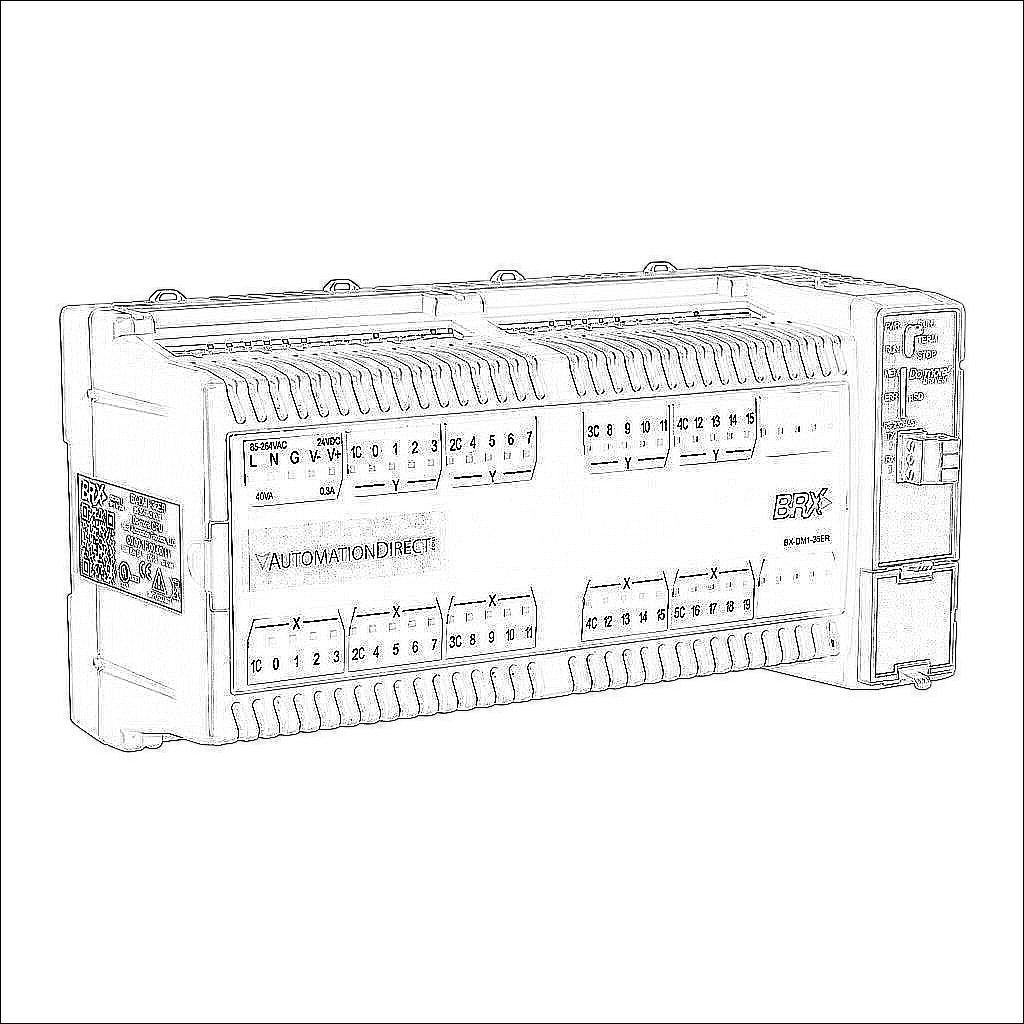

BRX Do-more PLC, 120-240 VAC required, serial port, battery backup, microSD card slot, Discrete Input: 20-point, AC/DC, Discrete Output: 16-point, relay.

$555
/
Technical Data
BrandBRX Do-more
ItemPLC
Total Memory192k words
Ladder Memory64k words
User Data Memory128k words
Removable Media TypeMicroSD card slot
Programming LanguageLadder
Programming SoftwareDo-more Designer programming software v2.0 or later
Communication Port and Connection Type(s)
  • (1) RS-232/RS-485 (3-pin terminal)
Port Protocol(s)
  • Do-more protocol
  • Modbus RTU Master/Slave
  • ASCII In/out
  • K-sequence Slave
  • webserver (non-secure HTTP)
  • programming and monitoring
Port Speed(s)
  • up to 115.2k baud
Real Time Clock/CalendarYes
Retentive MemoryYes
Battery BackupYes
Maximum Expansion Modules Allowed8
External Power Requirement120-240 VAC
Number of Discrete Input Points20
Nominal Input Voltage12-24 VAC/VDC
Voltage TypeAC/DC
Discrete Input TypeSinking/sourcing
Number of Isolated Discrete Input Commons5
Number of Points per Discrete Input Common4
Frequency Response250 kHz
Number of Discrete Output Points16
Nominal Output Voltage12-48 VDC/24-240 VAC
Discrete Output TypeRelay
Relay Configuration(16) Form A (SPST) relays
Load Current2A/point
Number of Isolated Discrete Output Commons4
Number of Points per Discrete Output Common4
Maximum Number of PID Loops100+ (configurable to memory limit)
Number of High-Speed Capable Input Points10
High-Speed Counter(s)
  • up to (3) up counters
  • up to (3) down counters
  • up to (3) up/down counters
  • up to (3) pulse/direction (bi-directional) counters
  • up to (3) quadrature (A and B) counters
  • up to (3) quadrature (A and B with Z) counters
Position Scaling
  • up to (3) up counters
  • up to (3) down counters
  • up to (3) up/down counters
  • up to (3) pulse/direction (bi-directional) counters
  • up to (3) quadrature (A and B) counters
  • up to (3) quadrature (A and B with Z) counters
Interval Measurement
  • up to (3) single input (edge) timers
  • up to (3) dual input (dual edge) timers
Duration Measurement
  • up to (3) single input (edge) timers
Frequency Measurement
  • up to (3) single input up counters
  • up to (3) single input down counters
  • up to (3) pulse/direction (bi-directional) counters
  • up to (3) quadrature input (A and B) counters
  • up to (3) quadrature (A and B with Z) counters
  • up to (3) edge timers interval scaling
  • up to (3) dual edge timers interval scaling
Interrupt(s)
  • up to (4) input interrupts
  • up to (4) timer interrupts
  • up to (4) match register interrupts
IncludesBX-RTB03S terminal block and D0-MC-BAT battery
RequiresBX-RTB36 or BX-RTB36-1 terminal block kit or ZIPLink pre-wired cables
Dangerous Goods
  • Battery Installed: Yes
  • Packaging Instructions: 970
  • UN Number: UN3091
  • Hazard Type: Lithium Batteries
  • Battery Type: Button
  • Lithium Content: 0.07
  • Replacement Battery: D0-MC-BAT
  • Generic Battery: CR2032
