BX-DM1E-18ER3

BX-DM1E-18ER3

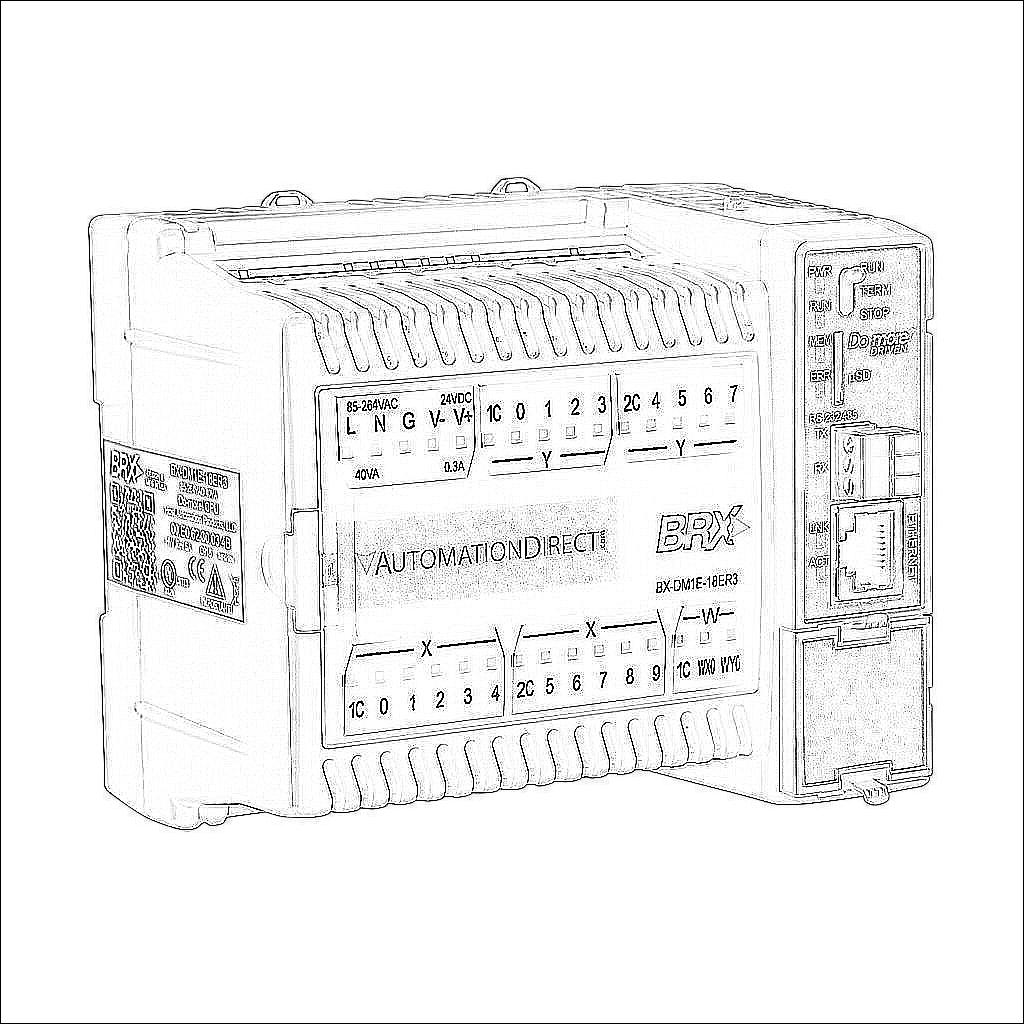

BRX Do-more PLC, 120-240 VAC required, Ethernet and serial ports, battery backup, microSD card slot, Discrete Input: 10-point, AC/DC, Analog Input: 1-channel, current/voltage, Discrete Output: 8-point, relay, Analog Output: 1-channel, current/voltage.

$618.75
/
Technical Data
BrandBRX Do-more
ItemPLC
Total Memory192k words
Ladder Memory64k words
User Data Memory128k words
Removable Media TypeMicroSD card slot
Programming LanguageLadder
Programming SoftwareDo-more Designer programming software v2.0 or later
Communication Port and Connection Type(s)
  • (1) Ethernet 10/100Base-T (RJ45)
  • (1) RS-232/RS-485 (3-pin terminal)
Port Protocol(s)
  • MQTT Client
  • MQTTs Client
  • FTP Client
  • Do-more protocol
  • Modbus RTU Master/Slave
  • Modbus TCP
  • TCP/IP
  • EtherNet/IP explicit messaging scanner/adapter
  • EtherNet/IP implicit messaging scanner/adapter
  • Ethernet remote I/O
  • K-sequence Slave
  • webserver (non-secure HTTP)
  • programming and monitoring
Port Speed(s)
  • 10/100 Mbps
  • up to 115.2k baud
Real Time Clock/CalendarYes
Retentive MemoryYes
Battery BackupYes
Maximum Expansion Modules Allowed8
External Power Requirement120-240 VAC
Number of Discrete Input Points10
Nominal Input Voltage12-24 VAC/VDC
Voltage TypeAC/DC
Discrete Input TypeSinking/sourcing
Number of Isolated Discrete Input Commons2
Number of Points per Discrete Input Common5
Frequency Response250 kHz
Number of Discrete Output Points8
Nominal Output Voltage12-48 VDC/24-240 VAC
Discrete Output TypeRelay
Relay Configuration(8) Form A (SPST) relays
Load Current2A/point
Number of Isolated Discrete Output Commons2
Number of Points per Discrete Output Common4
Number of Analog Input Channels1
Analog Input Signal TypeCurrent/voltage
Number of Non-Isolated Analog Input Commons1
Number of Points per Analog Input Common1
Input Resolution16-bit
Input Current Signal Range4-20 mA and +/- 20 mA
Input Voltage Signal Range0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC
Number of Analog Output Channels1
Analog Output Signal TypeCurrent/voltage
Number of Non-Isolated Analog Output Commons1
Number of Points per Analog Output Common1
Output Resolution16-bit
Output Current Signal Range4-20 mA and +/- 20 mA
Output Voltage Signal Range0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC
Maximum Number of PID Loops100+ (configurable to memory limit)
Number of High-Speed Capable Input Points10
High-Speed Counter(s)
  • up to (3) up counters
  • up to (3) down counters
  • up to (3) up/down counters
  • up to (3) pulse/direction (bi-directional) counters
  • up to (3) quadrature (A and B) counters
  • up to (3) quadrature (A and B with Z) counters
Position Scaling
  • up to (3) up counters
  • up to (3) down counters
  • up to (3) up/down counters
  • up to (3) pulse/direction (bi-directional) counters
  • up to (3) quadrature (A and B) counters
  • up to (3) quadrature (A and B with Z) counters
Interval Measurement
  • up to (3) single input (edge) timers
  • up to (3) dual input (dual edge) timers
Duration Measurement
  • up to (3) single input (edge) timers
Frequency Measurement
  • up to (3) single input up counters
  • up to (3) single input down counters
  • up to (3) pulse/direction (bi-directional) counters
  • up to (3) quadrature input (A and B) counters
  • up to (3) quadrature (A and B with Z) counters
  • up to (3) edge timers interval scaling
  • up to (3) dual edge timers interval scaling
Interrupt(s)
  • up to (4) input interrupts
  • up to (4) timer interrupts
  • up to (4) match register interrupts
IncludesBX-RTB03S terminal block and D0-MC-BAT battery
RequiresBX-RTB18 or BX-RTB18-1 terminal block kit or ZIPLink pre-wired cables
Dangerous Goods
  • Battery Installed: Yes
  • Packaging Instructions: 970
  • UN Number: UN3091
  • Hazard Type: Lithium Batteries
  • Battery Type: Button
  • Lithium Content: 0.07
  • Replacement Battery: D0-MC-BAT
  • Generic Battery: CR2032
