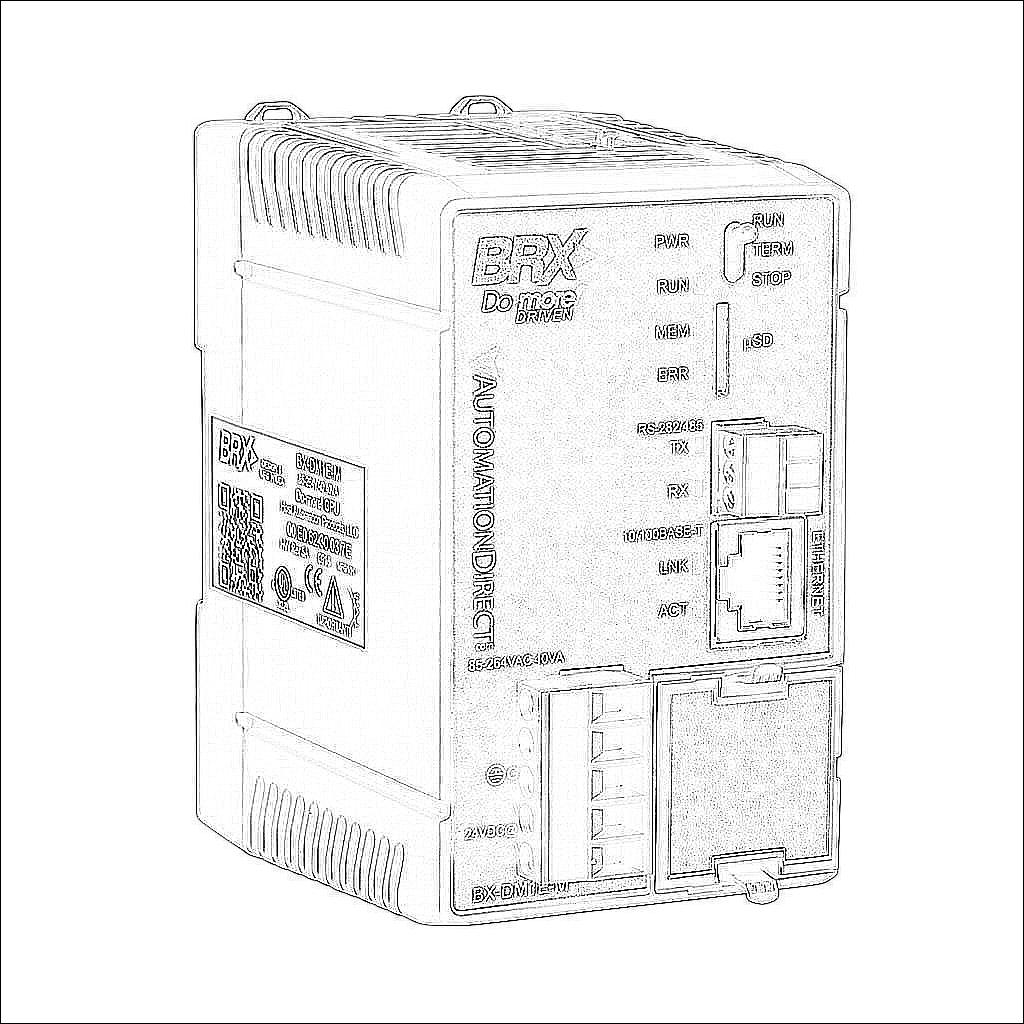

BX-DM1E-M

BRX Do-more PLC, 120-240 VAC required, Ethernet and serial ports, battery backup, microSD card slot, no on-board I/O.

		Technical Data
	Brand	BRX Do-more
	Item	PLC
	Total Memory	192k words
	Ladder Memory	64k words
	User Data Memory	128k words
	Removable Media Type	MicroSD card slot
	Programming Language	Ladder
	Programming Software	Do-more Designer programming software v2.0 or later
	Communication Port and Connection Type(s)	(1) Ethernet 10/100Base-T (RJ45) (1) RS-232/RS-485 (3-pin terminal)
	Port Protocol(s)	MQTT Client MQTTs Client FTP Client Do-more protocol Modbus RTU Master/Slave Modbus TCP TCP/IP EtherNet/IP explicit messaging scanner/adapter EtherNet/IP implicit messaging scanner/adapter Ethernet remote I/O K-sequence Slave webserver (non-secure HTTP) programming and monitoring
	Port Speed(s)	10/100 Mbps up to 115.2k baud
	Real Time Clock/Calendar	Yes
	Retentive Memory	Yes
	Battery Backup	Yes
	Maximum Expansion Modules Allowed	8
	External Power Requirement	120-240 VAC
	Maximum Number of PID Loops	100+ (configurable to memory limit)
	Includes	BX-RTB03S and BX-RTB05 terminal blocks and D0-MC-BAT battery
	Dangerous Goods	Battery Installed: Yes Packaging Instructions: 970 UN Number: UN3091 Hazard Type: Lithium Batteries Battery Type: Button Lithium Content: 0.07 Replacement Battery: D0-MC-BAT Generic Battery: CR2032
