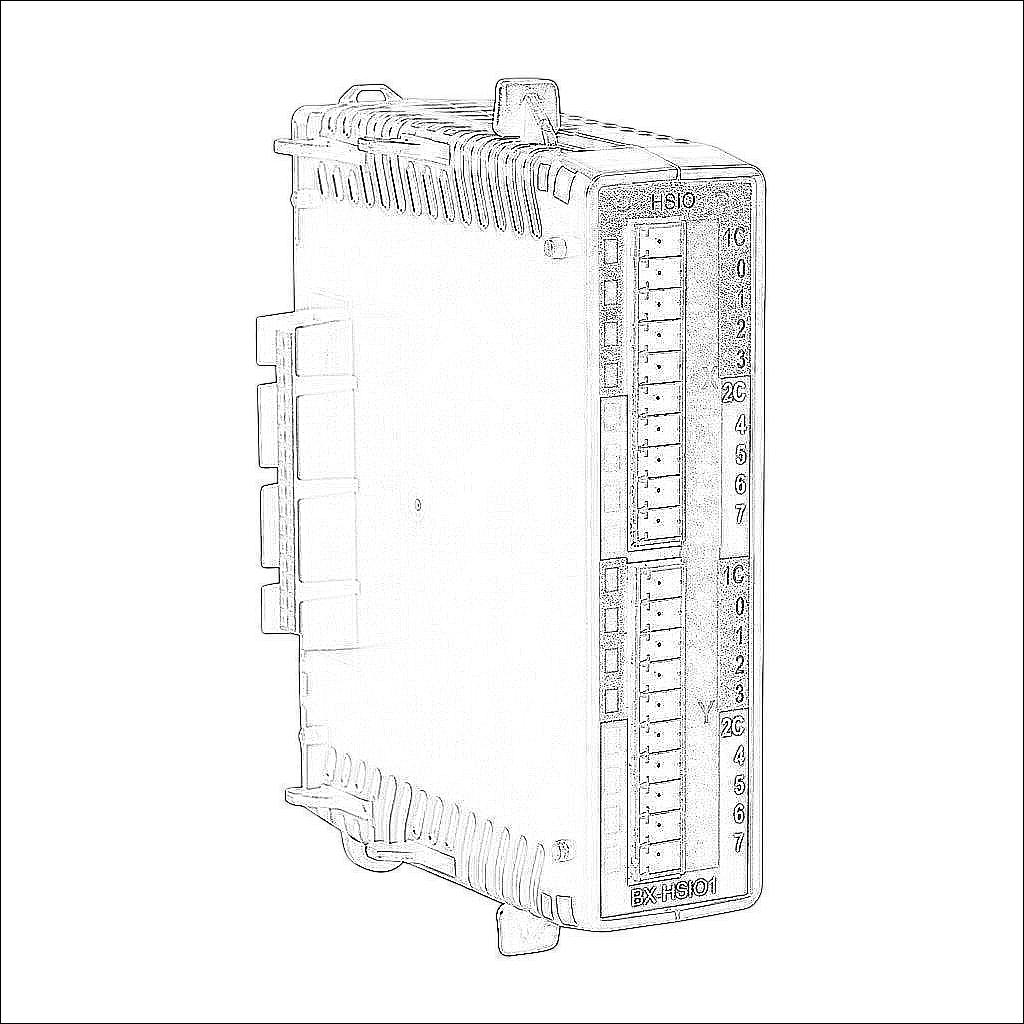

BX-HSIO1

BX-HSIO1

BRX pulse combo module, 250 kHz maximum switching frequency, 8 high-speed input point(s), sinking/sourcing, single-ended encoder input(s), 8 high-speed output point(s), sinking, single-ended output(s).

$302.50
/
Technical Data
BrandBRX
ItemCombo module
I/O Module TypePulse
Maximum Switching Frequency250 kHz
Number of High-Speed Capable Input Points8
Nominal Input Voltage12-24 VDC
Discrete Input TypeSinking/sourcing
Number of Non-Isolated Input Commons2
Number of Isolated Input Commons2
Number of Input Channels8
Encoder Input Type
  • push-pull (totem)
Number of High-Speed Capable Output Points8
Nominal Output Voltage12-24 VDC
Discrete Output TypeSinking
Number of Non-Isolated Output Commons2
Number of Isolated Output Commons2
Load Current0.5A/point
Number of Output Channels8
Pulse Output Channel Type
  • NPN open collector
  • PNP open collector
  • push-pull (totem)
High-Speed Counter(s)
  • up to (4) up counters
  • up to (4) down counters
  • up to (4) up/down counters
  • up to (4) pulse/direction (bi-directional) counters
  • up to (4) quadrature (A and B) counters
  • up to (4) quadrature (A and B with Z) counters
Position Scaling
  • up to (4) up counters
  • up to (4) down counters
  • up to (4) up/down counters
  • up to (4) pulse/direction (bi-directional) counters
  • up to (4) quadrature (A and B) counters
  • up to (4) quadrature (A and B with Z) counters
Interval Measurement
  • up to (4) single input (edge) timers
  • up to (4) dual input (dual edge) timers
Duration Measurement
  • up to (4) single input (edge) timers
Frequency Measurement
  • up to (4) single input up counters
  • up to (4) single input down counters
  • up to (4) pulse/direction (bi-directional) counters
  • up to (4) quadrature input (A and B) counters
  • up to (4) quadrature (A and B with Z) counters
  • up to (4) edge timers interval scaling
  • up to (4) dual edge timers interval scaling
Interrupt(s)
  • up to (4) input interrupts
  • up to (4) timer interrupts
  • up to (4) match register interrupts
Table-Driven Input(s)
  • up to (4) programmable limit switches
  • up to (4) preset tables
Output Pulse Mode(s)
  • up to (4) virtual axes
  • up to (3) PTO linear step/direction outputs
  • up to (3) PTO rotary clockwise/counter-clockwise (CW/CCW) outputs
  • up to (3) PTO quadrature (A and B) outputs
  • up to (4) PWM pulse width modulation outputs
Axis Profile(s)
  • relative/absolute positioning
  • velocity mode
  • trapezoid
  • jerk
  • registration
  • homing
  • jogging
  • electronic gearing
  • camming
  • linear mode
  • rotary mode
  • motion sequence
RequiresBX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit
Programming SoftwareDo-more Designer programming software v2.5 or later
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
