| Technical Data | ||
|---|---|---|
| Brand | Fuji Electric | |

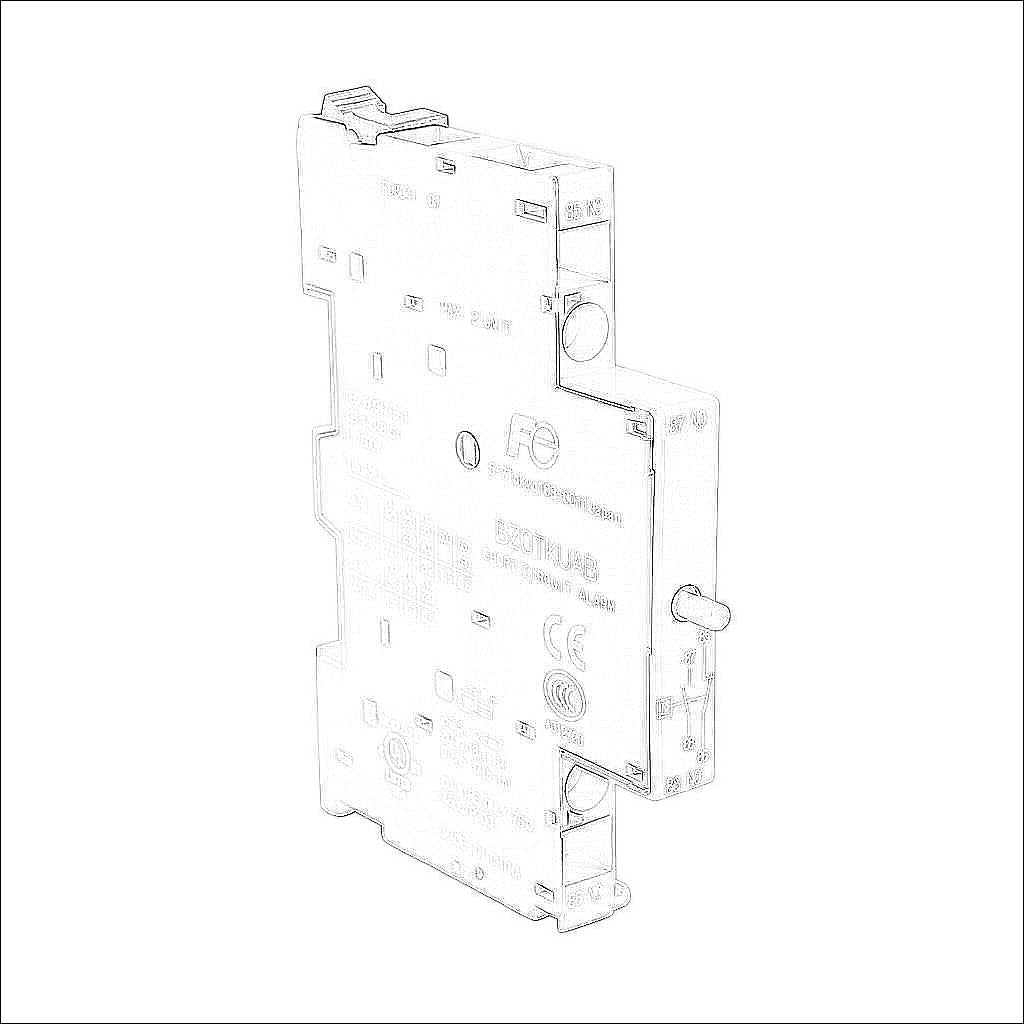

| Item | Short circuit alarm contact | |
| Contact Type | (1) N.O./(1) N.C. | |
| Amperage Rating | 6A @ 120 VAC/1.1A @ 120 VDC | |
| For Use With | BM3R/BM3V series manual motor protector | |
| Additional Information | Both contacts operate ONLY when the MMS trips due to a short circuit. The alarm contact is not linked to the ON/OFF operation. The power to the MMS can be turned ON after pressing the blue reset button on the alarm contact. Required when using the MMS in a UL Type E application | |
