| Technical Data | ||
|---|---|---|

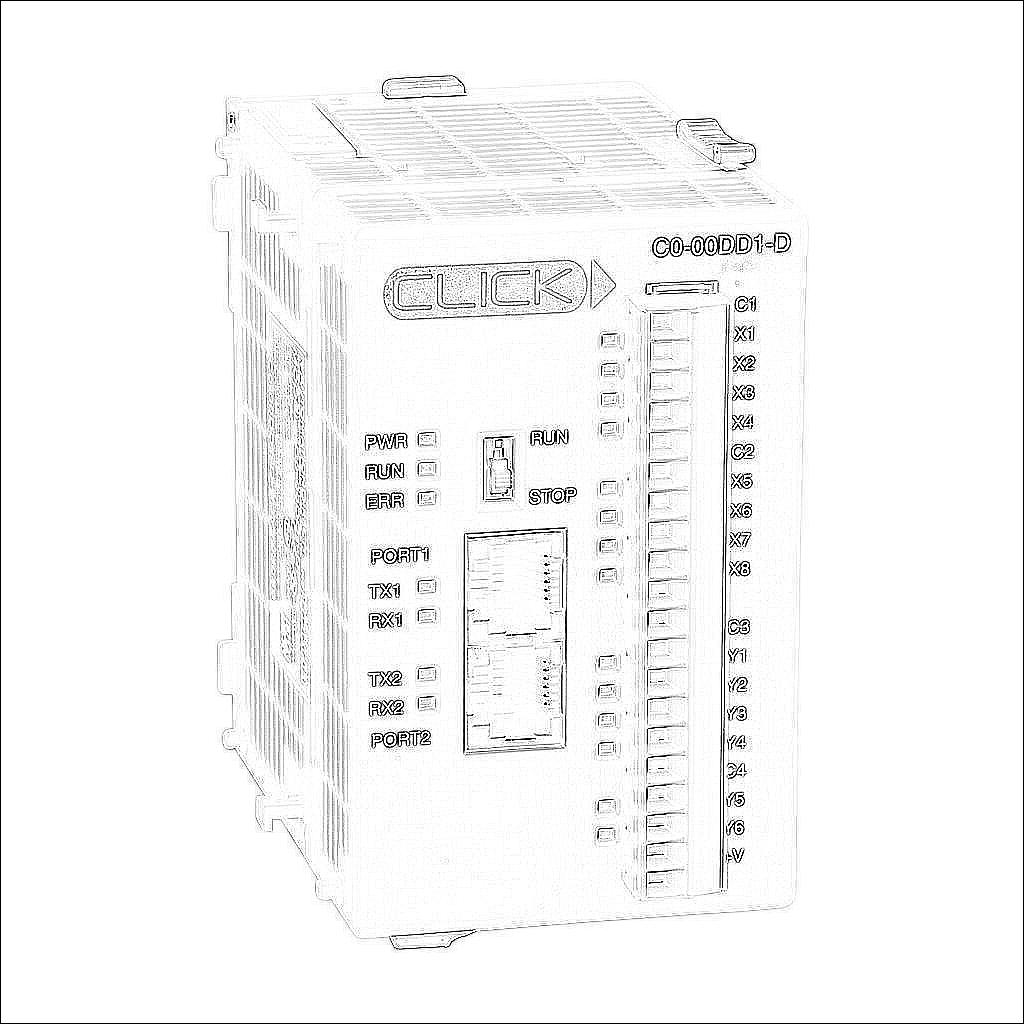

| Brand | CLICK | |
| Item | PLC | |
| Series | Basic | |
| Ladder Memory | 8k steps | |
| User Data Memory | 16 KB | |
| Programming Language | Ladder | |
| Programming Software | CLICK programming software v1.00 or later and CLICK CPU firmware v1.00 or later | |
| Communication Port and Connection Type(s) |
| |
| Port Protocol(s) |
| |
| Port Speed(s) |
| |
| Real Time Clock/Calendar | No | |
| Retentive Memory | No | |
| Battery Backup | No | |
| Maximum Expansion Modules Allowed | 8 | |
| External Power Requirement | 24 VDC | |
| Number of Discrete Input Points | 8 | |
| Nominal Input Voltage | 24 VDC | |
| Voltage Type | DC | |
| Discrete Input Type | Sinking/sourcing | |
| Number of Isolated Discrete Input Commons | 2 | |
| Number of Points per Discrete Input Common | 4 | |
| Number of Discrete Output Points | 6 | |
| Nominal Output Voltage | 5-27 VDC | |
| Discrete Output Type | Sinking | |
| Load Current | 0.1A/point | |
| Number of Isolated Discrete Output Commons | 2 | |
| Number of Points per Discrete Output Common | 4/2 | |
| Includes | Removable terminal block | |
