| Technical Data | ||
|---|---|---|
| Brand | CLICK | |

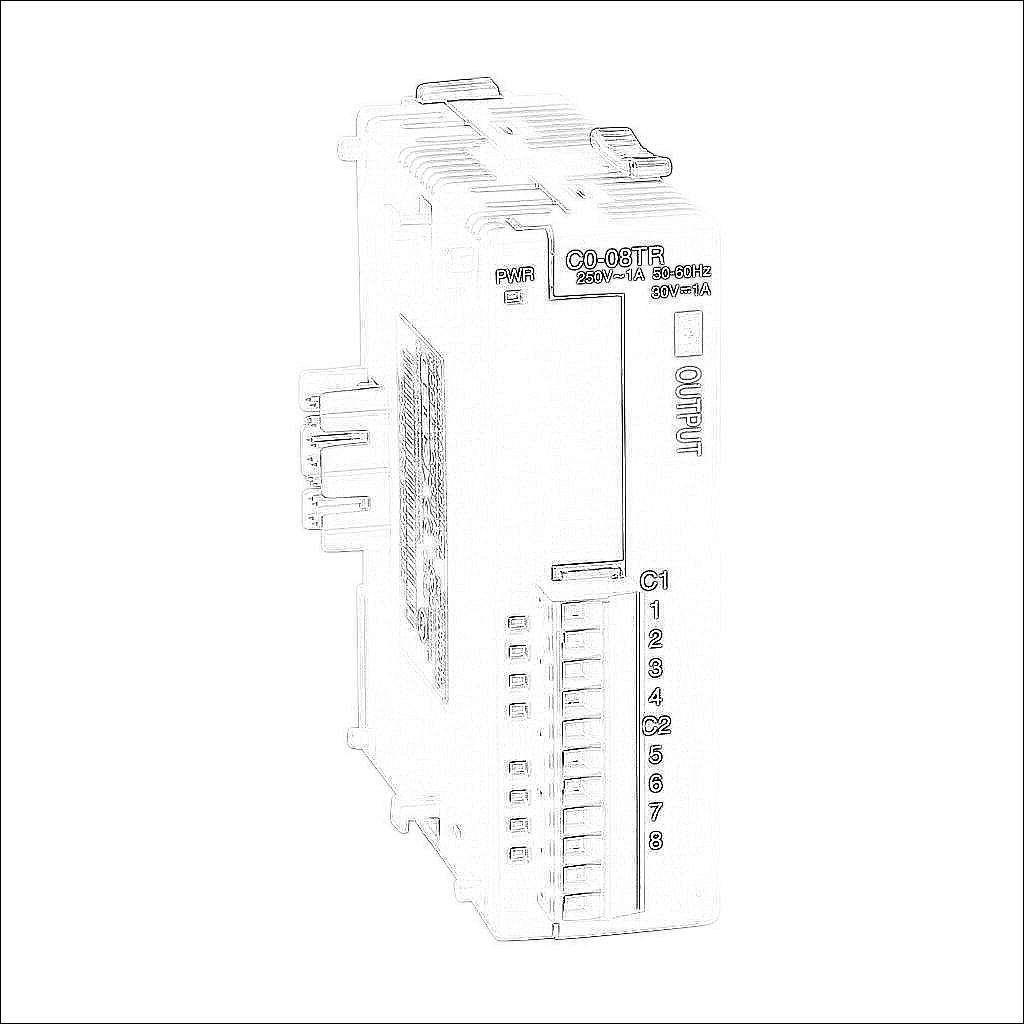

| Item | Output module | |
| I/O Module Type | Relay | |
| Number of Output Points | 8 | |
| Nominal Output Voltage | 6-240 VAC/6-27 VDC | |
| Relay Configuration | (8) Form A (SPST) relays | |
| Number of Isolated Commons | 2 | |
| Jumper Selectable Isolation | No | |
| Number of Points per Common | 4 | |
| Load Current | 1A/point | |
| Fuse Type | User-supplied external fuse | |
| Includes | Removable terminal block | |
| Programming Software | CLICK programming software v1.00 or later and CLICK CPU firmware v1.00 or later | |
