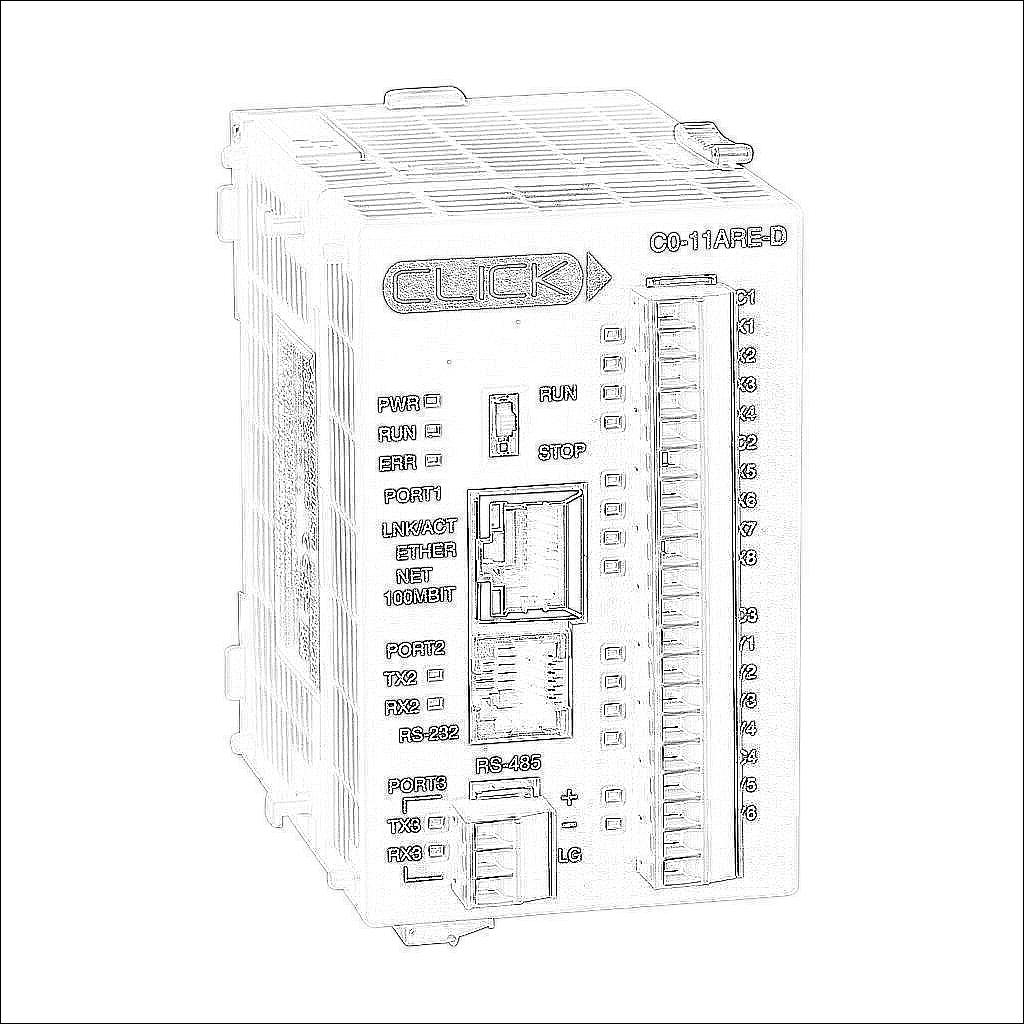

C0-11ARE-D

C0-11ARE-D

CLICK Ethernet Standard PLC, 24 VDC required, Ethernet and serial ports, battery backup, Discrete Input: 8-point, AC, Discrete Output: 6-point, relay.

$308.75
/
Technical Data
BrandCLICK
ItemPLC
SeriesEthernet Standard
Ladder Memory8k steps
User Data Memory16 KB
Programming LanguageLadder
Programming SoftwareCLICK programming software v2.00 or later and CLICK CPU firmware v2.00 or later
Communication Port and Connection Type(s)
  • (1) Ethernet 10/100Base-T (RJ45)
  • (1) RS-232 (RJ12)
  • (1) RS-485 (3-pin terminal)
Port Protocol(s)
  • Modbus TCP Client/Server
  • Modbus RTU Master/Slave
  • ASCII In/out
  • EtherNet/IP explicit messaging adapter
  • EtherNet/IP implicit messaging adapter
  • programming and monitoring
Port Speed(s)
  • 10/100 Mbps
  • up to 115.2k baud
Mobile App EnabledCLICK Remote PLC Android/iOS App
Real Time Clock/CalendarYes
Retentive MemoryYes
Battery BackupYes
Maximum Expansion Modules Allowed8
External Power Requirement24 VDC
Number of Discrete Input Points8
Nominal Input Voltage120 VAC
Voltage TypeAC
Number of Isolated Discrete Input Commons2
Number of Points per Discrete Input Common4
Number of Discrete Output Points6
Nominal Output Voltage6-240 VAC/6-27 VDC
Discrete Output TypeRelay
Relay Configuration(6) Form A (SPST) relays
Load Current1A/point
Number of Isolated Discrete Output Commons2
Number of Points per Discrete Output Common4/2
Maximum Number of PID Loops8
IncludesRemovable terminal block
Additional InformationPurchase D2-BAT-1 backup battery separately
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
