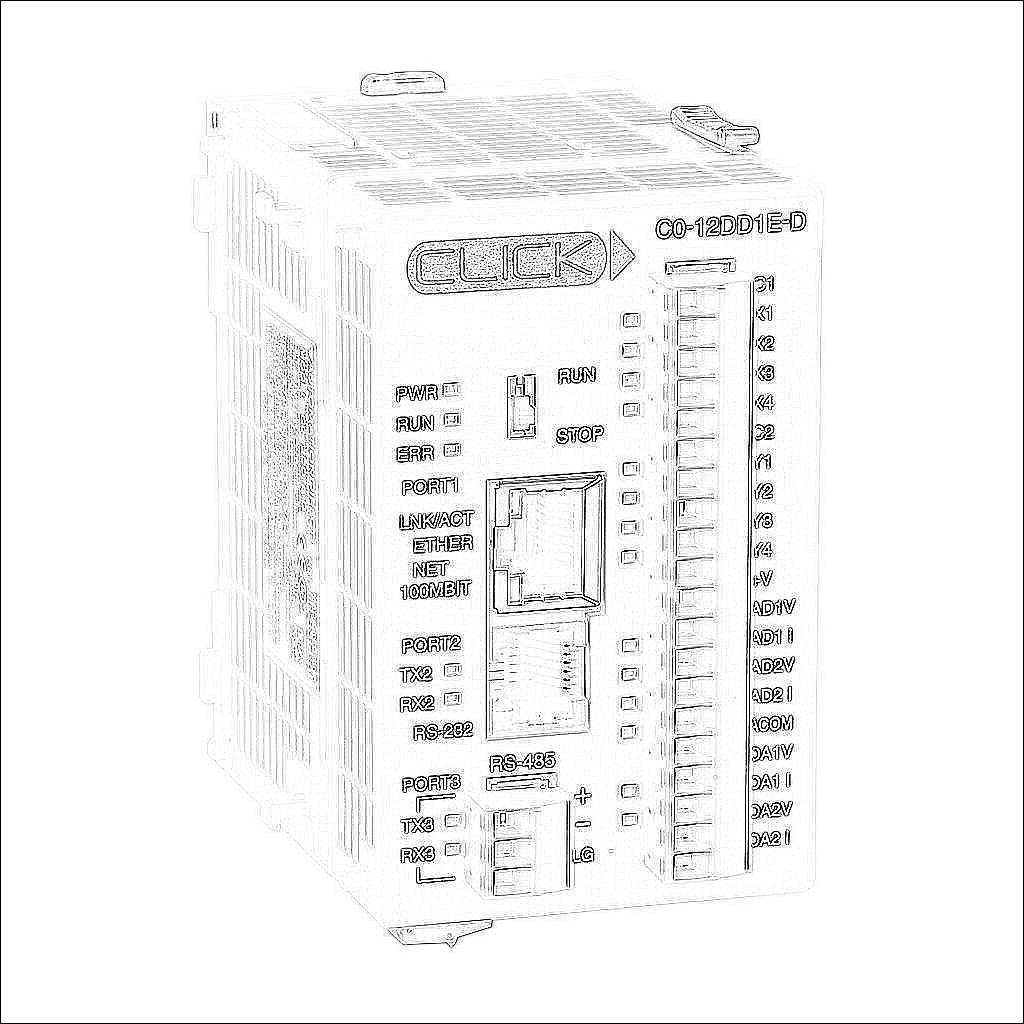

C0-12DD1E-D

C0-12DD1E-D

CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, battery backup, Discrete Input: 4-point, DC, Analog Input: 2-channel, current/voltage, Discrete Output: 4-point, sinking, Analog Output: 2-channel, current/voltage.

$347.50
/
Technical Data
BrandCLICK
ItemPLC
SeriesEthernet Analog
Ladder Memory8k steps
User Data Memory16 KB
Programming LanguageLadder
Programming SoftwareCLICK programming software v2.20 or later and CLICK CPU firmware v2.20 or later
Communication Port and Connection Type(s)
  • (1) Ethernet 10/100Base-T (RJ45)
  • (1) RS-232 (RJ12)
  • (1) RS-485 (3-pin terminal)
Port Protocol(s)
  • Modbus TCP Client/Server
  • Modbus RTU Master/Slave
  • ASCII In/out
  • EtherNet/IP explicit messaging adapter
  • EtherNet/IP implicit messaging adapter
  • programming and monitoring
Port Speed(s)
  • 10/100 Mbps
  • up to 115.2k baud
Mobile App EnabledCLICK Remote PLC Android/iOS App
Real Time Clock/CalendarYes
Retentive MemoryYes
Battery BackupYes
Maximum Expansion Modules Allowed8
External Power Requirement24 VDC
Number of Discrete Input Points4
Nominal Input Voltage24 VDC
Voltage TypeDC
Discrete Input TypeSinking/sourcing
Number of Isolated Discrete Input Commons1
Number of Points per Discrete Input Common4
Number of Discrete Output Points4
Nominal Output Voltage5-27 VDC
Discrete Output TypeSinking
Load Current0.1A/point
Number of Isolated Discrete Output Commons1
Number of Points per Discrete Output Common4
Number of Analog Input Channels2
Analog Input Signal TypeCurrent/voltage
Number of Non-Isolated Analog Input Commons1
Number of Points per Analog Input Common2
Input Resolution12-bit
Input Current Signal Range4-20 mA
Input Voltage Signal Range0-5 VDC
Number of Analog Output Channels2
Analog Output Signal TypeCurrent/voltage
Number of Non-Isolated Analog Output Commons1
Number of Points per Analog Output Common2
Output Resolution12-bit
Output Current Signal Range4-20 mA
Output Voltage Signal Range0-5 VDC
Maximum Number of PID Loops8
Number of High-Speed Capable Input Points4
High-Speed Counter(s)
  • up to (4) up counters
  • up to (4) down counters
  • up to (2) up/down counters
  • up to (2) pulse/direction (bi-directional) counters
  • up to (2) quadrature (A and B) counters
  • up to (1) quadrature (A and B with Z) counter
Interval Measurement
  • up to (4) single input (edge) timers
  • up to (2) dual input (dual edge) timers
Duration Measurement
  • up to (4) single input (edge) timers
Frequency Measurement
  • up to (4) single input up counters
  • up to (2) quadrature input (A and B) counters
Interrupt(s)
  • up to (4) input interrupts
  • up to (4) timer interrupts
Table-Driven Input(s)
  • up to (4) preset tables
IncludesRemovable terminal block
Additional InformationPurchase D2-BAT-1 backup battery separately
