| Technical Data | ||
|---|---|---|
| Brand | AutomationDirect | |

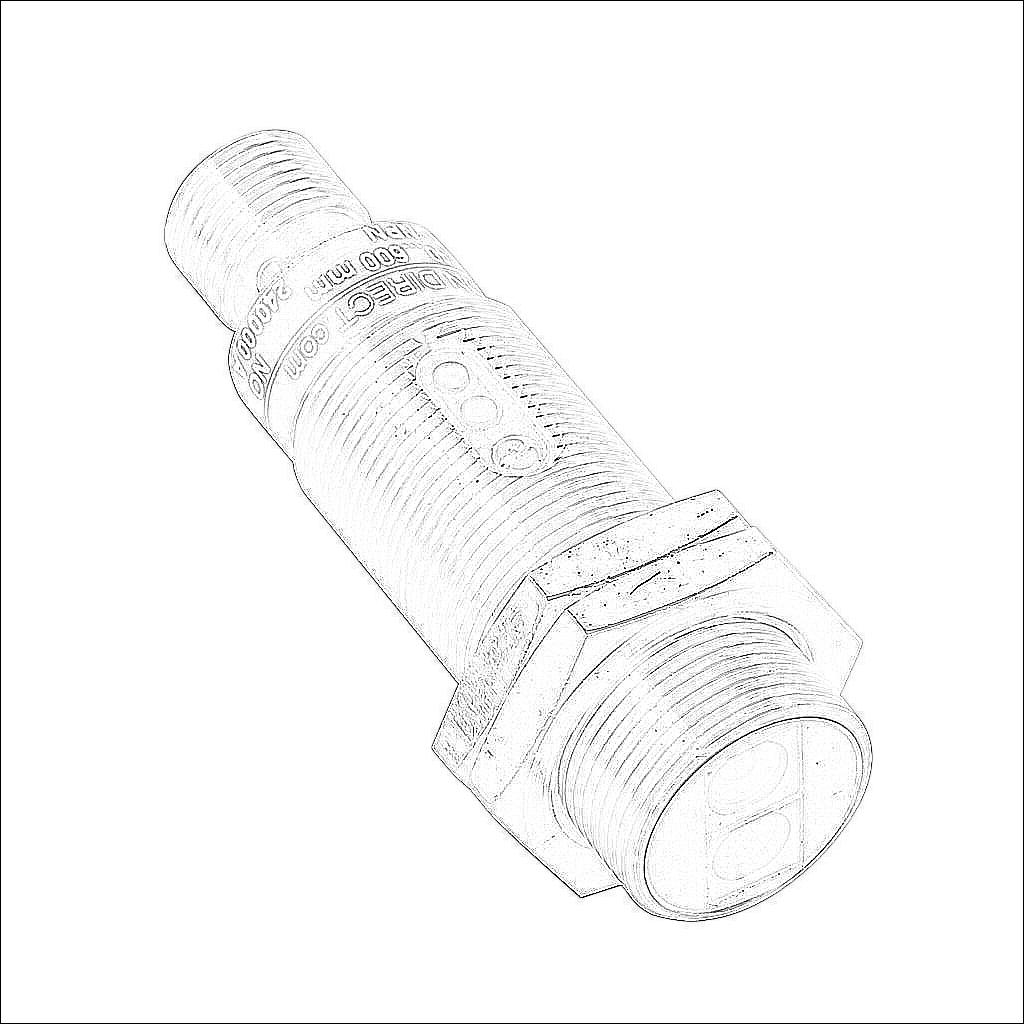

| Item | Photoelectric sensor | |
| Shape | Tubular | |
| Barrel Type | Threaded | |
| Housing Size | 18mm diameter x 50mm body | |
| IP Rating | IP67 | |
| Application | Standard duty | |
| Housing Material | Metal | |
| Sensing Method | Diffuse | |
| Operating Voltage | 10-36 VDC | |
| Number of Wires | 4 | |
| Switching Output | NPN | |
| Sensing Distance | 600mm | |
| Sensitivity | Potentiometer | |
| Operation Mode | Complementary light-on/dark-on | |
| Switching Frequency | 1 kHz | |
| Light Emission | Visible red | |
| Connection | 4-pin M12 quick-disconnect | |
| Includes | Mounting hardware | |
| Additional Information | Purchase cable separately | |
