| Technical Data | ||
|---|---|---|
| Brand | CLICK PLUS | |

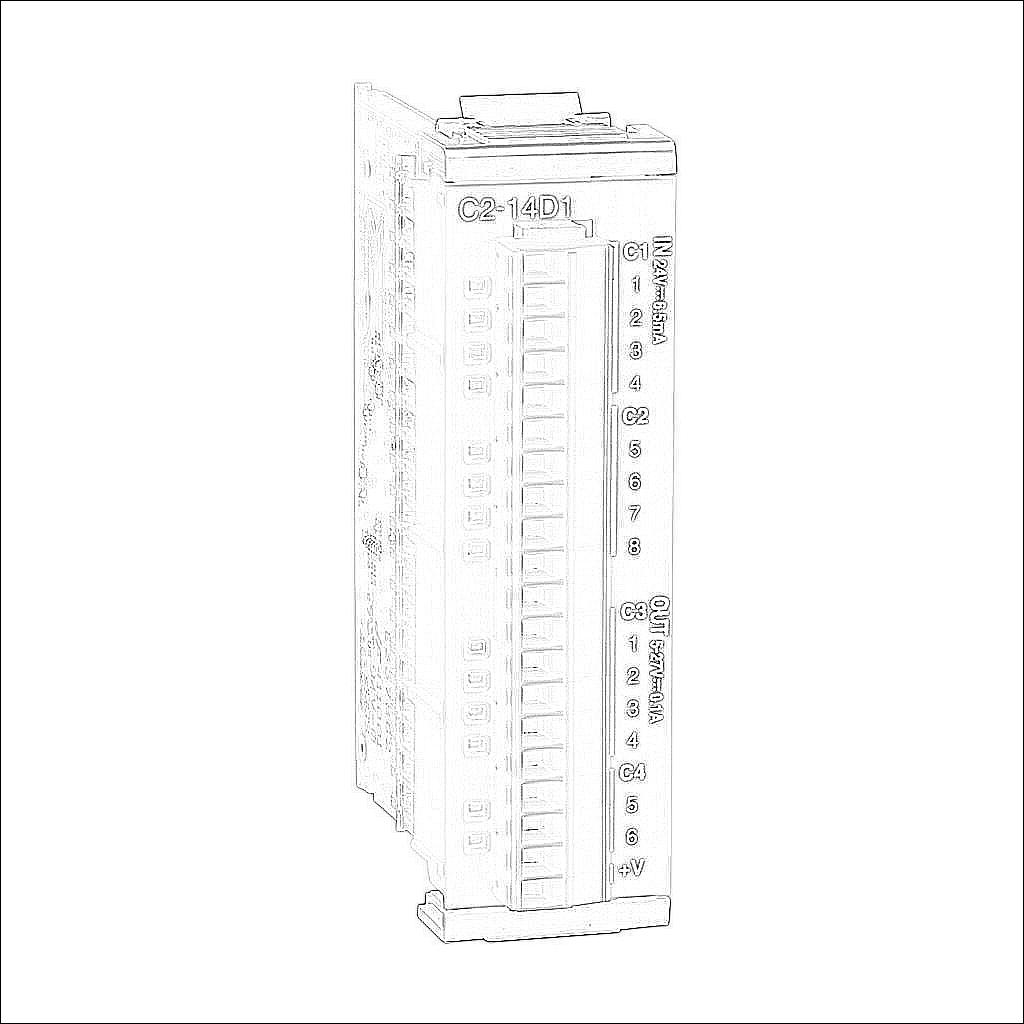

| Item | Combo module | |
| I/O Module Type | Discrete | |
| Number of Input Points | 8 | |
| Nominal Input Voltage | 24 VDC | |
| Discrete Input Type | Sinking/sourcing | |
| Number of Isolated Discrete Input Commons | 2 | |
| Number of Points per Discrete Input Common | 4 | |
| Number of Output Points | 6 | |
| Nominal Output Voltage | 5-27 VDC | |
| Discrete Output Type | Sinking | |
| Number of Isolated Discrete Output Commons | 2 | |
| Number of Points per Discrete Output Common | 4/2 | |
| Load Current | 0.1A/point | |
| Fuse Type | User-supplied external fuse | |
| Number of High-Speed Capable Input Points | 8 | |
| High-Speed Counter(s) |
| |
| Interval Measurement |
| |
| Duration Measurement |
| |
| Frequency Measurement |
| |
| Interrupt(s) |
| |
| Table-Driven Input(s) |
| |
| Maximum Switching Frequency | 100 kHz | |
| Number of High-Speed Capable Output Points | 3 | |
| Number of Output Channels | 3 | |
| Pulse Output Channel Type |
| |
| Output Pulse Mode(s) |
| |
| Axis Profile(s) |
| |
| Includes | Removable terminal block | |
| Programming Software | CLICK programming software v3.3 or later and CLICK CPU firmware v3.3 or later | |
