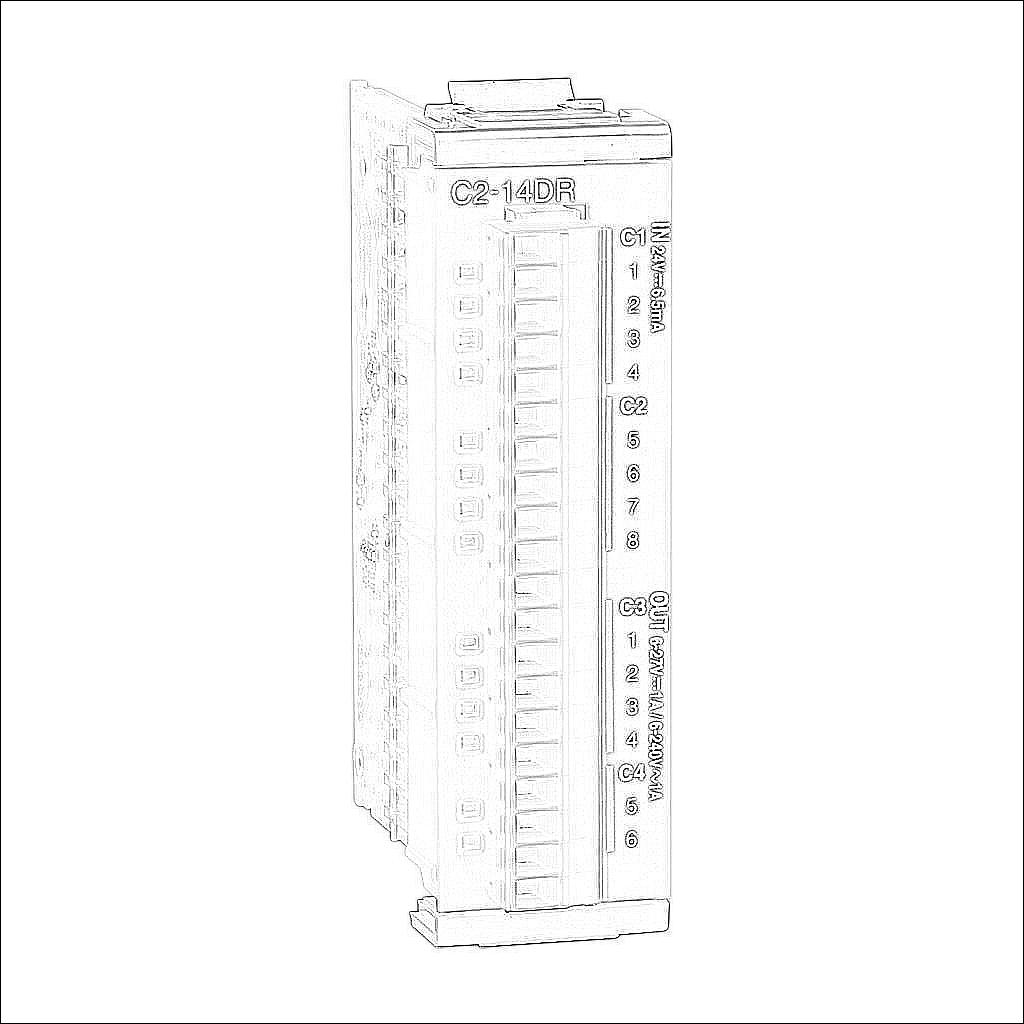

C2-14DR

C2-14DR

CLICK PLUS discrete combo module, Input: 8-point, 24 VDC, sinking/sourcing, Output: 6-point, 6-240 VAC/6-27 VDC, relay, (6) Form A (SPST) relays, 1A/point. Removable terminal block included.

$95
/
Technical Data
BrandCLICK PLUS
ItemCombo module
I/O Module TypeDiscrete
Number of Input Points8
Nominal Input Voltage24 VDC
Discrete Input TypeSinking/sourcing
Number of Isolated Discrete Input Commons2
Number of Points per Discrete Input Common4
Number of Output Points6
Nominal Output Voltage6-240 VAC/6-27 VDC
Discrete Output TypeRelay
Relay Configuration(6) Form A (SPST) relays
Number of Isolated Discrete Output Commons2
Number of Points per Discrete Output Common4/2
Load Current1A/point
Fuse TypeUser-supplied external fuse
Number of High-Speed Capable Input Points8
High-Speed Counter(s)
  • up to (6) up counters
  • up to (6) down counters
  • up to (3) up/down counters
  • up to (4) pulse/direction (bi-directional) counters
  • up to (4) quadrature (A and B) counters
  • up to (2) quadrature (A and B with Z) counters
Interval Measurement
  • up to (6) single input (edge) timers
  • up to (3) dual input (dual edge) timers
Duration Measurement
  • up to (6) single input (edge) timers
Frequency Measurement
  • up to (6) single input up counters
  • up to (4) quadrature input (A and B) counters
Interrupt(s)
  • up to (8) input interrupts
  • up to (4) timer interrupts
Table-Driven Input(s)
  • up to (6) preset tables
IncludesRemovable terminal block
Programming SoftwareCLICK programming software v3.0 or later and CLICK CPU firmware v3.0 or later
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
