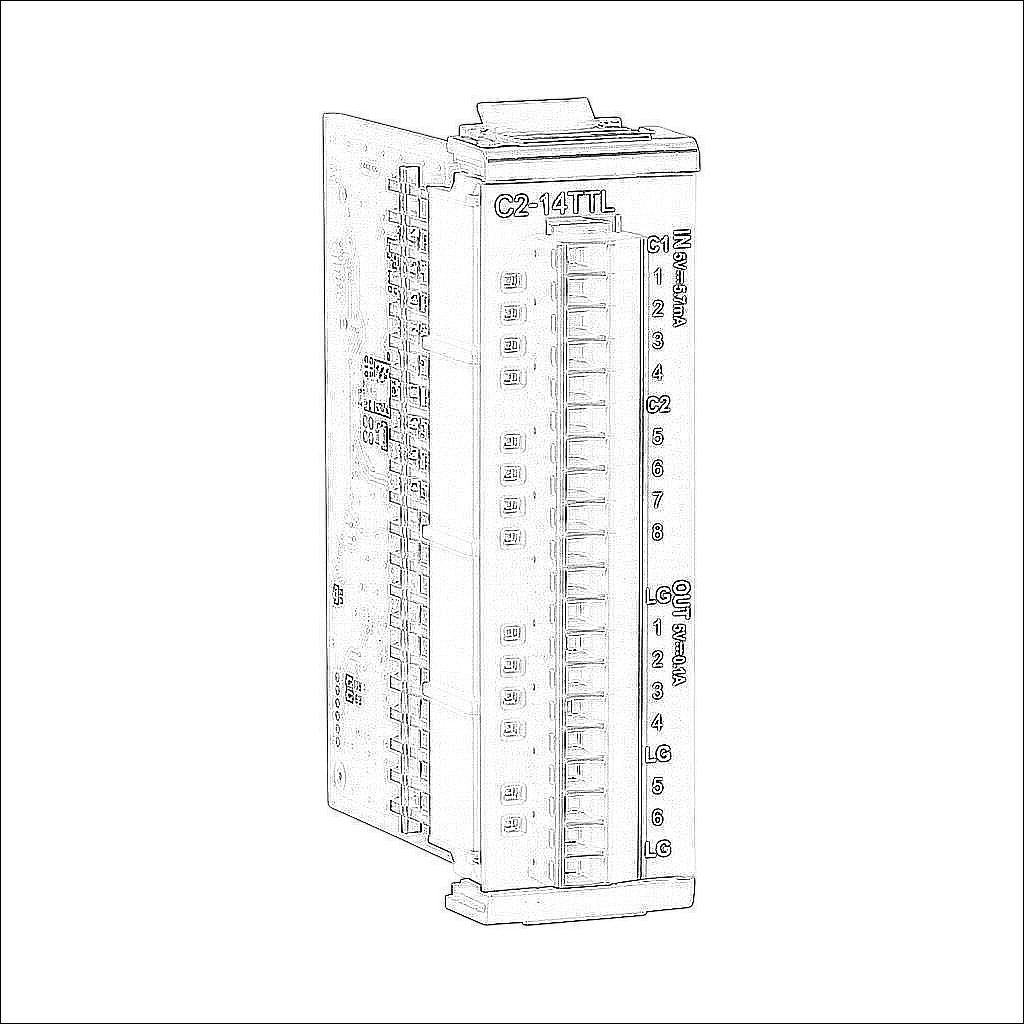

C2-14TTL

C2-14TTL

CLICK PLUS discrete combo module, Input: 8-point, 4.5-5.5 VDC, sinking/sourcing/TTL, Output: 6-point, 4.5-5.5 VDC, sourcing/TTL, 0.1A/point. Removable terminal block included.

$87.50
/
Technical Data
BrandCLICK PLUS
ItemCombo module
I/O Module TypeDiscrete
Number of Input Points8
Nominal Input Voltage4.5-5.5 VDC
Discrete Input TypeSinking/sourcing/TTL
Number of Isolated Discrete Input Commons2
Number of Points per Discrete Input Common4
Number of Output Points6
Nominal Output Voltage4.5-5.5 VDC
Discrete Output TypeSourcing/TTL
Number of Non-Isolated Discrete Output Commons3
Number of Points per Discrete Output Common6/3
Load Current0.1A/point
Number of High-Speed Capable Input Points8
High-Speed Counter(s)
  • up to (6) up counters
  • up to (6) down counters
  • up to (3) up/down counters
  • up to (4) pulse/direction (bi-directional) counters
  • up to (4) quadrature (A and B) counters
  • up to (2) quadrature (A and B with Z) counters
Position Scaling
  • up to (6) up counters
  • up to (6) down counters
  • up to (3) up/down counters
  • up to (4) pulse/direction (bi-directional) counters
  • up to (4) quadrature (A and B) counters
  • up to (2) quadrature (A and B with Z) counters
Interval Measurement
  • up to (6) single input (edge) timers
  • up to (3) dual input (dual edge) timers
Duration Measurement
  • up to (6) single input (edge) timers
Frequency Measurement
  • up to (6) single input up counters
  • up to (4) quadrature input (A and B) counters
Interrupt(s)
  • up to (8) input interrupts
Table-Driven Input(s)
  • up to (6) preset tables
Maximum Switching Frequency100 kHz
Number of High-Speed Capable Output Points3
Pulse Output Channel Type
  • PNP
Output Pulse Mode(s)
  • up to (3) virtual axes
  • up to (3) PTO linear step/direction outputs
  • up to (3) PWM pulse width modulation outputs
Axis Profile(s)
  • relative/absolute positioning
  • multi-axis interpolation
  • velocity mode
  • trapezoid
  • S-curve
  • registration
  • homing
  • jogging
  • linear mode
IncludesRemovable terminal block
Programming SoftwareCLICK programming software v3.7 or later and CLICK CPU firmware v3.7 or later
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
